Summary of Contents for BioZone Scientific International CoilCare Series

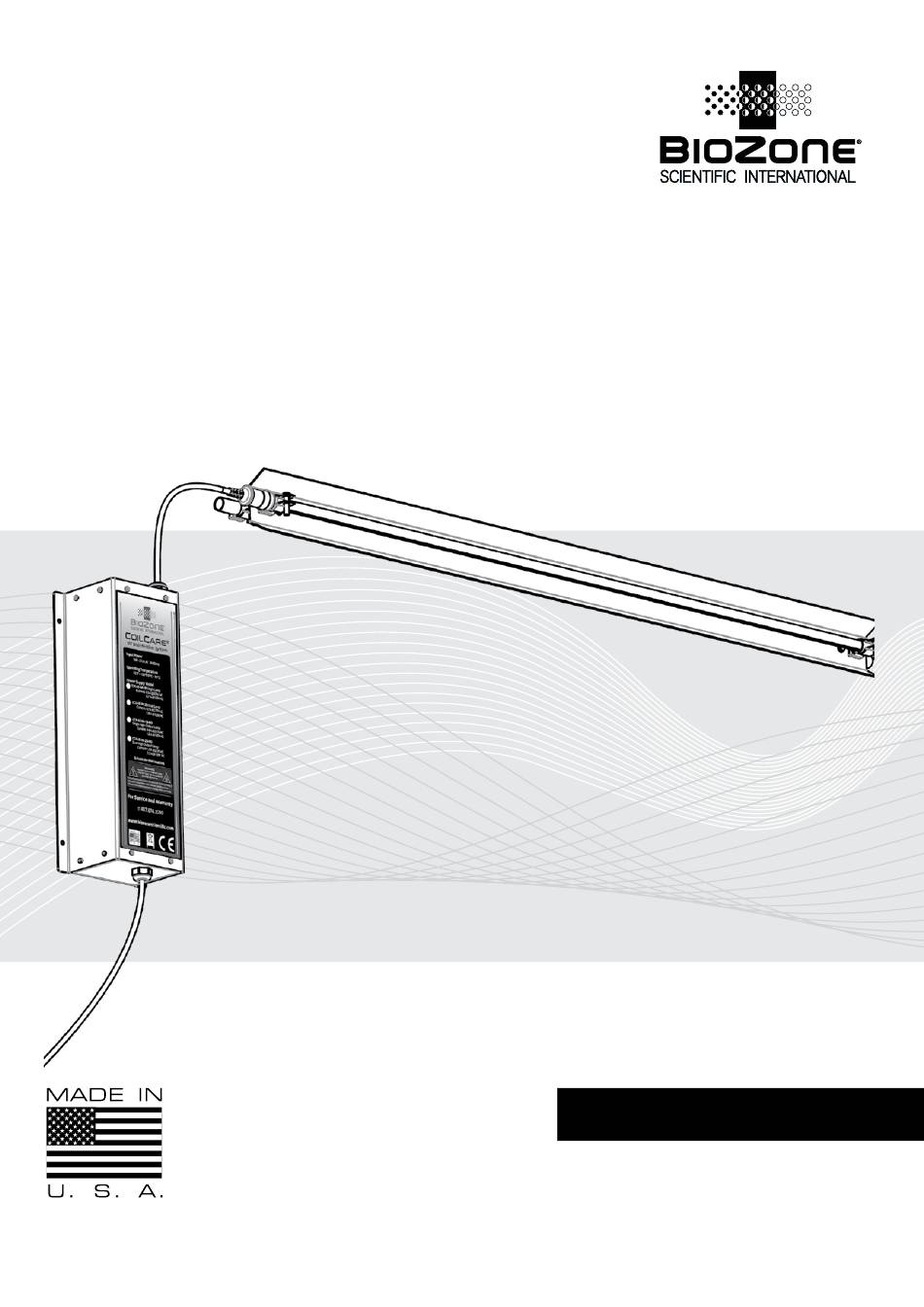

- Page 1 COILCARE © Installation Instructions and Operating Manual CoilCare Series © 2017 BioZone Scientific International, Inc. 81200012B...
- Page 2 Thank you for purchasing BioZone Scientific’s CoilCare ultraviolet light germicidal irradiation ® disinfection system for commercial HVAC applications. CoilCare can keep HVAC evaporator coils clear of contamination and biofilm, allowing significant savings in maintenance and energy costs, while improving indoor air quality. CoilCare works by irradiating coil surfaces in germicidal ultraviolet light.
-
Page 3: System Configuration Guidelines
SYSTEM CONFIGURATION GUIDELINES Determine the dimensions of the evaporator coils or area to be treated. Use the guidelines below to select the proper configuration and number of lamps needed to treat the required dimensions. CoilCare Configuration Guidelines Maximum germicidal effectiveness is within an 18in [457mm] radius from lamp •... -
Page 4: Installation Instructions
Recommendations for Effective CoilCare Installations • Air Velocity: 400-500 fpm [2-2.5m/s] maximum • Air Temperature: 40°F – 110°F maximum [4°C – 43°C] • Lamp Distance from Coil: 6in – 48in [152mm – 1219mm] • Electrical Wiring: compliant with local and national code, UL/ETL standards •... - Page 5 INSTALLATION INSTRUCTIONS Optional vertical support adds strength to the tube framing and prevents sagging on installations with two or more lamps per tubing length. Measure the distance from floor to ceiling and cut tubing 7/8” less than floor to ceiling height.
- Page 6 INSTALLATION INSTRUCTIONS Install the UV Lamps Do not touch the glass portions of UV lamps with bare hands. The use of gloves is recommended when handling UV lamps. Wipe UV lamp with isopropyl alcohol as needed to clean glass. Place UV lamps into the lamp clips. Be sure to clamp only on the ceramic lamp bases at each end.
- Page 7 INSTALLATION INSTRUCTIONS Mount Power Supply (continued) Use the supplied self-tapping sheet metal screws to mount the power supply in place through the mounting holes on the sides of the base. It is recommended to use junction boxes, our optional 3/4” or 1” cable strain relief, or other sealing methods in order to pass the power cord and lamp cables between the interior of the air handler and exterior for connections, as needed.
-
Page 8: Safety Components
INSTALLATION INSTRUCTIONS Safety Components Install Sight Glass The sight glass allows safe viewing of the UV light system when in operation to verify system operational status. Find a suitable location such as a door or access panel to the HVAC system for the sight glass. -
Page 9: Operation And Maintenance
OPERATION AND MAINTENANCE Install an Interlock Switch Per ASHRAE, the use of Optional Door Interlock Switch(es) is highly recommended to prevent accidental exposure to UV Light. The door interlock switch is installed in the electrical circuit between the main supply and the CoilCare power supply. Interlock switches are mounted on the access panels and doors so the CoilCare system is de-energized and the UV lights turn off when the panel/door is opened. -
Page 10: Lamp Replacement
Lamp Replacement BioZone Scientific lamps are rated for up Part Number Part Details to two years of germicidal effectiveness CCX-10-H64000-1 1554mm lamp High Output, 1 Year on CoilCare systems. The lamps will CCX-10-H48000-1 1148mm lamp High Output, 1 Year continue to illuminate with a blue glow CCX-10-H36000-1 842mm lamp High Output, 1 Year after they have exceeded their rated... -
Page 11: Warranty
This warranty does not cover parts or equipment used with the BioZone system that are not manufactured by BioZone Scientific International, Inc. **This warranty shall be void if UV lamps from manufacturer’s other than BioZone Scientific International, Inc. are used with this equip- ment. -
Page 12: Glossary Of Terms
DNA, leaving them unable to perform vital cellular func- tions. UVGI is used in a variety of applications, such as food, air, and water purification. 7616 Southland Blvd., Suite 114, Orlando FL 32809 USA Tel.: +1.407.876.2000 ● Fax: +1.407.876.7630 ccx@biozonescientific.com ● www.biozonescientific.com © 2017 BioZone Scientific International 81200012B...
