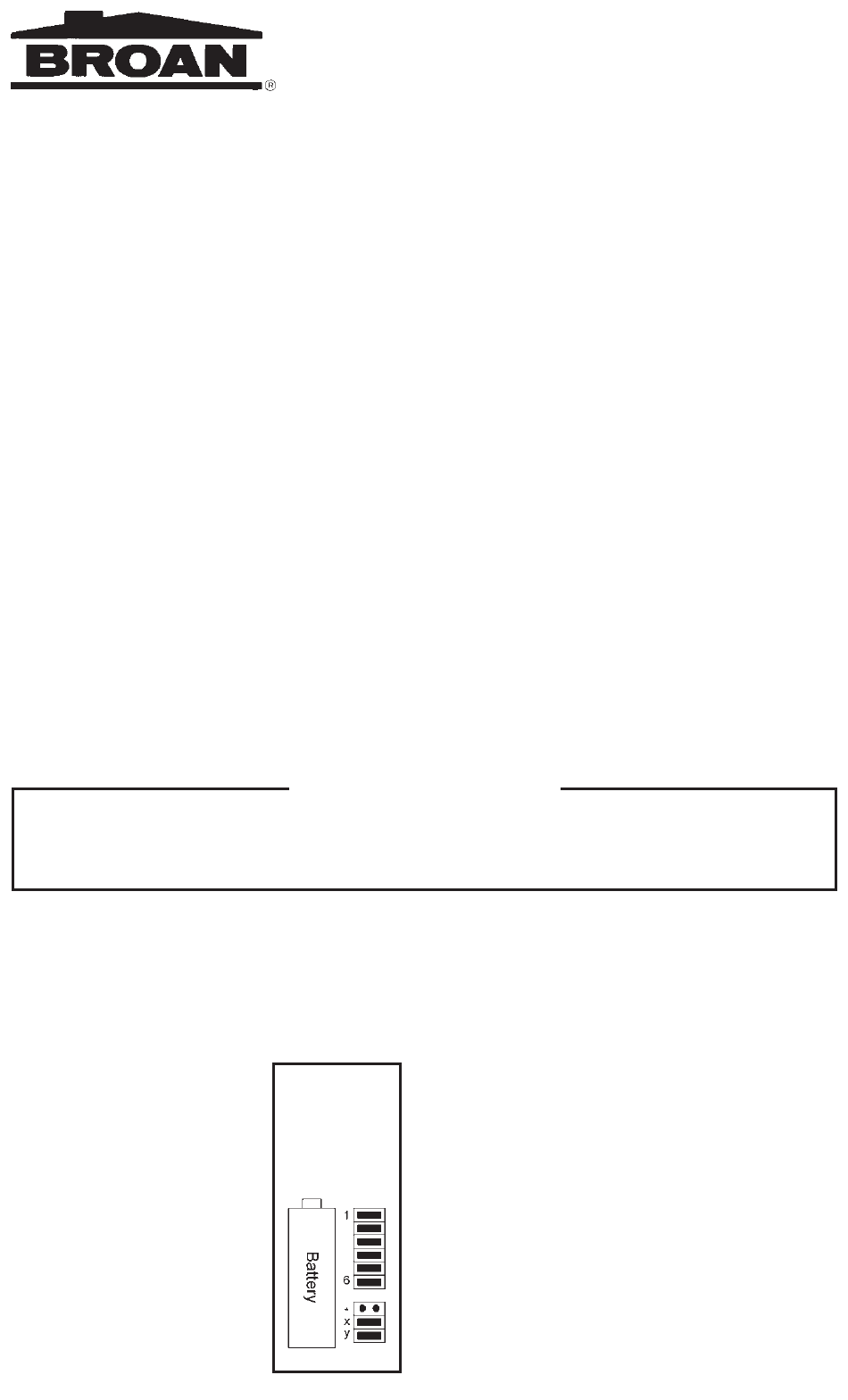

Wireless Door Chime
Model RC520

PRODUCT FEATURES

• Channels are selectable to allow more than one door chime set in same
building.
• Sounds different tunes for front, second, and third doors.
• Accessory buttons available for second and third doors.

QUICK START

1. Insert battery into button.
2. Insert (3)"AA" batteries (sold separately) into chime receiver.
3. Place Chime where you would like it.
4. Hold button where you would like to mount it. Push button and if chime works,
mount button. If not, read details that follow.

INSTALLATION

The user is cautioned that changes or modifications not expressly approved
by the party responsible for regulatory compliance could void the user's
authority to operate this equipment.
1. Open the chime button case by in-
serting a flat blade screwdriver into
the notch on the bottom and push
to open. Lift the front of the button
up and away from the back.
2. Insert the A23 bat-
tery into the button.
The + side of the
battery goes up.
3. Insert (3)"AA" bat-
teries into chime re-
ceiver. Test opera-
tion by pressing
button.
Regulatory Information
If chime doesn't operate, see trouble-
shooting section.
Before mounting the button outside,
hold it where you wish it to be and test
the operation. If it works, mount it there.
If it doesn't work, see the troubleshoot-
ing section. If mounting to a metallic or
Chime
concrete surface, use a 1/8" to 1/4"
Button
wood spacer between the back of the
button and the surface to increase the
range.
+
Wireless chime range can vary from 20
to 125 feet depending on the construc-
tion of the building. Wood or vinyl sid-
ing are ideal. Steel, aluminum, brick or
stucco decrease the range.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Broan RC520

  • Page 1: Product Features

    Wireless Door Chime Model RC520 PRODUCT FEATURES • Channels are selectable to allow more than one door chime set in same building. • Sounds different tunes for front, second, and third doors. • Accessory buttons available for second and third doors.
  • Page 2 Put jumpers on pins X Open button case (see step #1). and Y for Westminster Replace with one 12 volt alkaline type chime. A23 (Broan Model RCA23) or MN21 battery. Close button case. Put jumpers on pins * and Y for 2-note “ding- dong”.
  • Page 3 FREQUENCY ADDITIONAL CODES DOOR CHIMES If you are adding a second chime re- When installing other wireless Door ceiver to another area of the same resi- Chime sets, remember to set frequency dence, make sure the frequency codes codes to different settings to avoid in- on the additional receivers are set the terference.
  • Page 4: Troubleshooting

    This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone 1-800-637-1453, (b) give the model number and part identification and (c) Describe the nature of any defect in the product or part.
