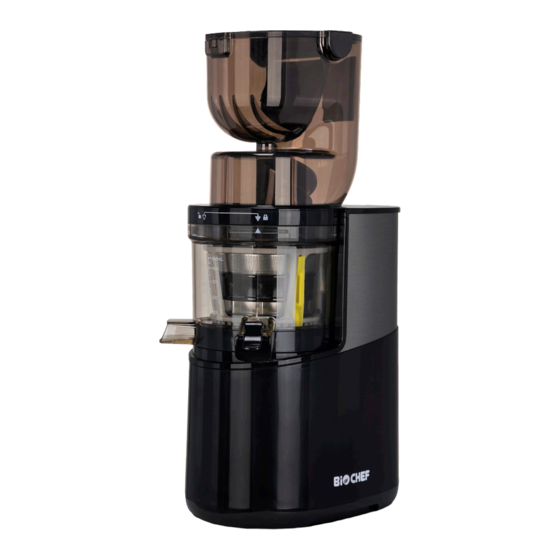

Bio Chef Atlas Pro User Manual And Recipe Book

Whole slow juicer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Atlas Pro

Whole Slow Juicer

USER MANUAL AND RECIPES

Table of Contents

Need help?

Do you have a question about the Atlas Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Bio Chef Atlas Pro

Page 1 Atlas Pro Whole Slow Juicer USER MANUAL AND RECIPES...
Page 2 ENGLISH 3 FRANÇAIS 21 DEUTSCH 41 ESPAÑOL 61 The information in this manual is intended to help you to get the best results from your BioChef Atlas Pro Whole Slow Juicer. Please read and follow these instructions and safeguards prior to use. Please keep your manual handy for future reference, warranty information and support details...
Page 3: Table Of Contents
Contents Safety Precautions and Instructions Parts and Accessories Assembly Instructions Operating Instructions Troubleshooting FAQs Cleaning Recipes Warranty...
Page 4: Safety Precautions And Instructions
Safety Precautions Read all instructions. To protect against risk of electrical shock, do not put the body (motor) in water or any other liquid . Close supervision is necessary when any appliance is used by children. Unplug from electrical outlet when not in use and before disassembly for cleaning.
Page 5: Parts And Accessories
Parts and Accessories 1 Hopper and 4 Extra fine, Coarse 8 Silicone Cover Feeding Chute & Sorbet Strainer 9 Pulp Container 2 Bowl (drum) 5 Spinning Basket 10 Juice Container 3 Motor Base 6 Auger 11 Cleaning Brush & 7 Tamper Fine Cleaning Brush...
Page 6: Assembly Instructions
Assembly Instructions Step 1 Step 2 Step 3 If a silicone cover is not Ensure the yellow pulp Place the desired strainer already fitted, place one plug at the base of the into the spinning basket over spindle as shown. bowl has been inserted and then place these into firmly into the outlet.
Page 7: Operating Instructions
Operating Instructions Press the power switch into the ON position. Ensure that the safety switch is unlocked and tap the door to open. Then push your larger round ingredients into the chute allowing it to fall towards the auger. Insert other ingredients into the smaller feeding chute individually.
Page 8 JUICE OUTLET CAP Close the juice outlet cap to mix your juice inside your juicer. Open the juice outlet cap to dispense as required into the juice container. CARING FOR THE SILICONE PULP PLUG It is important to ensure that the pulp plug is always closed before juicing. When you are cleaning the juicing drum (bowl) gently unplug the seal and rinse under water.
Page 9: Troubleshooting
If the alignment shifts during operation the juicer will stop. 3. Turn your juicer off, reset the hopper and you should be able to continue. : The BioChef Atlas Pro Whole Slow PLEASE NOTE Juicer has an automatic motor cut off safety feature that will activate if the juicer is overloaded. This has been designed to help prevent accidental damage and to help extend the life of the machine.
Page 10 The hopper opens in an anti-clockwise way. If the will not open hopper will not open easily, try the following: 1. Allow your BioChef Atlas Pro Whole Slow Juicer to run without adding more ingredients before turning off and attempting to remove the hopper. 2. Switch your juicer into reverse for a few moments to help dislodge any remaining ingredients around the auger and feeding chute of the hopper.
Page 11 My juice is a 1. Make sure the yellow silicone plug is fully inserted little pulpy, into its slot. This part is removable to assist with how can I fix cleaning but is often not reinserted correctly. It this? acts as a pressure point to ensure that the pulp is ejected from the pulp tube.
Page 12: Faqs
What’s the best way to prepare mechanism. For best results cut your fruits, vegetables and leafy greens ingredient into 3 - 5cm pieces. for juicing in the Biochef Atlas Pro? What are the best apples for juicing? VEGETABLES We find that fresh and chilled green We recommend preparing your apples are the best.
Page 13 Is the Biochef Atlas Pro suitable for • dried herbs and spices commercial environments? • stone fruit with stones in Yes! The Atlas Pro can run for up to • olives 60 minutes continuously. Effectively, you can make up to 40L of juice per Can I make soy, nut and rice milk? hour (apples tested).
Page 14: Cleaning
Cleaning The BioChef Atlas Pro parts are dishwasher-safe (top shelf). For best results, rinse prior to placing into the dishwasher to remove any stubborn fibres. You can rinse your juicer easily after use by closing the juice outlet cap, and running water through the juicer. Simply open the juice outlet cap to flush the water through. If hand-washing simply rinse under water, and use the desired cleaning brush to scrub any tough fibres. If you are in a hurry, simply leave the parts soaking...
Page 15: Recipes
Recipes View our complete recipe collection online www.biochef.kitchen/recipes...
Page 16 Green Juice Ginger Zinger Servings: 4 • 1 small bunch curly kale roughly Servings: 3 chopped • 2 medium apples • 1 lemon peeled and quartered • 5 carrots • 1 inch ginger peeled • ½ inch fresh ginger • 1 cucumber cut into long strips •...
Page 17 Immune Savoury Booster Gazpacho Servings: 1 cup Servings: 1 - 2 • 1-3 cloves of garlic • 4 ripened plum tomatoes • 1 inch fresh ginger • 1 large cucumber • 1 bunch of rainbow carrots (can • 2 stalks celery substitute for any carrots), tops •...
Page 18 Sorbets Soy, Rice & Nut Milks Assemble the juicer using the sorbet strainer. We recommend allowing Soak soybeans, rice and/or nuts your frozen ingredients to thaw for in filtered water for a minimum of 5-10 minutes before feeding them 8 hours, water should cover them into the juicer chute for best results completely.
Page 19: Warranty
Immediately report this type 1. If the BiocChef Atlas Pro Whole Slow Juicer exhibits a of damage to the parcel carrier and have them file an defect while in normal domestic use, within the warranty inspection report to contact the distributor from whom you period;...
