Digitax X-one Technical Manual

Taximeter & mobile data terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

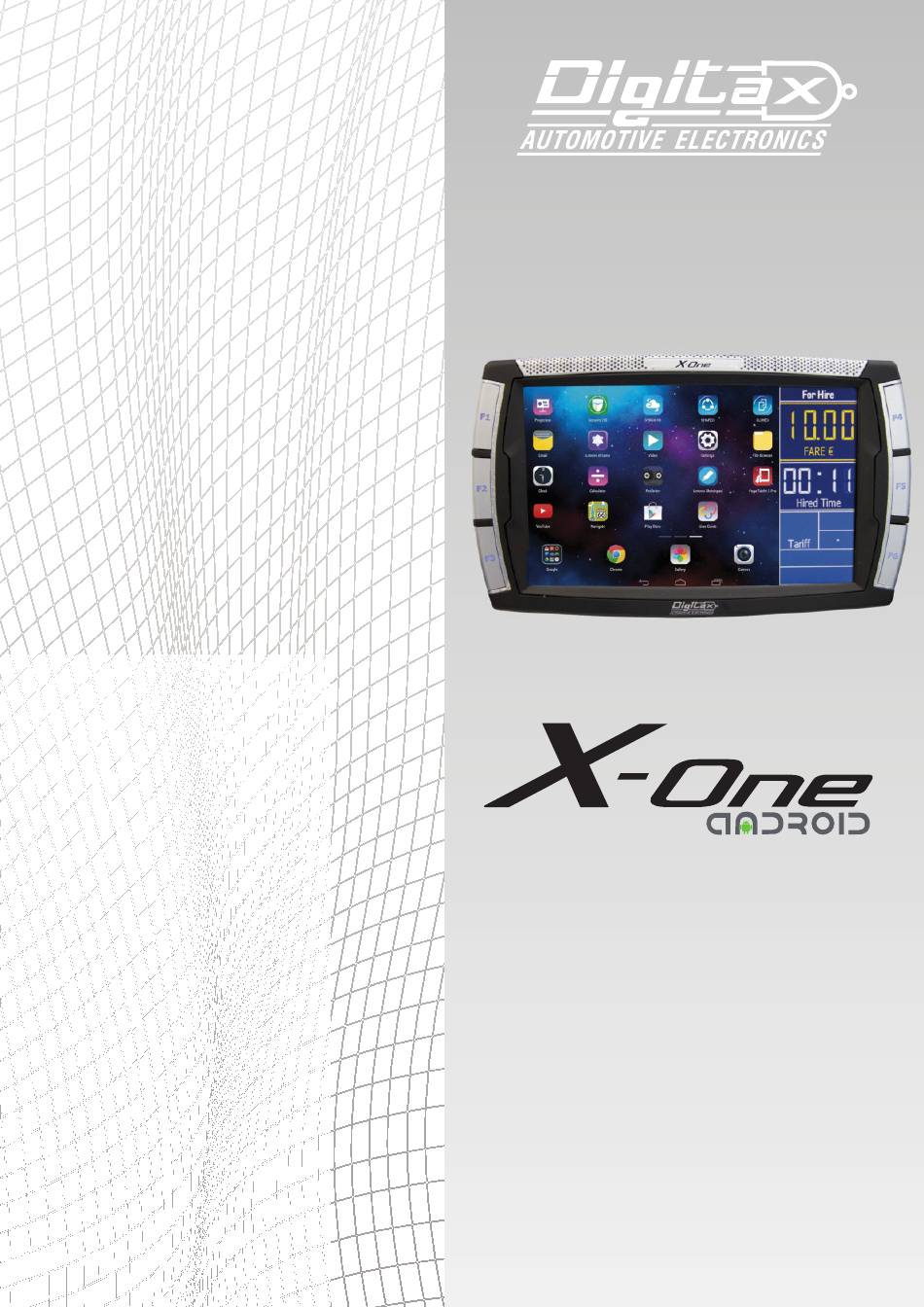

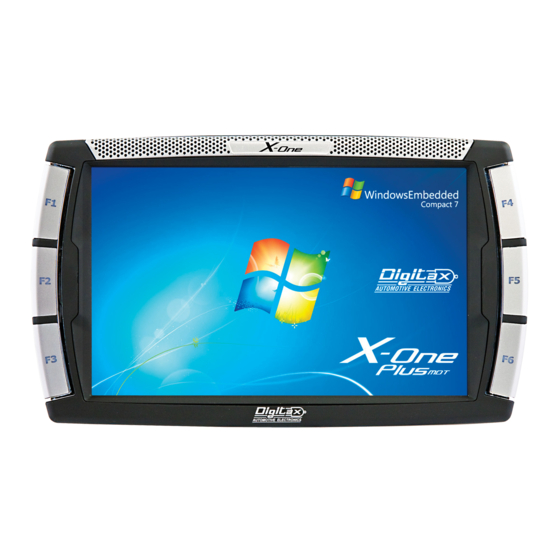

Taximeter & Mobile Data Terminal
Technical Manual
Installation and Programming
ver. 1.0
10/07/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-one and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitax X-one

  • Page 1 Taximeter & Mobile Data Terminal Technical Manual Installation and Programming ver. 1.0 10/07/2018...

  • Page 3: Table Of Contents

    The “ProgDate” ..................................45 Programming Keys ..................................46 Programming Parameters ..............................47 User and Demo Software ...............................67 Note ......................................74 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 4: Introduction

    (Autotest, Statistical Memory, “Trip by Trip” buffer and the Tariff programming). The third sections contains the description of all the tariff programming parameters. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 5: X-One Android Android Taximeter Display

    CE Mark Verifi cation Year Temperature range Voltage range K-Costant range 10R-05 XXXXX Serial Number The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 6: X-One Android Taximeter - Main Features

    The special programmable digital inputs and outputs allow to control devices and read signals coming from generic external equipment’s. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third...
  • Page 7 Serial port driver and test tools 4 External RS232 Serial Ports (option) Digital I/O driver The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 8: X-One Android Mdt - Main Features

    The special programmable digital inputs and outputs allow to control devices and read signals coming from generic external equipments. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third...
  • Page 9 Serial port driver and test tools 4 External RS232 Serial Ports (option) Digital I/O driver The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 10: X-One Mid Taximeter Display Area

    Different Taximeter Window Positions and Color Sets 4 Taximeter Window Postions 3 Taximeter Window Color Sets The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 11: Appearance

    Serial COM Micro SD Slot Sim Card 2 Holder Test Connector Host USB Port Lan Ethernet The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 12: How To Seal The Taximeter

    USB Seal Tariff Cover Seal SD Sealing Cover Taximeter Head Seal SIM CARDs Cover Seal The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 13: Measures

    Right Side View Left Side View Dimensions (in millimeters) Width Height Depth Weight (in grams) X-One Android The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 14: Electrical Connection Table

    2 A ENGINE +12 V BROWN fuse 2 A WHITE/VIOLET CAR LIGHT SWITCH Panic Bu on The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 15: Electrical Specifi Cations

    RS-232 serial ports: Taximeter COM1, COM2 Android COM5, COM6, COM7 (optional COM8, COM10, COM11, COM12) Panic Button The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 16 Blocking Wires Place the connector’s wires as indicated in the following images. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 17: Blocking Wires

    Cut the rubber cover and place both in the back cover. Close the back connectors cover fi xing the screws. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 18: Dashboard Fitting

    Remove the protective fi lm from the glue pad on the board. base of the bracket. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 19 Adjust the bracket so the taximeter screen is in the screws provided. best position for the driver. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 20: Windscreen Fitting

    Firmly press the bracket onto the glass to obtain the Using the screws provided fi x the taximeter to the best adhesion possible. bracket. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 21: Combo Antenna Installation

    22mm nut. Tape up the antenna connection. Tape up the antenna cables each 40-50 cm. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 22: Connectors And Cables

    PANIC BUTTON Ac" ve Low WHITE VIOLET BLACK ENGINE Ac" ve High BLUE BLACK +8/32V +8/32V +8/32V +8/32V The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 23 Mini USB Connector Used to connect the X-One Android to a PC via ADB. You can use a standard USB “A” -> mini USB “B” cable. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third...

  • Page 24: Ports Mapping

    Generic Analog Input 1, 10 bits ADC ANALOG INPUT 2 Generic Analog Input 2, 10 bits ADC The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 25: Mechanical Movement Sensor

    Fix the sensor’s cap to end the sensor’s assembling opera- tion and to have the sensor fully operative The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 26: Test Connector

    FARE Rs Time The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 27: E-Seal"- Electronic Sealing

    At any index position by pressing F1 the taximeter will come back to For Hire position The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 28: E-Seal"- Electronic Sealing

    PAIRING event is shown but is never generated printed Press F3 at anytime to come back to the E-Seal fi rst section The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 29: For Hire - Stopped - Hired

    • The right one shows the total extras • The right one shows the total extras (5) The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 30: Pre-Selection Of The Tariff

    If the tariff is not selected in 5 seconds, the taximeter For Hire goes back to “For Hire” position FARE € The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 31: The K-Constant

    K Constant = Pulses/Kilometer The pulses can be emitted by the car’s electronic transducer or, if the car is not provide of it, by the Digitax mechanical one or by a third part interface. This constant can be known or be tested on road.

  • Page 32: Time And Date Setting

    FOR HIRE back to For Hire position and take out the Service Program- ming Key The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 33: Time Synchro

    Hour | Min SYNCRO Clock 12-00 Clock Hour | Min The procedure ends automa! cally. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 34: Diagnostic Tariff Test (Check Sum)

    Hex : 0x1021 Bin : 1000000100001 Register Init is Hex : 0000 CHECK = Hex : 31C3 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 35: Statistical Memory

    22) Total Tariff 6 collection 45) Not used 23) Total collections from 7th to 64th The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 36: Statistical Memory

    FOR HIRE back to For Hire position. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 37: Statistical Memory

    Erase Memory Block 1 (even if not allowed by setup) Erase Memory Blocks 1-2 (even if not allowed by setup) The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 38: Trip By Trip

    Content from the last print out procedure. FOR HIRE Press button to go back to For Hire position. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 39: Trip By Trip

    4922961140076910 EXPIRE 03/15 START 20/01/2010 17:41 20/01/2010 17:44 POWER OFF DRIVER N 99999999 POWER OFF The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 40: Ticket Print Out: Settings

    Receipt Copy, then press The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 41: The Tariff

    Final Tariff P.015=1 P.015=1 P.013=2 P.013=2 P.013=2 P.013=2 Amount Param.429 Param.429 Param.429 Param.429 Param.429 Param.429 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 42: The Tariff

    The left display will show “Stop” for few seconds after go back For Hire position. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 43: Tariff Show

    Extra Amount Amount Extra number 3 = F3 Extra Amount Amount Extra number 4 = F4 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 44 To exit from Tariff Show menu and go back to Hire position, press F1. FARE Rs Time The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 45: The "Progdate

    The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 46: Programming Keys

    * Service Programming Keys 3 / 5 / 6: Set up are included in the general tariff checksum Views The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 47: Programming Parameters

    The allowed value goes from 0 (min) to 65535 (max). See Q.273 and Q.274 for adding a fi xed decimal point. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third...
  • Page 48 (Yes) or as a cost (No). The allowed answer is either 0 (No:Fixed-cost) or 1 (Yes: percentage of the fare). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third...
  • Page 49 - Should the unit-waiting-time (Q.5 to Q.7) in holiday-time be decreased based on the Decrease unit-wai! ng-! me in holiday-! me No / Yes percentage (Q.54)? The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 50 Block-number in Prog-Date 5 0 - 62 allowed value goes from 0 (min) to 62 (max). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 51 - Should the unit-distance (Q.2 to Q.4) in Prog-Date 7 be decreased based on the percentage No / Yes (Q.109)? The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 52 Dates. The allowed number goes from: 8 (min. priority) to: 1 (max. priority). If two or more Prog-Dates have the same number then No / Yes those Prog-Dates have the same priority. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 53 0 - 65535 65535 (max). The tariff-block to change to is to be programmed in Q.151. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 54 The relative block offset is the number of blocks to add to the current block number in order to obtain the new block number. The 0 - 64 allowed value goes from 0 (min) to 62 (max). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 55 No / Yes The allowed answer is either: 0 (No: don’t block) or: 1 (Yes: block). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 56 - If Yes the taxi-light will fl ash. The allowed answer is either: 0 (No: no fl ash) or: 1 (Yes: fl ash). No / Yes The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 57 ON: this is the number of the Prog-Date where light number 2 should be ON. The allowed value goes Prog-Date-number for light n. 2 0 - 8 from 0 (min) to 8 (max). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 58 No / Yes The allowed answer is either: 0 (No: enabled) or: 1 (Yes: disabled). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 59 - Choosing Yes, the taximeter will work only in Euro (also the ticket printout will show values only in Euro) The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third...
  • Page 60 The allowed answer is either: 0 (No: don’t print all income) or: 1 (Yes: print all income). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 61 No / Yes The allowed answer is either: 0 (No: access) or: 1 (Yes: no access). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 62 No / Yes The allowed answer is either: 0 (No: disabled) or: 1 (Yes: enabled). The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 63 No / Yes Defi ne if thermal printer width is 44 mm or 57 mm The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 64 - The protocol used for data-transmission on COM1 is the Digitax protocol or a custom protocol? COM1 protocol is Digitax or custom? See also Q.383, Q.384 and Q.386, Q.387. The allowed answer is either: 0 (No: Digitax protocol) or: 1 (Yes: custom protocol). Custom...
  • Page 65 Sta! s! cal memories chosen to be print ed out (value 0= print all from 32 to 45) from Q 415 / Available for any custom parameter / to Q 423 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 66 Tip F5 Clear the Tip amount / Available for any custom parameter / from Q 426 to Q 429 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 67: User And Demo Software

    Software Development Kit provided with the X-One Android, and the source code of those applications is available as example for the developers. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 68 fi le in the “\Hard Disk\SysApps\BOX” folder of the target X-One Android device, and restart it. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 69 Shutdown sequence can be started by AITP (power button, engine…) or by the user applica- tion, sending the AITP shutdown or restart with the AITP DLL. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 70 AITP to turn it on, eventually in Stealth mode. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 71 In this panel is possible to setup the options related to the power button. It is also possible to enable button K6 to turn the X-One Android ON. If is desired also to use it to turn the X-One Android off, than is possible to manage it better from the application, read- ing button pressure and issuing the shutdown command from it, following application’s logic...
  • Page 72 Application to read and write Com Tax 2 Message from/to internal AITP device. GPIO Test Application to control hardware internal GPIO pins. The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 73 Simply ASCII Termina that you can use for debugging and testing of perpherals connected via serial ports The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.

  • Page 74: Note

    Notes: ..........................................................................................................................................................................................................................................................................................................................................................................................................................The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 75 The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential. Any disclosure, copying, distribution to third party is strictly prohibited.
  • Page 76 Digitax Italy Headquarter Via dell’Industria 16 62017 Porto Recana• (MC) - ITALY Phone +39 071 7590984 – Fax +39 071 9797405 Web: www.digitax.com – E-mail: info@digitax.com...
