FEATURES

Triaxis digital gyroscope with digital range scaling
±75°/sec, ±150°/sec, ±300°/sec settings
Tight orthogonal alignment: <0.05°
Triaxis digital accelerometer: ±18 g
Autonomous operation and data collection
No external configuration commands required
Start-up time: 180 ms
Sleep mode recovery time: 4 ms
Factory-calibrated sensitivity, bias, and axial alignment
Calibration temperature range
ADIS16360: +25°C
ADIS16365: −40°C to +85°C
SPI-compatible serial interface
Wide bandwidth: 330 Hz
Embedded temperature sensor
Programmable operation and control
Automatic and manual bias correction controls
Bartlett window FIR filter length, number of taps
Digital I/O: data ready, alarm indicator, general-purpose
Alarms for condition monitoring
Sleep mode for power management
DAC output voltage
Enable external sample clock input: up to 1.2 kHz
Single-command self-test
Single-supply operation: 4.75 V to 5.25 V
2000 g shock survivability
Operating temperature range: −40°C to +105°C
Rev. B
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
Six Degrees of Freedom Inertial Sensor

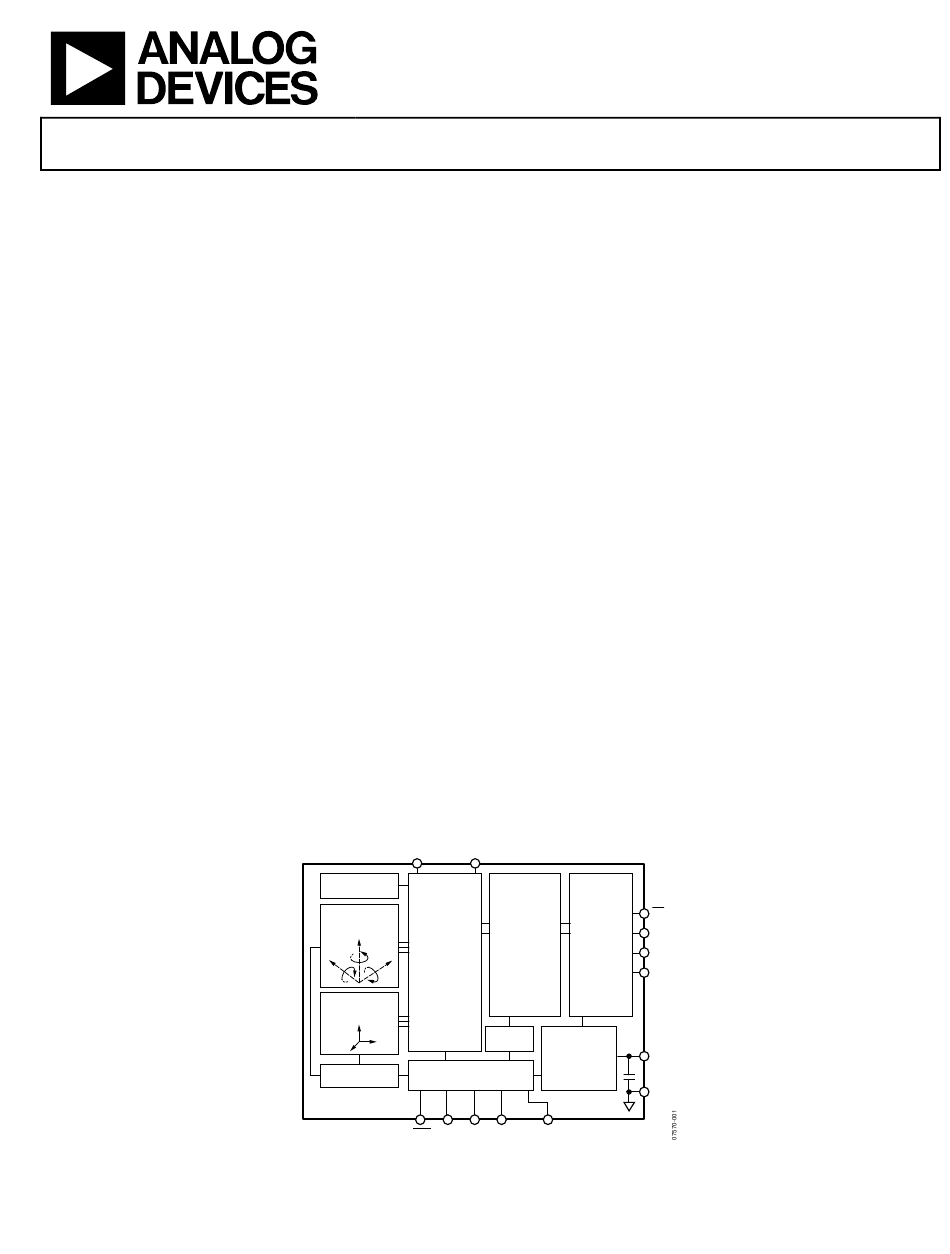

FUNCTIONAL BLOCK DIAGRAM

AUX_ADC
AUX_DAC
TEMPERATURE
SENSOR
TRI-AXIS MEMS
ANGULAR RATE
SENSOR
SIGNAL
CALIBRATION
CONDITIONING
AND
CONVERSION
PROCESSING
TRI-AXIS MEMS
ACCELERATION
SENSOR
ALARMS
DIGITAL
SELF-TEST
CONTROL
ADIS16360/
ADIS16365
RST
DIO1
DIO2
DIO3
Figure 1.
ADIS16360/ADIS16365

APPLICATIONS

Medical instrumentation
Robotics
Platform control
Navigation

GENERAL DESCRIPTION

The ADIS16360/ADIS16365 iSensor® devices are complete inertial
systems that include a triaxis gyroscope and triaxis accelerometer.
Each sensor in the ADIS16360/ADIS16365 combines industry-
leading iMEMS® technology with signal conditioning that optimizes
dynamic performance. The factory calibration characterizes each
sensor for sensitivity, bias, alignment, and linear acceleration (gyro
bias). As a result, each sensor has its own dynamic compensation
formulas that provide accurate sensor measurements.
The ADIS16360/ADIS16365 provide a simple, cost-effective
method for integrating accurate, multiaxis inertial sensing into
industrial systems, especially when compared with the complexity
and investment associated with discrete designs. All necessary
motion testing and calibration are part of the production process
at the factory, greatly reducing system integration time. Tight
orthogonal alignment simplifies inertial frame alignment in naviga-
tion systems. An improved SPI interface and register structure
provide faster data collection and configuration control.
The ADIS16360/ADIS16365 use a compatible pinout and the same
package as the ADIS1635x family. Therefore, systems that currently
use the ADIS1635x family can upgrade their performance with
minor firmware adjustments in their processor designs. These
compact modules are approximately 23 mm × 23 mm × 23 mm
and provide a flexible connector interface that enables multiple
mounting orientation options.
CS
OUTPUT
SCLK
REGISTERS
AND
AND SPI
DIN
DIGITAL
INTERFACE
DOUT
POWER
VCC
MANAGEMENT
GND
DIO4/CLKIN
