Summary of Contents for Zolix Instruments PSA Series

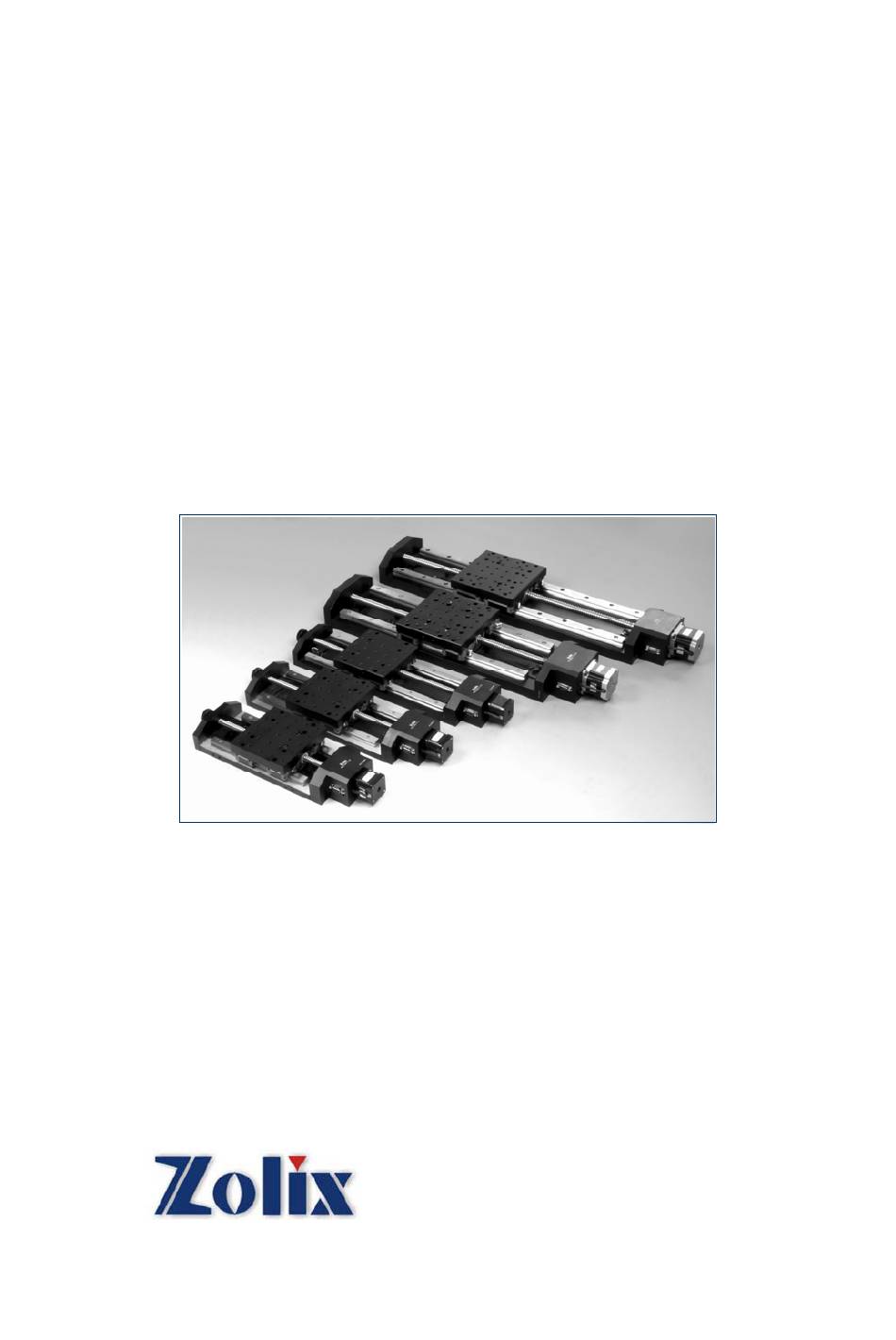

- Page 1 PSA Motorized Stages (Version 1.2 2011-06-16) Operation Manual Zolix Instruments Co., Ltd.
-
Page 2: Table Of Contents
Thanks for using Zolix products ！ Please read this introduction carefully before using. And kindly please contact Zolix office in Beijing or local office if you have any questions and suggestions. Directory PSA Series Motorized Stages...................... 1 1.1. Introduction ........................1 1.2. -
Page 3: Psa Series Motorized Stages
PSA Series Motorized Stages Introduction 1. PSA Series Motorized Stages 1.1. Introduction PSAXXX-11 series motorized stages are upgraded from TSA series stages. The special structure and abrasive ball screw are for repeating accurate orientation. The ball screw, shaft coupling and guide rail are all import. Moving linearity and parallel are added into calibrations. - Page 4 PSA Series Motorized Stages Introduction Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn...
-
Page 5: Model Explain
PSA Series Motorized Stages Model Explain 1.2. Model Explain Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 6: Specifications
PSA Series Motorized Stages Specifications 1.3. Specifications PSA050-11-X PSA100-11-X PSA150-11-X PSA200-11-X PSA300-11-X PSA400-11-X Table 120mmX120mm 160mmX160mm dimension Travel Resolution 0.01mm 0.0125mm Maxim speed 40mm/Sec 50mm/Sec linearity 10μm 10μm/100mm parallel 15μm 15μm/100mm Repeatability ＜3μm Interstice ＜5μm Step motor 42M-1.8S 57M-1.8S Maxim torque 0.4 Nm... - Page 7 PSA Series Motorized Stages Specifications PSA050-13-X PSA100-13-X PSA200-13-X PSA300-13-X PSA400-13-X Table 150mmX150mm dimension Travel Resolution 0.01mm 0.0125mm Maxim speed 40mm/Sec 50mm/Sec linearity 10μm 10μm/100mm parallel 15μm 15μm/100mm Repeatability ＜3μm Interstice ＜5μm Step motor 57M-1.8S Maxim torque 1.0 Nm Operating 2.4A...
-
Page 8: Wiring Diagram
Wiring Diagram 1.4. Wiring Diagram Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 9: Psag Motorized Goniometric Stages
The flexible clutch, which is import product, connects the motor and the ball bearing screw. It ensures the high performance. The motion system is the worm and the screw. The relative motion construction has the arc guide. They all have the limit switch. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 10: Model Explain
High of Rotation Center (mm) Guide Reduction Gear 610:1 870:1 Resolution 0.00037 0.00026 (Subdivision=8) (°) Step motor (step angle°) 57(1.8) 57(1.8) Operating Current Load Capacity (kg) 2.4. Wiring Diagram Step Motor negative side limit positive side limit Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 11: Psav Series Motorized Lift Stages
Standard interface for signal transmission. The motor can be changed into servo motor. Stage with standard installation screw holes can be assembled into multi-axis system. 3.2. Mode 3.3. Specifications Mode PSAV30-ZF PSAV100-ZF Stage size（mm） 238X238 238X238 Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 12: Wirings
3.8. 。 。 Step motor (step angle°) 57（1.8 57（1.8 ） ） Load Capacity (kg) NOTE:If the load is less, the maximum speed will increases. 3.4. Wirings Step Motor negative side limit positive side limit Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 13: Unpacking Procedures
Have above-mentioned situation please report immediately to Zolix or representatives Please keep the packing box at least half year in order to return and transport needing. 5. Warning Warning!!! Never touch the stage when it is in operation expect under manual! Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 14: Certifications And Warranty
Zolix when it was shipped from the factory. Zolix Instruments Corporation (Zolix) instruments and accessories are warranted for a period of one full year from date of delivery to be free from defects in material and to conform to the specifications furnished by Zolix. -
Page 15: Ce Declaration Of Conformity
EN 50082-1 : 1992 Generic Emission EN 50081-1 : 1992 Electrical Safety Standards EN 61010-1 : 1993 Zolix Instrument Co., Ltd certifies that this equipment conforms to the protection requirements of the above Directives. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... -
Page 16: Packing List
8. Packing List Model: Name: Motorized Stage Serial Number: Products List Product Name Amount Motorized stage Accessories Amount Tools and Facilities Amount Documents Amount PSA Motor Stages Operation Manual Conformity certificate Checker Name and Checking Date: Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail:info@zolix.com.cn... - Page 17 Zolix Instruments Co., Ltd. Add: LDUV 68B, No. 16 Huanke Middle Rd, Golden Bridge Science and Technology Industrial Base, Zhongguancun Science Park Tongzhou Zone, Tongzhou District, Beijing China(101102). TEL: +86 10 56370168 FAX: +86 10 56370118 Email: info@zolix.com.cn http://www.zolix.com.cn...
