TELA merilni sistemi

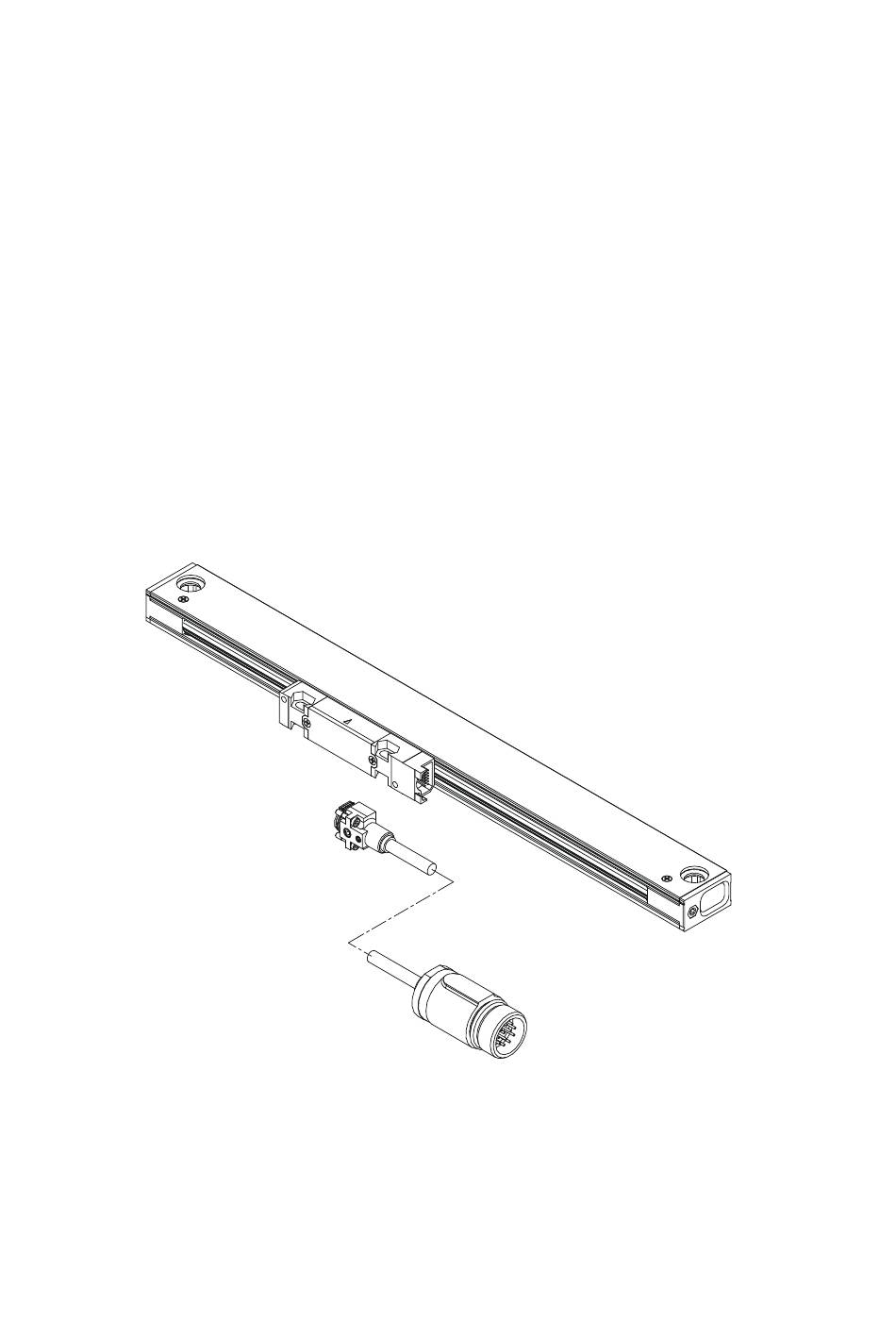

Scale Unit TGM133/134
Instruction Manual
th
ID 430 261 710 000, 4
Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TGM133 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tela TGM133

  • Page 1 TELA merilni sistemi Scale Unit TGM133/134 Instruction Manual ID 430 261 710 000, 4 Edition...
  • Page 2 • When using our products in combination with other equipment, the functions and performances as noted in this manual may not be attained, depending on operating and environmental conditions. TGM133/134 Instruction Manual May 2013 Edition 2/24...
  • Page 3 Power source which has a remote sensing function, must be used for TGM133. Power unit without remote sensing unit may fail to prove optimum functions. Please provide proper power source by referring to Section 5.
  • Page 4: Table Of Contents

    4.3.6. Air Injection ……………………………………………….………………………… 5. Connecting to a Device ……………………………………. 5.1. Output Signal……………………………………………….…………………………… 5.2. Output connectors …………………………………….……………………………… 5.3. Alarm ( DS version optionally )…………………………. …………………………… 21 6. Dimensions …………………………………………………… 22 7. Trouble prevention ………………………………….………. 24 TGM133/134 Instruction Manual May 2013 Edition 4/24...
  • Page 5: Outline

    1. Outline 1-1. Before Operation TGM133/134 series is small, light and high-accuracy optical feedback scale. This series provides Line driver (A, A-, B, B-, RI, RI- digital output) or Sinusoidal signals (1Vpp or 11µA output). Output signals are adjusted before shipment, ex.-factory, each signal can be readily used for connection to control device as it is.
  • Page 6: Model Configuration

    5 … Conntact 9 pin connector (SI) 6 … Conntact 12 pin coupling (DS, SV) 7 … D-sub 9 pole (DS) 9 … other (specify) 0 … without connector The difference between TGM133 and TGM134 see in section 6. TGM133/134 Instruction Manual May 2013 Edition 6/24...
  • Page 7: Specifications

    (NOTE 2) When load resistance of A/B/RI/ALM is 120, refer to section 5-3 for details of power voltage. (NOTE 3) SV can perform output range of 0.6 V to 1.2 V as A/B phase output with 150 m cable made by TELAms. TGM133/134 Instruction Manual May 2013 Edition 7/24...
  • Page 8: Name And Function Of Parts

    Using the scale unit in excess of the effective movement range may damage the unit.  Model name This indicates the scale unit model name.  Serial No. This indicates the scale unit serial No.  Connector.  Head cable. TGM133/134 Instruction Manual May 2013 Edition 8/24...
  • Page 9: Mounting

    Mechanical limit mechanism (stoppers, etc.) is required if scanning unit needs to move for its full stroke in measurement length near to measurement length marks. TGM133/134 Instruction Manual May 2013 Edition 9/24...
  • Page 10: Protection Of The Head Cable

    Such a cover is shown in Fig. 4-3. Fig. 4-3 TGM133/134 Instruction Manual May 2013 Edition 10/24...
  • Page 11: Tools Required For Scale Installation

    Accessories  HSB M8 x 20 2 (For mounting channel)  HSB M4 x 20 2 (For mounting scanning unit)  Cable clamp (small)  +P M4 x 10 4 (For cable clamp) TGM133/134 Instruction Manual May 2013 Edition 11/24...
  • Page 12: Mounting Procedure

    40 mm at each end as shown in Fig. 3-5. The allowable parallelism value is 0.1 mm. Fig. 4-5 After adjusting the parallelism to 0.1 mm, attach the M8 screws using a tightening torque of 22 Nm (220 kgf.cm). TGM133/134 Instruction Manual May 2013 Edition 12/24...
  • Page 13: Mounting The Scanning Unit

    Fig. 4-6 • The mounting surface must be clean - free of paint - dry and without chips It is also possible to mount in the following condition. Fig. 4-7    TGM133/134 Instruction Manual May 2013 Edition 13/24...
  • Page 14: Removing The Scanning Unit Holder

    The scanning unit holder can now be removed by lifting it free from the scale unit. Fig. 4-9 A TGM133/134 Instruction Manual May 2013 Edition 14/24...
  • Page 15: Checking The Operation Range

    Be careful that the scale movement range does not exceed the scale measuring length + range of movement. If it does, the scale can be damaged. Fig. 4-10 TGM133/134 Instruction Manual May 2013 Edition 15/24...
  • Page 16: Attaching The Head Cable

     Dusty  High humidity  Probable condensation inside scale by temperature and humidity change Actual effects are different depending on working condition. Adopt after verifying effects enough. B: Optionally provided Fig. 4-12 TGM133/134 Instruction Manual May 2013 Edition 16/24...
  • Page 17 Mist separator: 0.3 µm Pressure gauge tester connecting bore 2-RC (PT) 1/8 IN side: Tube shape 8 Pipe connecting bore OUT side: Tube shape 6 Automatic drain working pressure 150 to 1020 kPa Table 4-1 TGM133/134 Instruction Manual May 2013 Edition 17/24...
  • Page 18: Connecting To A Device

    5V (100mA max.) 1Vp-p = 2.5V (Ud/2)  = 20 m 90° 0.5Vp-p Fig. 5-2 360°  Sinusoidal output – SI (11µA) : supply 5V (100mA)  7-16 Ap-p 90°  Ap-p Fig. 5-3 TGM133/134 Instruction Manual May 2013 Edition 18/24...
  • Page 19: Output Connectors

     Digital output - DS, 12 pin Contact connector or coupling: B BLACK A BROWN RI GREY E BLUE GREEN/WHITE 0V (sens) VIOLET GREEN PINK GREEN/YELLOW +5V (sens) WHITE Housing shield SHIELD Connect shield to connector housing Fig. 5-5 TGM133/134 Instruction Manual May 2013 Edition 19/24...
  • Page 20  Wires for signals must be twisted pairs, cross section 0.14 mm AWG26) and voltage supply wires 0,25 mm (AWG22), Calculated Twisted wire, Electrical resistance: 141 /km or less Structure:  Shielding structure: all wires must be covered with braided shield TGM133/134 Instruction Manual May 2013 Edition 20/24...
  • Page 21: Alarm ( Ds Version Optionally )

    A,B and B turn to high impedance. Alarm signal will be automatically released when cause of alarm is eliminated. To release an alarm signal, disconnect the power supply once and turn on the power again. TGM133/134 Instruction Manual May 2013 Edition...
  • Page 22: Dimensions

    6. Dimensions TGM133 TGM133/134 Instruction Manual May 2013 Edition 22/24...
  • Page 23 TGM134 TGM133/134 Instruction Manual May 2013 Edition 23/24...
  • Page 24: Trouble Prevention

    Therefore, use of an air gun can cause chips or other debris to enter the sealed area of the scale and cause breakdowns. TELA merilni sistemi d.o.o. Cesta dveh cesarjev 403 1000 Ljubljana...
