Berkefeld 7564 20 Series Operation And Assembly Instructions

Knx/eib glass sensor 2gang / 3gang with room thermostat
Hide thumbs

Advertisement

Quick Links

Download this manual
KNX/EIB
Glass sensor 2gang / 3gang with room thermostat
Glass sensor 2gang with room thermostat
Order-No. : 7564 20 xx
Glass sensor 3gang with room thermostat
Order-No. : 7564 30 xx
Operation- and
Assembly Instructions
1 Safety instructions
Electrical equipment must be installed and fitted by qualified electricians.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Do not operate the device with sharp or pointed objects. The touch-sensitive surface
could be damaged.
Do not use sharp objects for cleaning. Do not use acids or organic solvents.
These instructions are an integral part of the product, and must remain with the end
customer.

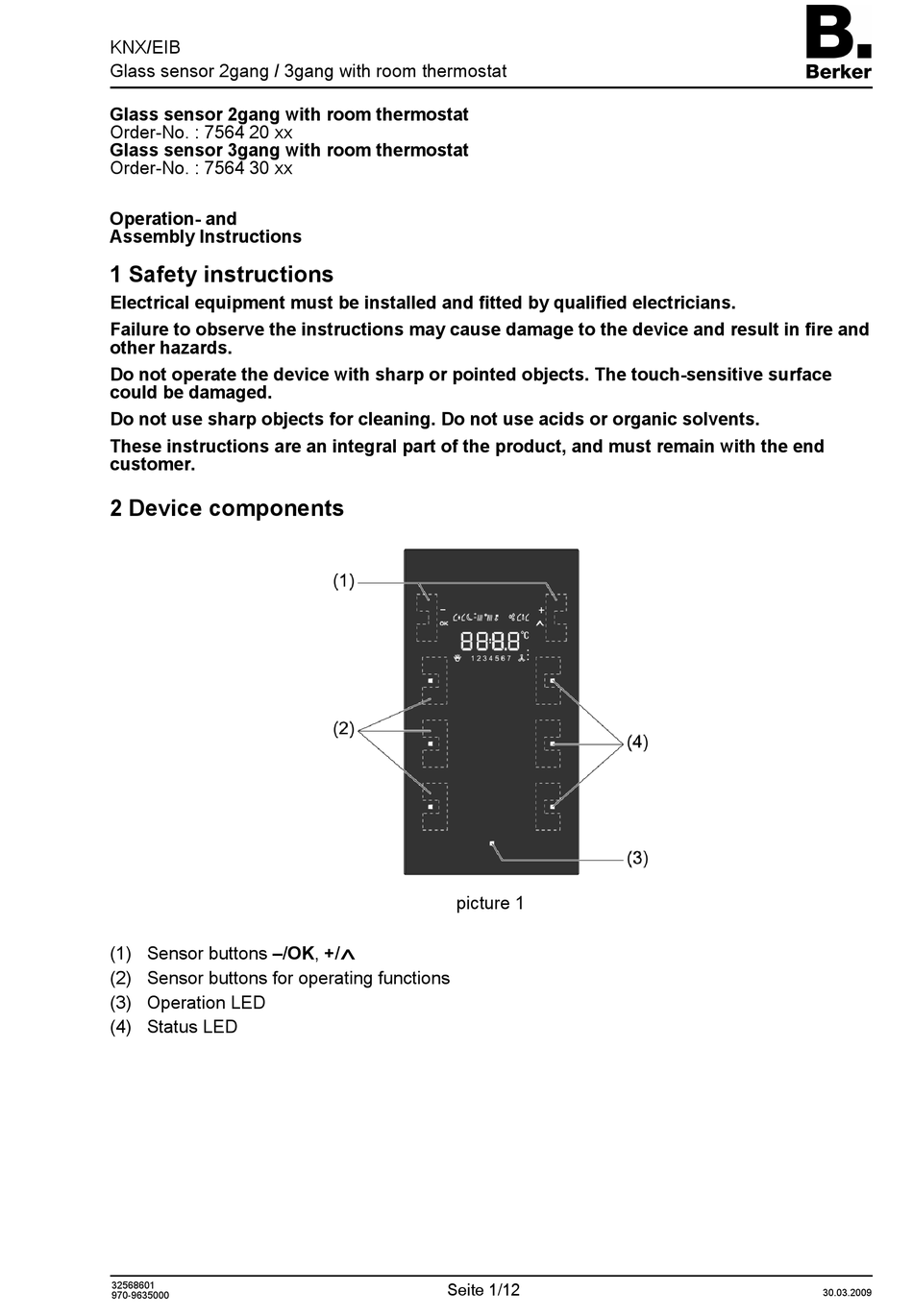

2 Device components
(1) Sensor buttons –/OK, +/¨
(2) Sensor buttons for operating functions
(3) Operation LED
(4) Status LED
32568601
970-9635000
picture 1
Seite 1/12
30.03.2009
