Rev 0; 6/06
General Description
The MAXQ3210 evaluation kit (EV kit) is a proven plat-
form to conveniently evaluate the capabilities of the
MAXQ3210 voltage regulator microcontroller. The kit
contains the MAXQ3210 with pins brought out to head-
ers, JTAG programming interface, 9V battery clip,
piezoelectric horn, and pushbuttons and LEDs to con-
trol and display board operation. With the included
power supply, software, serial-to-JTAG interface board,
and an RS-232 cable connected to a personal comput-
er, the kit provides a completely functional system ideal
for evaluating the capabilities of the MAXQ3210.
Evaluation Kit Contents
♦ MAXQ3210 EV Kit Board with Processor and
3.57MHz Crystal Installed
♦ Serial-to-JTAG Interface Board and JTAG Cable
♦ MAXQ3210 Evaluation Kit CD-ROM
Ordering Information
PART
MAXQ3210-KIT
Evaluation Kit for MAXQ3210
MAXQ is a registered trademark of Maxim Integrated Products, Inc.
5V POWER CONNECTOR
JTAG INTERFACE BOARD

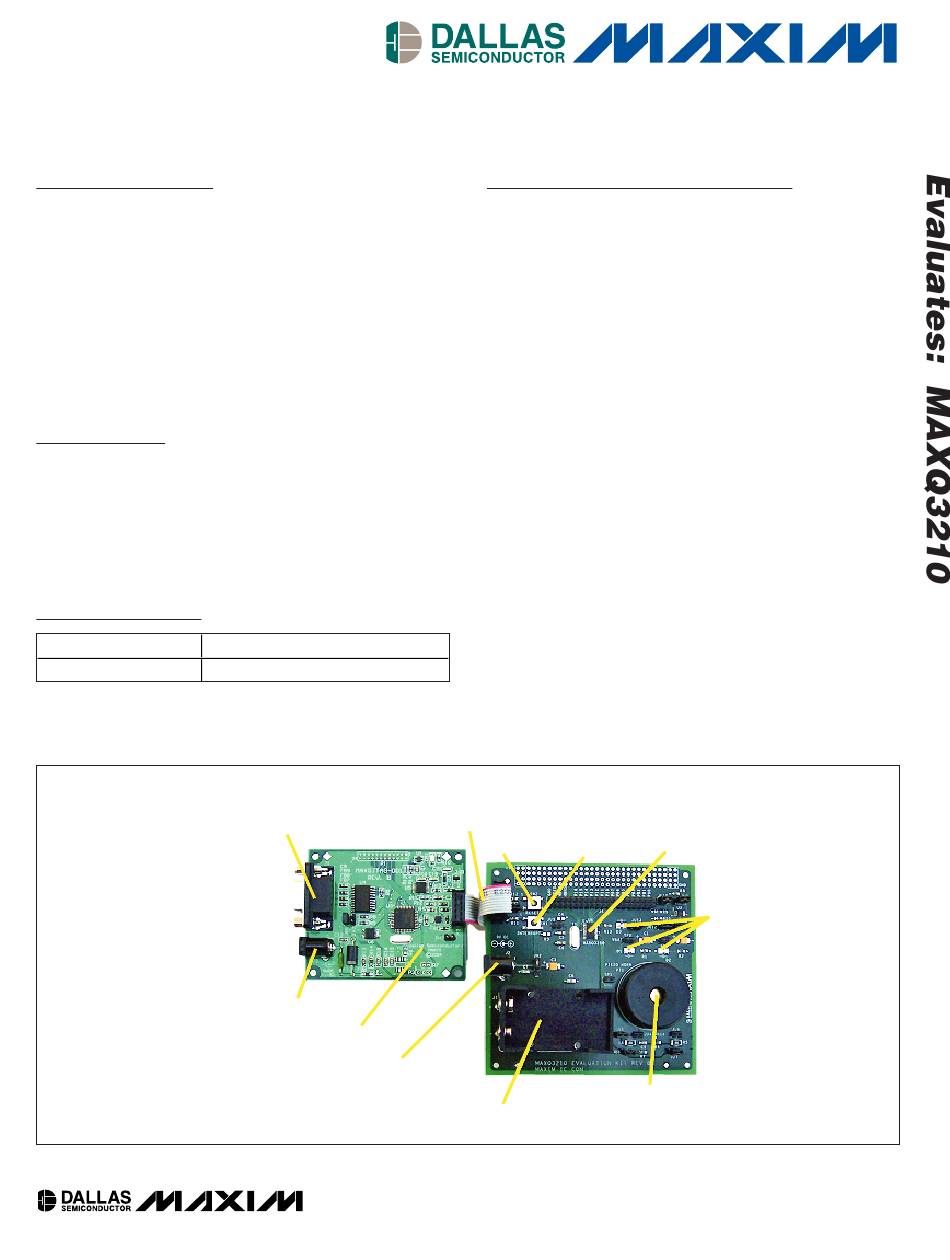

Figure 1. MAXQ3210 Evaluation Kit Setup
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim's website at www.maxim-ic.com.
DESCRIPTION
SERIAL DEBUG PORT
9V POWER CONNECTOR
9V BATTERY CONNECTOR
______________________________________________ Maxim Integrated Products
MAXQ3210 Evaluation Kit
♦ Easily Loads Code Using Bootstrap Loader and
Serial-to-JTAG Interface Board
♦ JTAG Interface Provides In-Application
Debugging Features
Step-by-Step Execution Tracing
Breakpointing by Code Address, Data Memory
Address, or Register Access
Data Memory View and Edit
♦ 9V Battery Clip for Use with MAXQ3210 Voltage
Regulator
♦ Piezoelectric Horn with Optional Volume
Adjustment Jumpers
♦ Evaluation Kit Board can be Powered Directly
Over JTAG Interface
♦ Processor Clock can be run from Crystal or RC
Oscillator Circuit
♦ Direct LED Drive from Port Pin P0.7
♦ 32-Step Digital Potentiometer for Experimenting
with On-Board Comparator
♦ Pushbutton Switches for Reset and Interrupt
Generation
♦ Prototyping Area Including +5V Rail and Ground
♦ Test/Expansion Header Includes All Device GPIO
and Piezoelectric Driver Pins
♦ Board Schematics Included to Provide a
Convenient Reference Design
JTAG INTERFACE
CABLE
INTERRUPT
RESET
SWITCH
MAXQ3210
LEDs
PIEZO HORN
Features
1
