SY Electronics XSQ Technology Skew62 Quick Installation Manual

Table of Contents

Download this manual

Please Note: Skew62 is designed to eliminate the 'skew effect' and may be used with ANY

brand of Cat5/6 KVM or VGA extender product. XSQ™ technology is included in all CatX

300m receivers.

Important: There are many package options available with CatX products. For a full list of all

the appropriate cables and accessories supplied with each CatX product, please see the

back page of this Quick Installation guide

Skew62

Quick Installation Guide

S.Y.Electronics Ltd

Unit 7, Worrall Street

Lancashire M5 4TH

United Kingdom

Tel: +44 (0) 161-868-3450

Fax: +44 (0) 161-868-3459

www.syelectronics.co.uk

Salford

Table of Contents

Need help?

Do you have a question about the XSQ Technology Skew62 and is the answer not in the manual?

Page 1 Skew62 Quick Installation Guide Please Note: Skew62 is designed to eliminate the ‘skew effect’ and may be used with ANY brand of Cat5/6 KVM or VGA extender product. XSQ™ technology is included in all CatX 300m receivers. Important: There are many package options available with CatX products. For a full list of all the appropriate cables and accessories supplied with each CatX product, please see the back page of this Quick Installation guide S.Y.Electronics Ltd...

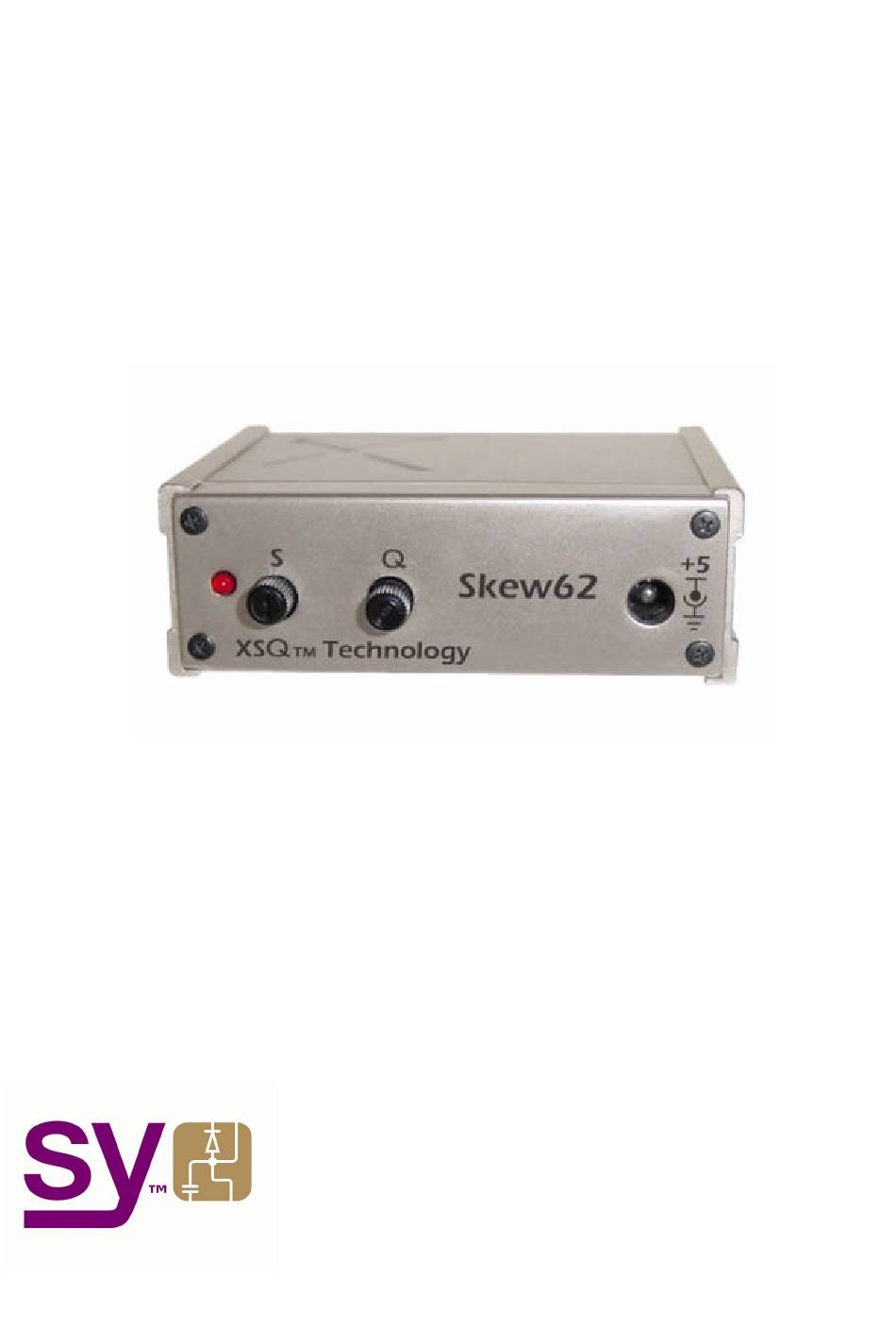

Page 2 Installation Unit Diagrams Skew62 (Front panel) S & Q Skew correction controls +5V DC socket (centre pin positive) Fig 2.1 Skew62 (Rear panel) VGA in Male 15way HDD connector Monitor Female 15way HDD connector Fig 2.2 Connecting to the power supply Skew62 requires a separate power supply.
Page 3 Skew correction controls The ‘S’ and ‘Q’ ‘Skew’ correction controls can be adjusted by hand or using a small screwdriver. Skew Correction using XSQ™ technology CAT 5e and CAT 6e cables contain 4 twisted pairs, which are used to transmit the VGA signal from the Tx to the Rx units of CatX.
Page 4 Appendix D - Package Contents Cat5/6 VGA extender product options CatX packages (Tx and Rx sets): - CatX Video (CatX Video Tx & Rx) CatXQ Video (CatX Video Tx & CatXQ Rx) CatX Video Lite (CatX Video Lite Tx & CatX Video Lite Rx) 1 x 2.0m Cat5 patch lead 1 x 12V DC power supply 1 x VGA (male to female) 0.5m cable...
