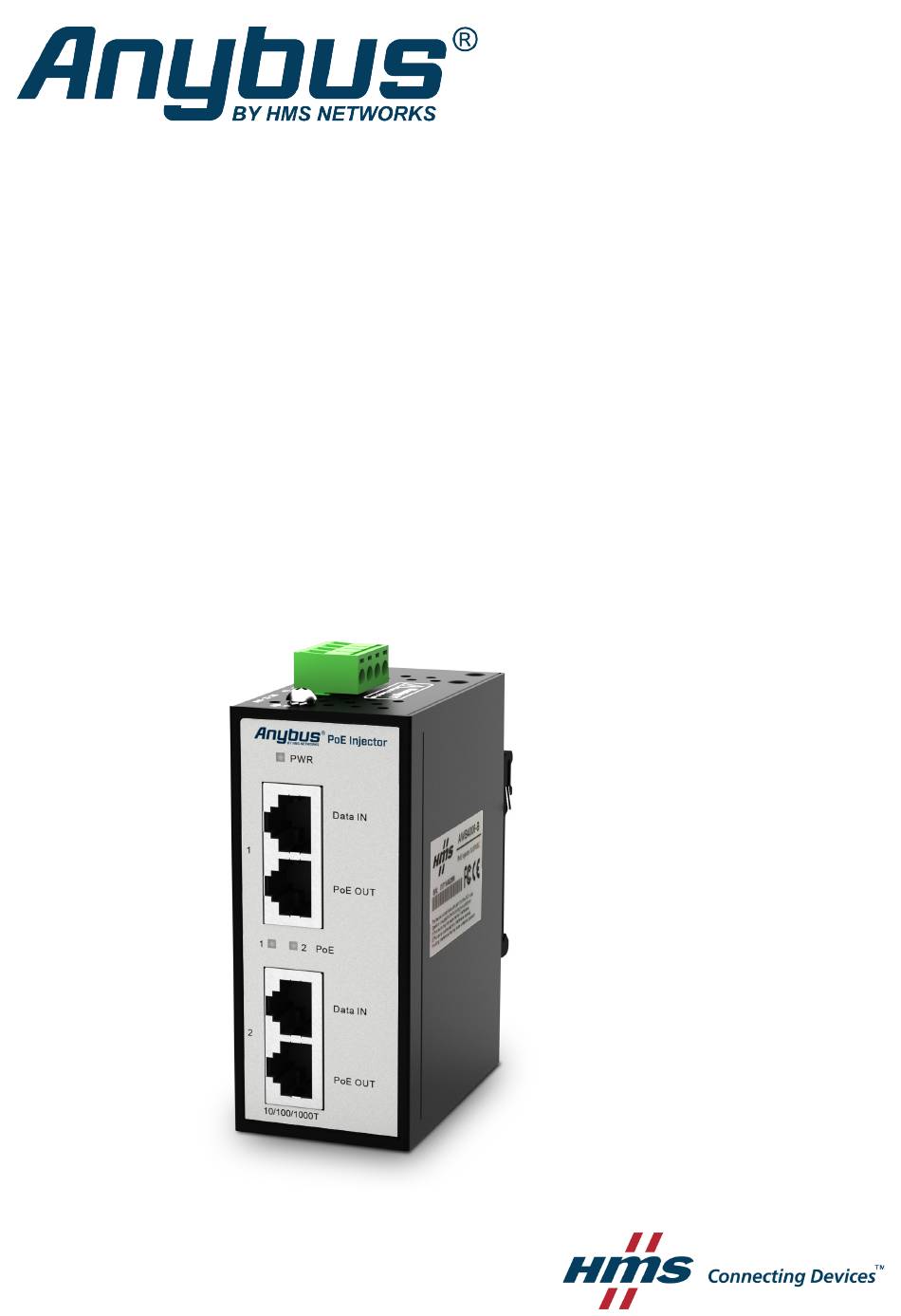

- Page 1 ® Anybus PoE Injector 12–57 VDC STARTUP GUIDE SP2385 1.3 en-US ENGLISH...
-
Page 2: Important User Information
HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice. -
Page 3: About This Document
About This Document 3 (12) About This Document This document describes how to install Anybus PoE Injector 12–57 VDC. For additional documentation and technical support regarding this product, please visit www.anybus.com/support. Document Conventions The following formatting conventions are used in this document to indicate... -
Page 4: Intended Use
Description Anybus PoE Injector 12–57 VDC is a dual port 802.3af/at compliant Power over Ethernet injector with Midspan Intelligent Detection. The PoE injector will not turn on power until it detects a valid PoE signature from the devices attached downstream on the Ethernet cable. -
Page 5: Installation
Installation 5 (12) Installation DIN Rail Mounting Fig. 1 DIN rail mounting kit Attach the DIN rail mounting plate (included) to the back of the unit using the 3 included screws. Hook the unit onto the DIN rail and press it downwards and towards the rail until it snaps into place. -
Page 6: Wall Mounting
Installation 6 (12) Wall Mounting Fig. 2 Wall mounting kit Attach the 2 wall mounting brackets (included) to the top and bottom of the unit using the included screws. Hold the unit upright against the wall and fasten it with suitable screws through the apertures in the brackets. - Page 7 Installation 7 (12) Overview Fig. 3 Front panel SP2385 1.3 en-US Anybus ® PoE Injector Startup Guide...
- Page 8 Installation 8 (12) Ethernet/PoE Connectors Fig. 4 Ethernet/PoE connector pinning (RJ45) 10/100 Mbit ports Data IN (data only) PoE OUT (data + power) Data Receive Data Receive and Power (+) Data Receive Data Receive and Power (+) Data Transmit Data Transmit and Power (-) (not connected) (not connected) (not connected)
-
Page 9: Power Connector
Installation 9 (12) Power Connector Fig. 5 Top panel Power Input - Power Input + Chassis ground Connecting power with reverse polarity or using the wrong type of power supply may damage the equipment. Make sure that the power supply is connected correctly and of the recommended type. -
Page 10: Technical Data
When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com. SP2385 1.3 en-US Anybus ®... - Page 11 Technical Data 11 (12) Dimensions Fig. 6 Dimensions All measurements are in mm. SP2385 1.3 en-US Anybus ® PoE Injector Startup Guide...
