Summary of Contents for Blue Aura Blackline PG1

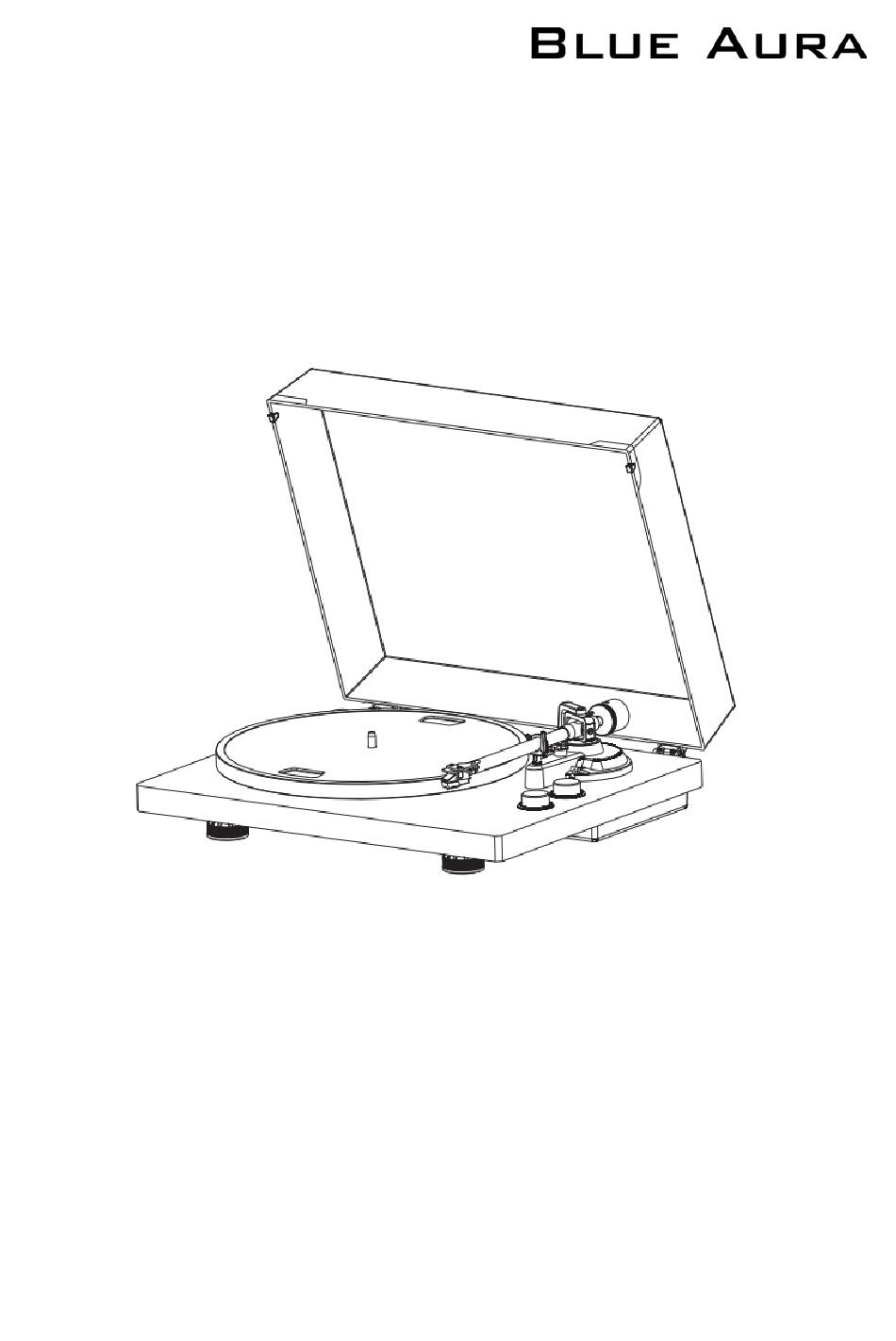

- Page 1 BLUETOOTH TURNTABLE PLAYER USER MANUAL Model: Blackline PG1...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer. Do not install near any heat sources such as radiators, heat registers, stoves, or other.
- Page 3 What’s in the box Turntable Mat RCA to RCA with grounded cable...
- Page 4 Components Features Please check thoroughly and make sure you find the following items that come...
-
Page 5: Cartridge Down Force Adjustment
along with this package: 1) Unit 8) Instruction Manual 2) Power Adaptor 9) Cartridge Alignment Protractor 3) Counterweight 10) Anti-skating Weight 4) Platter with Belt 11) RCA to RCA grounded cable 5) 45 RPM Adaptor 12) EU+UK power adapter 6) Hook 7) Turntable mat Turntable Platter and Belt Setup 1. -
Page 6: Anti-Skating Force Adjustment
3. Lower the tonearm lift and position the cartridge in the space between tonearm rest and platter. Carefully rotate the Counterweight until the tonearm balances out. The tonearm should return to the balanced position if it is moved up or down. This adjustment must be done carefully. -
Page 7: Main Power Connection
The factory installed cartridge is 47k ohms / MM-input. To connect a Blue Aura v40 amplifier to the turntable using Bluetooth, turn the v40 on and change the Source to BT (ensure BT antenna is connected to the back of the v40) Using the v40 remote control, press the BT button to put into pairing mode –... -
Page 8: Bluetooth Operation
which is connected to the mains power will switch to standby mode automatically if no music has been playing for about 20 minutes. Operation How to play a record . Connect the included power adapter to unit and press the power rocker switch to be “ON”... -
Page 9: Cartridge Replacement
4. To disconnect pairing, power off the turntable or turn off Bluetooth pairing on your Bluetooth speaker. Note: This unit will connect to the closest Bluetooth speaker it. If after 2 minutes no Bluetooth speaker can be found to pair with, the Bluetooth transmitter will become inactive and the LED will turn off. - Page 10 OTE: If you are unfamiliar or uncomfortable with completing this procedure, we recommend consulting with a professional to perform the installation Maintenance and Cleaning Your turntable requires little of no regular maintenance. Remove dust with a slightly damp antistatic cloth. Never use a dry cloth, this will create static electricity and attract more dust! Antistatic cleaning agents are available at specialist stores, but must be applied sparingly to avoid damage to rubber parts.
- Page 11 - Amplifier or speakers muted. - No connection to the speakers. - No connection between turntable and amplifier. -Wire leads not connected the cartridge. Strong hum on phono input: - No ground connection from cartridge, arm, or arm cable to amplifier or ground loop.
-
Page 12: Product Technical Specification
Product technical Specification: Nominal Speeds 33 1/3 & 45RPM Speed Variance ±1.5% Wow and Flutter ≤0.15% Signal to Noise 55dB Down force Range 3.0-6.0g Effective Tonearm Length 8.6” (218.5mm) Overhang 0.73in Power Consumption 5W (Max.) Outboard Power Supply 12V/ 500mA AC-DC Dimensions (W x H x D) 420 x 360 x 125mm Net weight...
