FANTAIL 217

Advertisement

Table of Contents
loading

Summary of Contents for Canadian Electric Boat Company Fantail 217

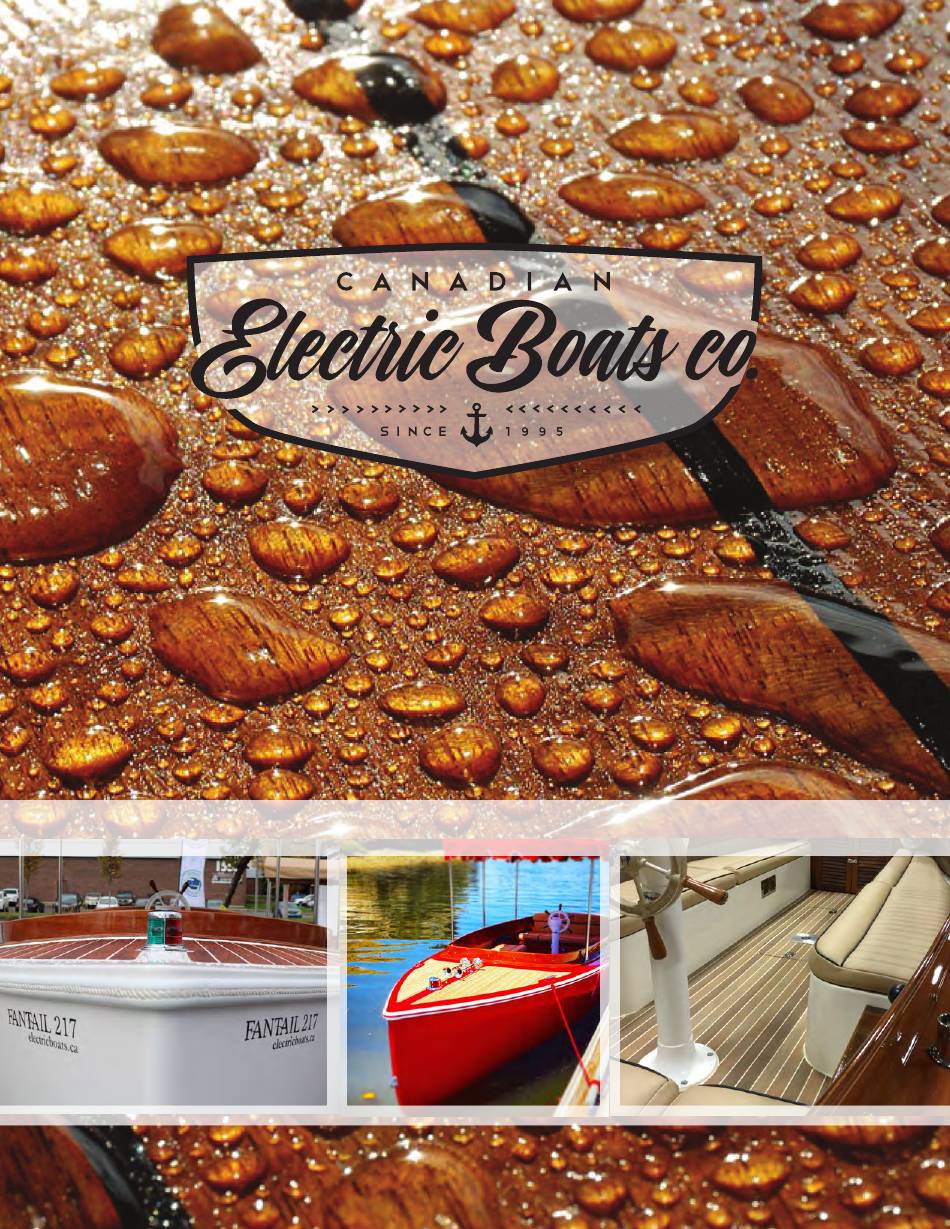

  • Page 1 FANTAIL 217...
  • Page 3 Please always use a trained professional for maintenance, servicing or xing your boat, or for minor modi cations, but please ensure that technicians do not signi cantly modify the aspects of your Fantail 217. When possible, locate a technician that has the written authorization of Canadian Electric Boat Company, or its legal representative, by contacting Canadian Electric Boat Company at 1-866-479-1099 or 1 (450)-472-5515.

  • Page 4: Table Of Contents

    They emphasize security and and safety practices outlined. practical tips and useful insights safety issues of great importance. to maximize your Fantail 217 You can put yourself and your guests experience. in danger if you don’t follow warnings. TABLE OF CONTENT p.16...

  • Page 5: Overview

    1. OVERVIEW BOAT SPECIFICATIONS Maximum speed 9.66 km/h (6 mph) Type of motor Pods Cruising speed 8.05 km/h (5 mph) Motor manufacturer Minn-Kota Autonomy(with 2 batteries) 8-10 hours Motor voltage 48 V Capacity 8-10 places Maximum current 40 A Weight 775 kg (1,705 lbs) Thrust Hull material...

  • Page 6: General Safety

    NEVER EXCEED THE MAXIMUM RECOMMENDED NUMBER OF PERSONS as marked on the Capacity Plate. The Fantail 217 is approved by the Canadian and US Coast Guard for 8 to 10 adults. Make sure that all the seats are properly in place before departure.
  • Page 7 2. GENERAL SAFETY SPEED & RANGE Speed and range in an electric boat are inversely proportional. At high throttle settings, two factors operate to reduce range. First, hull drag follows roughly a square law function – doubling speed requires four times as much power. Second, available battery capacity decreases approximately linearly as the rate of power draw increases –...
  • Page 8 2. GENERAL SAFETY PLEASURE CRAFT OPERATOR CARD (for canadian boaters) The Competency of Operators of Pleasure Craft Regulations require operators of pleasure craft tted with a motor and used for recreational purposes to have proof of competency on board at all times. To learn more about the Pleasure Craft Operator Card, please visit the web site at : www.theoperatorcard.ca CRIMINAL CODE OF CANADA...

  • Page 9: Blige Pump And Water Drainage

    3. BILGE PUMP AND WATER DRAINAGE The Fantail 217 is equipped with an automatic bilge pump. The pump is located in the bottom of the hull, just underneath the stowable panel. The pump can be activated manually, by pushing the bilge pump switch located on the control panels or is activated automatically by the accumula- tion of water and water pressure.
  • Page 10 3. BILGE PUMP AND WATER DRAINAGE DIAGRAM OF BLIGE PUMP AND DRAINAGE SYSTEM DECK 3/4 “ HOSE STERN KEEL Automatic of 1,100 gallons/hr or 4,158 liters/hr Heavy storms could easily ood the cockpit Cracks in the hull will permit water in ltration into bottom CARE AND MAINTENANCE OF BLIGE PUMP •...

  • Page 11: Electrical System

    GENERAL OVERVIEW The electrical harness of your Fantail 217 is built to American Boat & Yacht Council (ABYC) standards. It is design for maximum efficiency and security. Your electric boat is equipped with for or six batteries plugged in series. The outboard electric motor is a 48V, with 36 amps/hr maximum thrust.

  • Page 12: How To Operate Your Electric Boat

    RPM/high torque to cut down on sh-spooking noise—so quiet they’ll never hear you coming. Make sure the motor of your Fantail 217 is designed for use in salt water. If the motor is not designed for use in salt water, we do not recommend putting your boat in the water.
  • Page 13 5. HOW TO OPERATE YOUR ELECTRIC BOAT MAINTENANCE The design of the E-Drive may require occasional cleaning to remove debris or any build-up that may occured between moving parts. After cleaning wipe down with a cloth dampened with an aqueous based silicone spray such as Armor All. The Propeller must be cleaned of weeds and other debris.

  • Page 14: Main Breaker

    Your engine is then fed with electricity. The battery power level indicator will turn on automatically. If the battery power level indicator does not turn on, consult the appropriate section of the Fantail 217 manual for the possible causes. Make sure that the Main Breaker is in the "ON"...

  • Page 15: Helm

    BATTERY GAGE (E-Meter) The Fantail 217 is equipped with a battery power level indicator located on the top consol of the helm. The indicator is automatically activated when the ignition key is inserted in the starter. You will then be able to read the battery power level at any time while your boat is in use.

  • Page 16: Batteries

    The battery charger inlet is located on the dashboard. SMART CHARGER The integrated charger in the Fantail 217 adjusts the exit voltage to ensure that the batteries reach their gas formation threshold and receive a full charge. In high temperatures, the charger will protect the batteries from boiling as a result of overloading.

  • Page 17: Shore Power

    5. HOW TO OPERATE YOUR ELECTRIC BOAT SHORE POWER The battery charging system operates automatically to charge and maintain the batteries. It is recommended to plug in the battery charger whenever the boat is dockside. After fully discharged (at 80% depth of discharge), the charger should be plugged in for at least 12 hours whenever possible. When in storage, it is recommentded to either leave the charger plugged in all the times, or for at least 8 hours monthly to maintain a full charge.

  • Page 18: Accessories

    6. ACCESSORIES CANOPY The canopy roof consists of a light-weight aluminum frame with a Sunbrella covering that is supported by four stainless steel posts. The roof has two zippered openings to make getting in and out of the boat easier. The zippers are functional from inside or outside the boat. With the roof in its lowered position, install the Sunbrella covering onto the aluminium frame using the covering’s Velcro attachments.

  • Page 19: Stowable Table

    6. ACCESSORIES STOWABLE TABLE The Fantail 217 comes equiped with a stowable table. The table post ts into the base plate inserted into oor, and the table itself ts into the table post making it easy to install or store away.

  • Page 20: How To Care For Your Electric Boat

    Proper care and maintenance will help extend the service life of your electric boat. For spare parts, please contact your local dealer or call toll free 1-866-479-1099 to join CEBC’s Consumer Service and Assistance. Your Fantail 217 Electric Boat has been designed to provide you with years of trouble-free service if you perform some basic maintenance. HULL The hull of you electric boat is constructed of gel coated berglass, which generally requires similar maintenance as an automobile body.

  • Page 21: Upholstery

    7. HOW TO CARE FOR YOUR ELECTRIC BOAT UPHOLSTERY (Marine Seats) NORMAL CLEANING In general, most common stains using warm, soapy water and clear water rinses. Moderate scrubbing with a medium bristle brush will help loosen soiling materials from the depressions of embossed surfaces. For more stubborn stains, use the following commonly available mild detergents in accordance with the manufacturer’s instructions: Fantastic or Mr.

  • Page 22: Canopy And Boat Covers

    7. HOW TO CARE FOR YOUR ELECTRIC BOAT UPHOLSTERY (suite) BLOOD OR LEAF RESIDUE Rub any spot with a clean cloth soaked in cool water. If stubborn spots remain, use household ammonia and rinse repeatedly with a clean, wet cloth. Do not use hot water or soapsuds, as this will set the stain. BIRD EXCRETA AND NAUSEA STAINS Sponge the stained area with soapy water containing diluted bleach until the stain is removed.

  • Page 23: Storage

    7. HOW TO CARE FOR YOUR ELECTRIC BOAT Remember to protect the area around your Sunbrella if using a bleach solution. Carpet or other fabrics that are not Sunbrella may have an adverse reaction to the bleach. IF A BOAT COVER IS SUITABLE IN SIZE FOR A WASHING MACHINE, THESE STEPS SHOULD BE FOLLOWED: •...

  • Page 24: Trailering

    For proper trailering, we strongly suggest that your use the special trailers made especially for CEBC’s boats. These trailers have been designed to trailer the Quiétude 156 and the Fantail 217 for short and long distances. CEBC can not cover under warranty damage to a product caused by improper trailering.

  • Page 25: Check List Before Departure

    8. TRAILERING CHECK LIST BEFORE DEPARTURE Wash your trailer after dipping in saltwater. Saltwater is incredibly corrosive. Rinsing o the trailer will greatly prolong your trailer’ s useful life. Check your tire pressure. Trailer tires are di erent from car tires so check the tire sidewall for correct tire pressure (often 50-65 psi - much higher than your tow vehicle).
  • Page 26 8. TRAILERING TRAILER TROUBLESHOOTING GUIDE (SUITE) WINCH - FAILS TO OPERATE • Verify handle is securely fasten to winch and engaged. • Extend cable, rope or strap completely and verify that it is securely fastened to the winch barrel. • Visually inspect gears for signs of wear and replace gears as necessary. WHEELS / HUBS - EXCESSIVE HEAT HEAT WARNING CAUTION...

  • Page 27: Special Saltwater Electric Outboard Motor

    9. SPECIAL SALTWATER ELECTRIC OUTBOARD MOTOR The Fantail 217 comes originally equipped with a saltwater outboard electric motor. This motor is recommended for saltwater use. Always make sure the sacri cial anode is in good condition. Replace the anode if required by visual inspection.

  • Page 28: General Troubleshooting

    10. GENERAL TROUBLESHOOTING Your electric boat can occasionally have some minor mechanical or electrical problems. The following charts will assist you in nding and correcting them. If you suspect a problem not addressed here, please contact you CEBC Dealer. PROBLEM SOLUTIONS THE ENGINE WILL NOT START •...

  • Page 29: Checklists

    11. CHECKLISTS BEFORE DEPARTURE • Check exterior of the vessel for damage, cleanliness and correct waterline • Ensure that hatches, seats and bow storage doors are in place and secure • Inspect lines for wear • Ensure that proper navigational charts and safety equipment is in order •...

  • Page 30: Customer Support And Assistance

    • Date and place of purchase CONSUMER SUPPORT AND ASSISTANCE : 1.866.479.1099 Canadian Electric Boat Company 440 Guindon, suite 106 Sainte-Eustache, QC Canada, J7R 6S5 T: 450.472.5515 F: 450.433.0778 TF: 1.866.479.1099 Sales: 438.403.8680 www.electricboats.ca electricboats.ca Canadian Electric Boat Company (CEBC) CanadianElectricBoatCompany...
