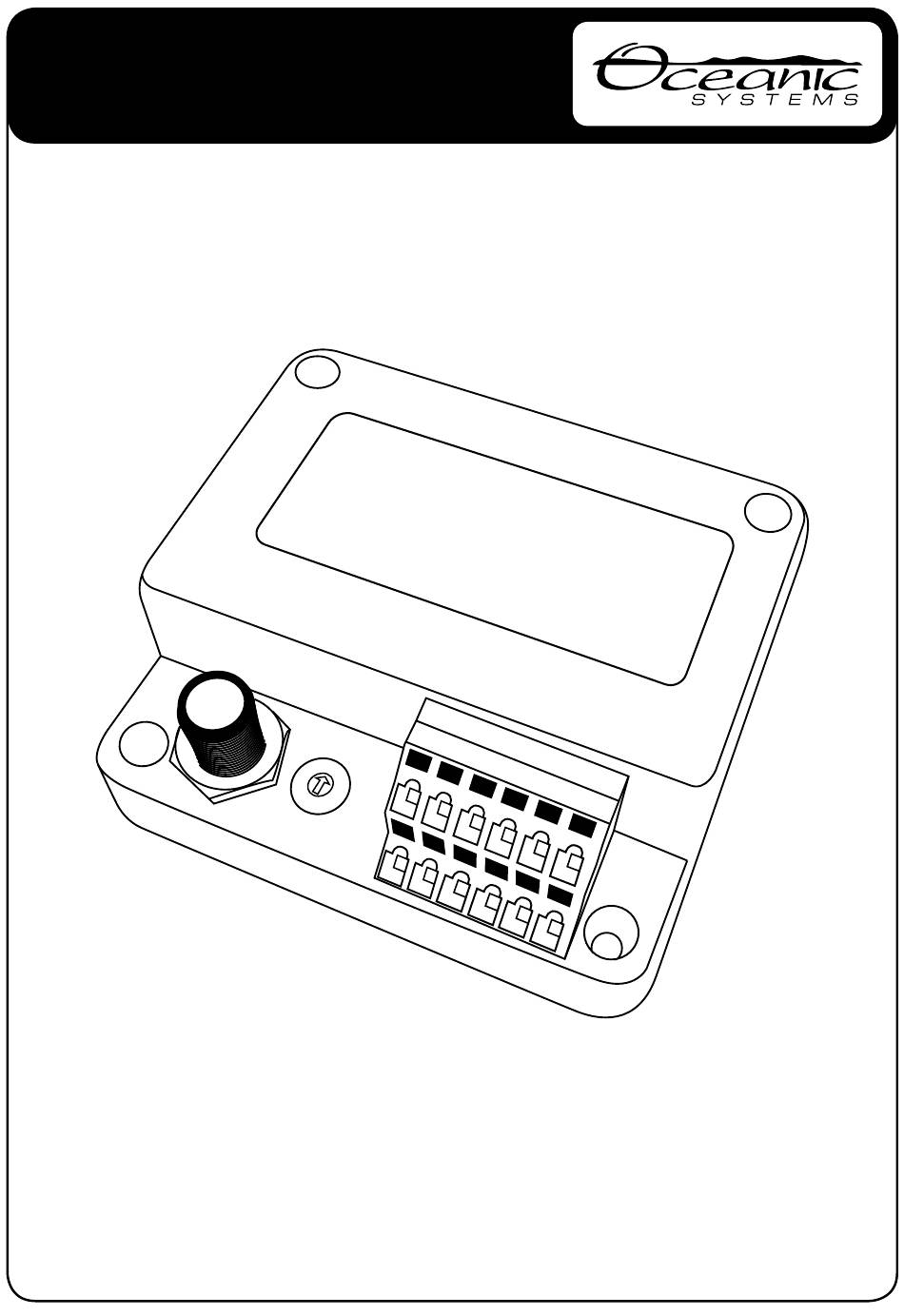

- Page 1 NMEA2000® DC MONITOR Part Numbers: 3410 USER MANUAL Document revision 2.00...
-
Page 3: Table Of Contents
Introduction..........Product Features........... Installation..........Unpacking the box........Mounting the unit.......... Connecting the NMEA2000 Cable......Connecting the sensor cables to the WAGO socket. Calibrating the DC Current Transformer & Shunt... Configuration............ Device Instance..........Battery Type............. Nominal Voltage..........Equalisation............Calibrate to full battery........Peukert Exponent.......... -
Page 4: Introduction
INTRODUCTION The Oceanic Systems NMEA2000® 3410 DC Monitor is designed to monitor any DC source including batteries, PV Cells or Wind Generators on the NMEA2000® network. This unit is designed to operate in a protected marine environment such as an engine room. It is very important that it is installed and set up correctly according to this manual. -
Page 5: Installation
INSTALLATION 2.1 UNPACKING THE BOX You will find the following items in the 3410 shipping box: 1 x 3410 NMEA2000® DC Monitor 1 x 3410 User Manual (This document) 2.2 MOUNTING THE UNIT The unit should be mounted to a flat surface using 4 mounting screws. The unit dimensions and mounting hole locations are shown on the following drawing. -
Page 6: Connecting The Sensor Cables To The Wago Socket
2.4 CONNECTING THE SENSOR CABLES TO THE WAGO SOCKET WARNING: Risk of Electric Shock This device contains potentially hazardous voltages. Ensure that power is removed from all DC circuit that will be connected to the DC monitor. Do not attempt to disassemble the device. This device contains no user serviceable parts. - Page 7 The terminal connections are numbered as follows: 8 10 12 9 11 Terminal 1 Battery Negative - Must be installed Terminal 2 Battery Positive – Must be installed Terminal 3 Current Transformer Black Wire Terminal 4 Current Transformer Green Wire Terminal 5 Current Transformer White Wire Terminal 6...
-
Page 8: Calibrating The Dc Current Transformer & Shunt
CALIBRATING THE DC CURRENT TRANSFORMER & SHUNT Before using the DC Monitor Current Transformer or Shunt for the first time the current input needs to be calibrated for the best accuracy. This is done by ensuring that there is NO current flowing through the center of the transformer or the shunt. -
Page 9: Configuration
4.6 PEUKERT EXPONENT This can be set to a value between 1.0 and 1.5 and controls the state of charge calculation for the best accuracy. This can be set using a suitable Oceanic Systems Display Unit. The default value is 1.25... -
Page 10: Charge Efficiency Factor
This can be set to a value between 5% and 100% to reflect the charging efficieny of the battery for the best state of charge accuracy. This can be set using a suitable Oceanic Systems Display Unit. The default value is 95%. -
Page 11: State Of Charge Resetting
STATE OF CHARGE RESETTING The 3410 always calculates the remaining state of charge even when the NMEA2000 network is not powered. It resets the state of charge to 100% automatically, when the charging current drops below 5A whilst the charging voltage is above a threshold for 15 MINUTES. The unit can also be forced to the 100% value by setting rotary switch to F and pressing the small button next to the Device Instance switch for 5 seconds. -
Page 12: Maintenance
MAINTENANCE • Clean the unit with a soft cloth. • Do not use chemical cleaners as they may remove paint or markings or may corrode the enclosure or seals. • Ensure that the unit is mounted securely and cannot be moved relative to the mounting surface. -
Page 13: Technical Specification
As Oceanic Systems are constantly improving their products specifications are subject to change without notice. Oceanic Systems products are designed to be accurate and reliable however they should only be used as aids to navigation and not as a replacement for traditional navigation aids and techniques. - Page 14 Environmental Parameter Value IEC 60954 Classification Protected Degree of Protection IP40 Operating Temperature -25°C to 50°C Storage Temperature -40°C to 70°C Relative Humidity 93%RH @40° per IEC60945-8.2 Vibration 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2 per IEC 60945-8.7 Electromagnetic Emission Conducted and Radiated Emission per IEC 60945-9 Electromagnetic Immunity Conducted, Radiated, Supply, and ESD per IEC 60945-10 Safety Precautions...
-
Page 15: Warranty
Systems sole obligation hereunder, provided product is returned pursuant to the return requirements below, shall be limited to the repair or replacement, at Oceanic Systems option, of any product not meeting the above limited warranty and which is returned to Oceanic Systems; or if Oceanic Systems is unable to deliver a replacement that is free from defects in materials or workmanship, Purchaser’s... -
Page 16: Technical Support
Email: sales@osukl.com Web: www.osukl.com Copyright © 2019 Oceanic Systems(UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so product specifications are subject to change without notice. Oceanic Systems products are designed to be accurate and reliable. However, they should be used only as aids to vessel monitoring, and not as a replacement for traditional navigation and vessel monitoring techniques.
