P V 4

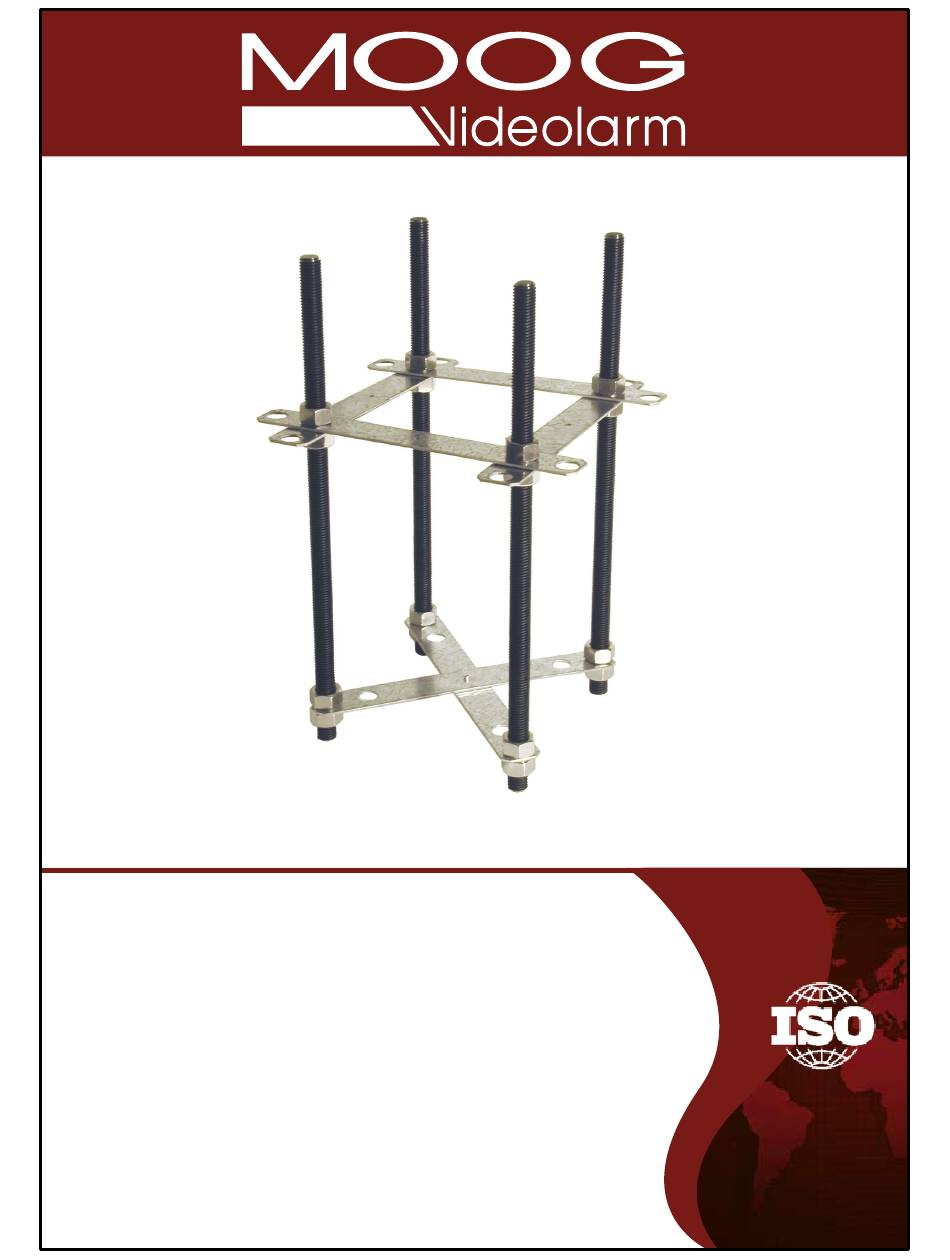

Anchoring Jig
Installation and Operation Instructions for the following models:
Before attempting to connect or operate this product,
please read these instructions completely.
www.videolarm.com
CERTIFIED
81-IN5222
07-09-2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOOG PV4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moog Videolarm MOOG PV4

  • Page 1 © 2009, Videolarm, Inc. All Rights Reserved P V 4 Anchoring Jig www.videolarm.com Installation and Operation Instructions for the following models: CERTIFIED Before attempting to connect or operate this product, 81-IN5222 please read these instructions completely. 07-09-2010...
  • Page 2: Limited Warranty

    IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS 1. Read Instructions - All the safety and operating instructions should be read before the unit is operated. CAUTION 2. Retain Instructions - The safety and operating instructions should be retained for future reference. RISK OF ELECTRIC SHOCK! 3.
  • Page 3: Standard Installation Procedure

    I. Pole Installation Instructions MODEL: Brackets, Mounts, and Poles STANDARD INSTALLATION PROCEDURE Requires MODELS: PV4 Anchor Jig Please read these instructions carefully before proceeding, and heed all cautions. NOTE: If you'll be using the optional PV4 anchor jig, see the attached instructions for assembly of the jig.
  • Page 4 II. Site Preparation • Special attention must be paid to the size of the conduit and its location within the jig and concrete foundation. The Wiring Conduit can be no more than 1" in diameter. Use reducers if necessary. Also, make sure that the Wiring Conduit is in the center of the Anchor Jig during installation.
  • Page 5 X. Wind Load Rating Report The PolEvator™ has undergone rigorous testing to assure its quality and longevity. As part of this procedure, we had its Wind Loading capabilities tested. Below is the certifi ed result of this test. Deflection Curve for PV16 4.50 4.17 4.00...
  • Page 6: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supples, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
