phytron SINCOS Manual

Linear stepper motor power stage

Advertisement

Quick Links

SINCOS
Linear
Stepper Motor Power Stage
Manual 2066-A006 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SINCOS and is the answer not in the manual?

Questions and answers

Summary of Contents for phytron SINCOS

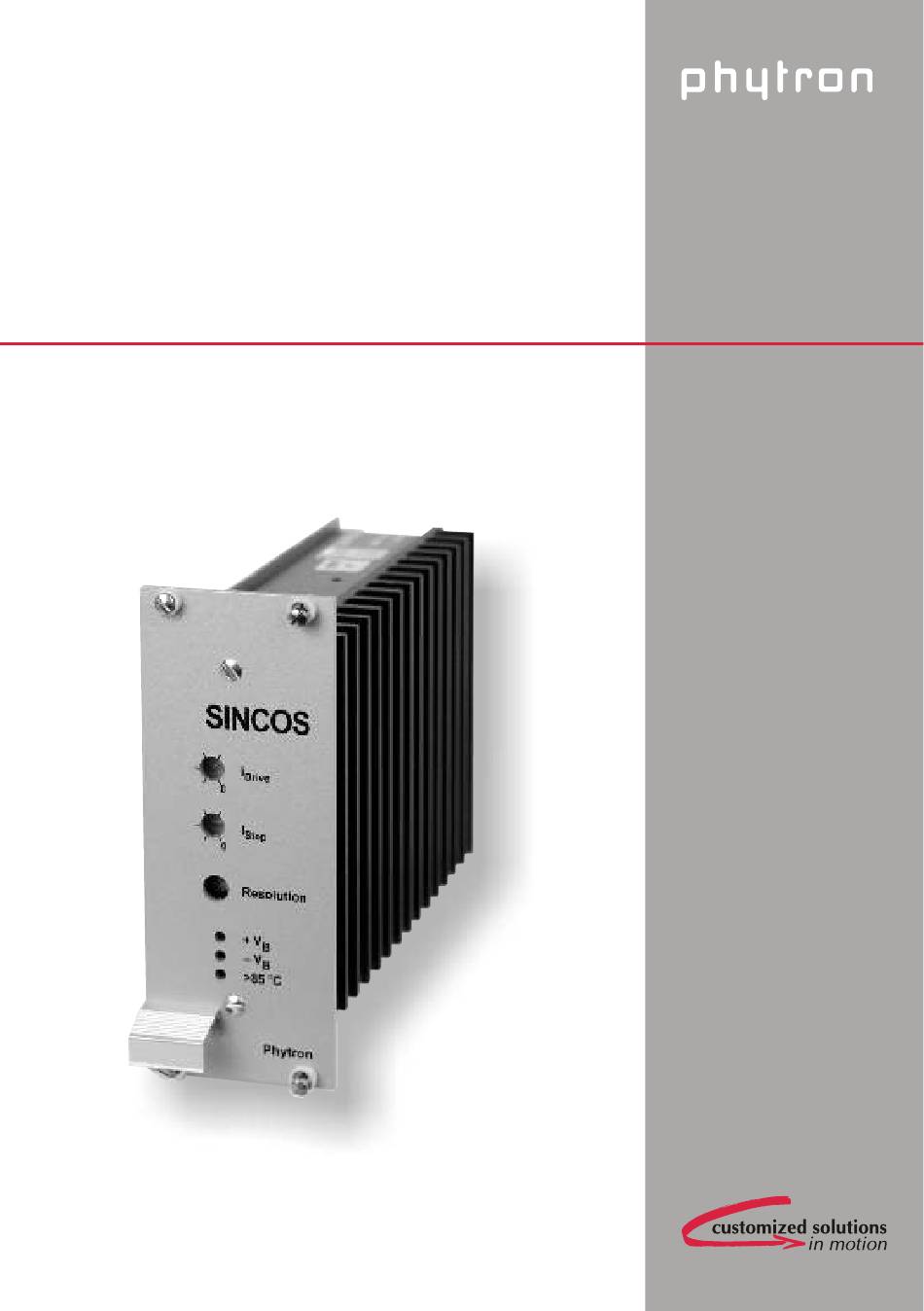

  • Page 1 SINCOS Linear Stepper Motor Power Stage Manual 2066-A006 GB...
  • Page 2 SINCOS Linear Stepper Motor Power Stage for Bipolar Control Mode Manual 2066-A006 GB...
  • Page 3 Manual SINCOS © 2002 All rights with: Phytron-Elektronik GmbH Industriestraße 12 82194 Gröbenzell, Germany Tel.: +49(0)8142/503-0 Fax: +49(0)8142/503-190 Every possible care has been taken to ensure the accuracy of this technical manual. All information contained in this manual is correct to the best of our knowledge and belief but cannot be guaranteed.
  • Page 4: Table Of Contents

    Contents 1 SINCOS Stepper Motor Power Stage..................4 1.1 Step Resolution/Current Shapes ..................5 1.2 Motor Currents.........................6 1.3 LED Display ........................6 2 Technical Data........................7 2.1 Dimensions ........................8 2.2 Pin Assignment........................ 9 3 Principle of Operation ......................10 4 Inputs .............................
  • Page 5: Sincos Stepper Motor Power Stage

    Manual SINCOS 1 SINCOS Stepper Motor Power Stage SINCOS is a linear stepper motor power stage particularly developed for applications which require very high step resolution, such as: measuring tables, machine tools, graphic instruments, etc. SINCOS is specially recommended for applications where chopping is not acceptable.
  • Page 6: Step Resolution/Current Shapes

    1.1 Step Resolution/Current Shapes SINCOS enables 15 different operating modes: Six step resolutions from full step up to 1/20 step and four different current shapes. So you can always select an adapted operating mode for each motor type and application.
  • Page 7: Motor Currents

    1.3 LED Display Green LED +V / –V SINCOS requires a dual power supply of maximum 21V / 5A. The green LEDs show that both supply voltages are OK. Red LED > 85 °C The power stage is short-circuit proof. A temperature monitoring circuit cuts off the current if the heat sink temperature is above 85 °C.
  • Page 8: Technical Data

    2 Technical Data Stepper motor for 2-phase stepper motors, wired as 8-, 6- or 4-lead motor Steps/revolution selectable by front panel switch RESOLUTION or external binary setting by the SELECT inputs for a 200-steps motor: 200, 400, 800, 1000, 2000, 4000 steps/rev.
  • Page 9: Dimensions

    Dimensions Europe size 100*160 mm Connector 32-pole acc. to DIN 41612, model D Accessories Front panel (10 TE) with handle NTS 10 power supply unit NBS SINCOS power supply kit Mating connector 2.1 Dimensions Fig. 3: Dimensions MA 2066-A006 GB...
  • Page 10: Pin Assignment

    2.2 Pin Assignment Fig. 4: Pin assigment of the 32-pole connector Manual 2066-A006 GB...
  • Page 11: Principle Of Operation

    Manual SINCOS 3 Principle of Operation To reach all intermediate positions between two full steps, both phase currents of a 2- phase stepper motor have to be controlled and phase-shifted by 90 degrees. This control is effected by an EPLD: By each control pulse a counter will be incremented or decrement- ed in function of the direction of rotation.
  • Page 12 Fig. 5: Schematic diagram Manual 2066-A006 GB...
  • Page 13: Inputs

    Manual SINCOS 4 Inputs The inputs include internal 4.7 kΩ pull-up resistors and are designed for open collector control signals. Fig. 6: Input wiring 4.1 Control Pulses One control pulse provokes one motor step. With the falling signal edge the direction input signal is stored and the drive current switched ON.
  • Page 14: Motor Stop

    Fig. 7: Time diagram: control pulses and motor direction The control pulse signal width should be at least 2 µs (maximum frequency 200 kHz). The direction input must not be changed within 1 µs before and 1 µs after the falling edge of the control pulse signal (see time diagram).
  • Page 15: Select A, B, C, D

    Manual SINCOS 4.6 Select A, B, C, D Via four external data lines, step resolution and current shapes can be set instead of using the selection switch. For enabling setting by the inputs, the upper front panel selection switch has to be set to position F.
  • Page 16: Overtemperature Output

    The losses can be reduced as well as the heat sink temperature, by applying a lower supply voltage. 5 Supply Voltage The SINCOS unit requires a dual supply voltage in the ranges of –8 to –21 V and +8 to +21 V. The voltage value depends on the desired run frequency.
  • Page 17: Phase Current Setting

    0 to 100% of the maximum value. As the following figure shows, the true values can be measured with instruments. The SINCOS has to be set to the full step mode! Fig. 9: Phase current measuring 5.2.1 Stop Current...
  • Page 18: Motor Wiring Schemes

    6 Motor Wiring Schemes Fig. 10: Motor Connection The letters correspond to the connector pin assignment and refer to Phytron stepper motors (see motor connection leaflet). Manual 2066-A006 GB...
  • Page 19: To Consider Before Installation

    By persons without proper training and qualification serious damages to devices and persons might result! 7.2 Safety Instructions 1. Check the output voltages of the supply unit before connecting the SINCOS rear connector. Inverted supply voltage leads would immediately cause damage of the power stage.
  • Page 20: Warranty

    Danger of injury if touching the surface ! 8 Warranty The SINCOS stepper motor power stages are subject to Phytron's legal warranty. Phytron will repair or exchange units which show a failure due to defects in material or caused by the production process.
  • Page 21: Index

    Manual SINCOS Index Applications 4 Operating current 16 Connector 9 Overheat monitoring 4 Current setting 16 Overtemperature 15 Current shape 5 Pin assignment 9 Current shape setting 14 Power stage 4 Dimensions 8 Power supply unit 15 Direction input 12...
  • Page 22 Phytron-Elektronik GmbH • Industriestraße 12 • 82194 Gröbenzell, Germany Tel. +49(0)8142/503-0 • Fax +49(0)8142/503-190 • E-Mail info@phytron.de • www.phytron.de Phytron, Inc. • 600 Blair Park Road Suite 220 • Williston, VT 05495 USA Tel. +1-802-872-1600 • Fax +1-802-872-0311 • Email info@phytron.com • www.phytron.c om...
