Eurogauge LAS31Z1 User Manual

User Guide
LAS Level Alarm System

Specification

LAS31Z1 - AC/DC Version
Supply:
85 to 265Vac; 50/60Hz; 4VA, +24Vdc
Indicators:
Tank Full - Red
Tank Empty - Red
Bund Full - Red
Power - Amber
Controls:
Test Button simulates alarm conditions
Mute Button mutes alarm sounder
Relays: SPCO 250V; 3A non-inductive load. de-energises upon
alarm – remains de-energised until alarm clears
Sounder: Internal piezo-electric sounder (90db @ 0.6metre)
Sensor:
Floatswitch x 3, 5m cable with 1" BSP tank connector
Housing: Polycarbonate ABS enclosure
Dimensions: 176mm x 125mm x 76mm
Protection: IP65
Cable Entry: 5 Pg11 glands for 6-8mm cable
Weight: 0.60kg
WARNING: NOT FOR USE ON LIQUIDS IN STORED WITHIN HAZARDOUS AREAS
A Flameproof version (EEX D) is available to order, please contact Afriso Eurogauge Ltd for further details.
Note: We reserve the right to amend these specifications without prior notice.
Unit 4, Satellite Business Village
This is to certify that the above named product(s) fully complies with the
Electromagnetic Compatability Directive 89/336/EEC and the Low Voltage Directive
Fleming Way, Crawley
73/23/EEC of the European Union and with the requirements of the normative
West Sussex. RH10 9NE sections of the following harmonised European Standards.
Tel: +44 (0)1293 658360
EN61000-6-3: Electromagnetic Compatibility - Generic Emission Standard.
Fax: +44 (0)1293 528270
EN61000-6-1: Electromagnetic Compatibility - Generic Immunity Standard.
www.eurogauge.co.uk
EN 61010-1:
sales@eurogauge.co.uk
· RADAR and MICROPULSE
· ULTRASONICS
Signed :
· PRESSURE TRANSMITTERS
· VIBRATION SWITCHES
· CAPACITANCE
· Float Level Switches
Position:
· Conductivity
Date:
· Rotary Paddle
· Magnetostrictive
This declaration applies to the following part number(s):
· Self-powered gauges
LAS31Z1: LAS 3 85-265Vac/24Vdc version.
· Oil/water Alarms
LAS33Z1: LAS 3 9V Battery Version.
· Leak Detectors
· Pressure and Temperature
EUROGAUGE
...the level people
LAS33Z1 - Battery Version
Battery:
+9V PP3 Alkaline 6 LR 61, 6 AM 6, MN 1604
Indicators:
Tank Full - Red
Tank Empty - Red
Bund Full - Red
Controls:
Test Button simulates alarm conditions
Mute Button mutes alarm sounder
Sounder: Internal piezo-electric sounder (90db @ 0.6metre)
Sensor:
Floatswitch x 3, 5m cable with 1" BSP tank connector
Housing: Polycarbonate ABS enclosure
Dimensions: 176mm x 125mm x 76mm
Protection: IP65
Cable Entry: 5 Pg11 glands for 6-8mm cable
Weight: 0.60kg
Declaration of Conformity
LAS Series Level Alarm System
Residential, Commercial and Light Industry.
Residential, Commercial and Light Industry.
Safety requirements for electrical equipment for measurement,
control and laboratory use.
D. C Ward
Technical Services Manager
12/12/2005
4/4
EUROGAUGE
...the level people

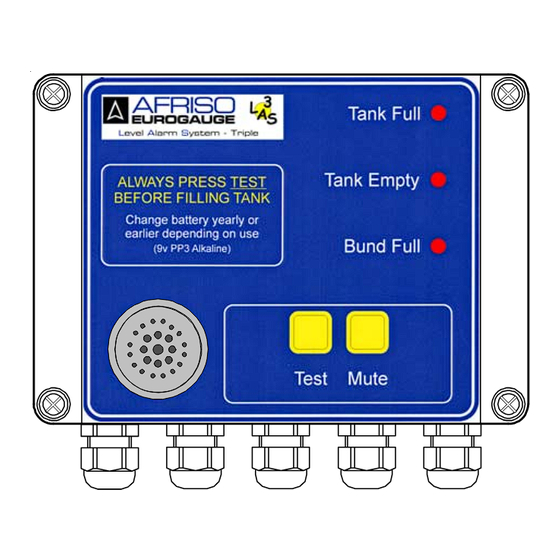

The LAS3 Alarm provides Tank Full, Tank Empty and Bund Full audible and visual alarms for oil storage tanks.
The LAS31Z1 is powered from a 85 to 265Vac or 24Vdc supply and the LAS33Z1 from a 9V replaceable battery.
Simple floatswitches mounted in the tank and bund area are used to provide the alarm signals.
The LAS31Z1 provides a continuous display of alarm conditions while the LAS33Z1 is powered on by an alarm
signal or whenever the Test button is pressed. Once the LAS33Z1 has been powered on by an alarm signal the
corresponding alarm lamp lights and the sounder operates. If the alarm is not acknowledged by pressing the
Mute button the unit will sleep after 5 minutes and will wake every hour operating the sounder for 5 seconds and
the alarm lamp for 10 seconds. This continues until the alarm condition is cleared or until the battery is exhausted
(around 240hrs with a new battery). Acknowledging the alarm immediately turns the sounder off and the alarm
lamp off after 30 seconds and puts the LAS33Z1 into sleep mode. When there are no alarms present the
LAS33Z1 is switched off.
On pressing the Test button all alarm lamps light and the sounder operates, releasing the Test button turns
the alarms off. Any existing alarms will be displayed for 30 seconds before turning off.
Tank Empty
Alarm Point
LAS3 Typical Installation
User Guide
LAS Level Alarm System
LAS Unit - Battery
or AC/DC Version
Tank Full
Alarm Point
Tank
FillPoint
Bund Full
Alarm Point
1/4
