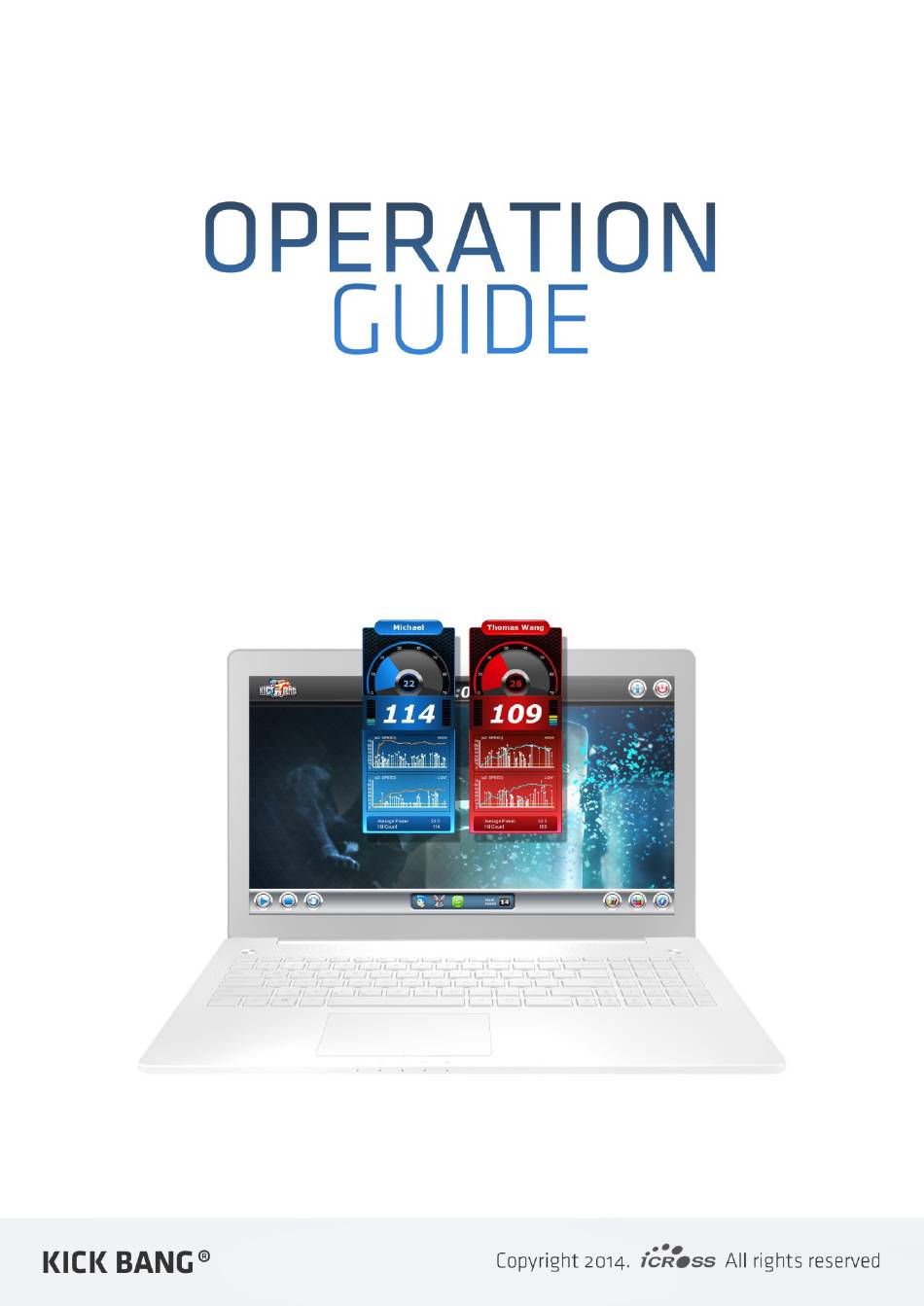

Summary of Contents for iCross Kick Bang
-
Page 2: System Hardware
Technology, Inc. 1. System Hardware Fig.1 A kick bag stand is equipped with a pair of kick mitts built-in a controller. A Kick Bang program of a PC handles up to 4 sets of kick bag stands with a receiver. 1/14... - Page 3 Operation Guide of Kick Bang iCROSS Technology, Inc. 1-1. How to handle a controller of a kick mitt Fig.1.1 ① Power On - Press a power switch for over 1 second until hear bleep sound. - Power LED will be On ②...
- Page 4 Operation Guide of Kick Bang iCROSS Technology, Inc. 1-2. How to recharge a controller ① Plug the end connector of an adapter in a mini USB port of a controller. ② It takes about 2 hours for full-charge. ③ Green LED is on while recharging and off after complete recharging.
- Page 5 Operation Guide of Kick Bang iCROSS Technology, Inc. 1-3. How to connect a receiver to a computer Fig.1.3 Connect a receiver to a USB port of a computer. ① First time to connect a receiver, a device driver of the receiver will ②...
- Page 6 Technology, Inc. 2. Start Kick Bang After preparing necessary system hardware and confirming their connections, execute Kick Bang program. (* Please install Kick Bang program with a setup USB provided, referring to a setup guide of Kick Bang.) 2-1. Startup Fig.2.1 ①...
- Page 7 Operation Guide of Kick Bang iCROSS Technology, Inc. ⑨ Historical data function menu button ⑩ Game mode function menu button ⑪ Setting function menu button ⑫ System information function menu button ⑬ Exit program function menu button 2-2. Configuration and Setting...
- Page 8 Operation Guide of Kick Bang iCROSS Technology, Inc. ⑤ On/Off option of button click sound effect ⑥ On/Off impact sound effect ⑦ On/Off human voice announcement of impact power level ⑧ Control speaker volume ⑨ Control speed of human voice ⑩...
- Page 9 Operation Guide of Kick Bang iCROSS Technology, Inc. 2-3. Game Mode Clicking game mode function menu button on the bottom of the screen, a game mode screen (Fig.2.3) opens. You can decide a grade of game to play by specifying player(s).
- Page 10 Operation Guide of Kick Bang iCROSS Technology, Inc. 2-4. Ready to Start Game Fig.2.4 Kick bags selected are shown on the main screen with environment you set. Everything is ready to start. Clicking start game function menu button , a game starts with buzzer sound after count down delay time.
- Page 11 Operation Guide of Kick Bang iCROSS Technology, Inc. 2-5. During Playing Game Fig.2.5 ① Player’s name ② Maximum power level record ③ Power gauge and level of last impact ④ Points, number of impacts stronger than valid power level ⑤ Power gauge of HIGH kick mitt ⑥...
- Page 12 Operation Guide of Kick Bang iCROSS Technology, Inc. 2-6. End of Game Fig.2.6 When a game is over, results and summary of the game is displayed on a popup window. 11/14...
- Page 13 Operation Guide of Kick Bang iCROSS Technology, Inc. 2-7. Historical Data of Games Clicking historical data function menu button on the bottom of the screen, a historical data screen (Fig.2.7) opens. Fig.2.7 Initially all of games of the day are listed on the right list board.
- Page 14 Operation Guide of Kick Bang iCROSS Technology, Inc. 2-8. Result View Screen Fig.2.8 ① Back to historical data screen ② Print out details of the game Historical data of the game is summarized and displayed on this screen. You can go back to the historical data screen by clicking ‘BACK’ button and also can make hard copy of details of the game through a printer by clicking ‘PRINT’...
- Page 15 Connect the computer that the Kick Bang program is installed to the internet, and execute the Kick Bang Updater. Both programs of Kick Bang Updater and Kick Bang are located in the same folder of the computer. 3-1. Execute Kick Bang Updater, Check & Update Fig.3.1 Check for updates by clicking check button.
