ANTIFERENCE ATR269 User Manual

Professional cable tester
Hide thumbs

Advertisement

Quick Links

Download this manual
PROFESSIONAL CABLE TESTER
USER GUIDE
ATR269

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATR269 and is the answer not in the manual?

Questions and answers

Summary of Contents for ANTIFERENCE ATR269

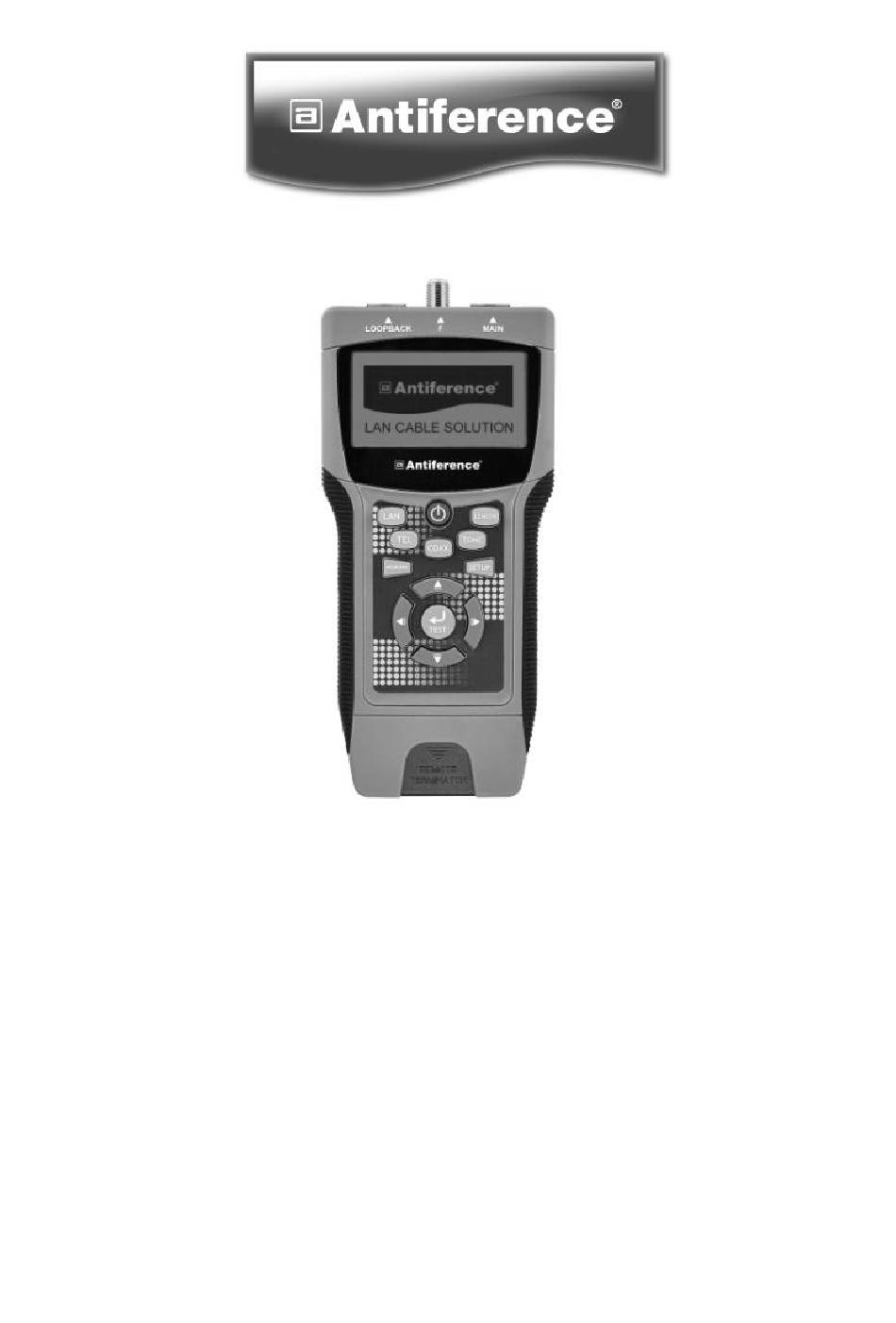

  • Page 1 PROFESSIONAL CABLE TESTER USER GUIDE ATR269...

  • Page 3: Specifications

    Specifications: Name Professional Cable Tester Display LCD Module (64 mm x 33 mm) Connector RJ45, RJ12 ( RJ11 ) & F connector type (1) LAN . (2) TEL . (3) COAX . (4) TONE . (5) LENGTH .(6) TEST . Button (7) POWER .
  • Page 4 Input Protection against excess voltage, transients ringer signal protection Physical 195 mm (L) , 90 mm (W) , 40 mm (H) Dimension Operating Temperature: 0° to 50° C ( 32° to 122° F ) Storage Temperature: -10° to 60° C (14° to 140° F ) Environmental Humidity: 10 % to 90 % non-condensing F to BNC Adapter * 2 pcs, 9 Volt battery * 2 pcs, RJ45/RJ11 Adapter...

  • Page 5: Operation

    Operation * Press the POWER ON button, Start up screen displays as below: Select required mode: Press ▲▼ KEY to select which mode to LAN Mode: test then press TEST KEY to start testing. LAN MODE has 2 modes – MAIN to LOOPBACK &...
  • Page 6 ● FTP : Shielded : UTP : Unshielded. ● 0 : Shielded. ● LOOP: LAN cable connected from MAIN connector to LOOPBACK connector. ● REMOTE: LAN cable connected from MAIN connector to remote terminator connector. * If cable is OPEN circuit or disconnected, the display shows FAIL as below : ●...
  • Page 7 (2). Testing from MAIN connector to REMOTE terminator: LAN cable should be connected from MAIN to REMOTE terminator. Test Function: (a). Displays PASS , OPEN , SHORT , CROSS etc. (b). Test FTP or UTP LAN cable. (c). When display shows OPEN FAIL, it displays the distance from the MAIN connector to the broken point.
  • Page 8 * If LAN cable is CROSS display shows FAIL as below: ● The CROSS cable’s numbers will blink showing incorrect cable arrangement . (3). Memory function in the LAN Cable Test Mode It is possible to memorize up to 8 results of a LAN cable test. (a).
  • Page 9 (c). Once MR-8 is reached, all memories are full and no further test results may be saved. Reviewing the Memories. (a). To enter memory mode press and hold the MEMORY KEY for 3 seconds until the memory menu is displayed on the LCD screen. (b).
  • Page 10 Erasing Memories. (a). Enter memory mode by pressing the MEMORY KEY for 3 seconds. (b). Press the TEST KEY to enter the erase function. Clearing ALL memories: Press ◄ Key to clear ALL memories. The LCD screen will display MR-0 indicating no memories are saved.

  • Page 11: Tel Mode

    TEL Mode : TEL MODE has 2 modes – MAIN to LOOPBACK & MAIN to REMOTE TERMINATOR. 1. Testing from MAIN connector to LOOPBACK connector: Connect TEL cable from MAIN to LOOPBACK. Test Functions: (a). PASS , OPEN , SHORT , CROSS , SPLIT etc. (b).
  • Page 12 In the case of an OPEN FAIL: If the display shows OPEN FAIL then there is an open circuit and the message will display as below and the indicated pin number will blink. In the case of a SHORT FAIL. If the display shows SHORT FAIL then there is a short circuit and the message will display as below and the indicated pin number will blink.
  • Page 13 Testing from MAIN to REMOTE TERMINATOR: Connect TEL Cable between MAIN & TERMINATOR. ● To select the type of TEL cable by Press ▲▼ key in TEL MODE. Then press the TEL Key or TEST key to begin the test. When the test is complete, the results will be displayed on the LCD screen.
  • Page 14 In the case of a SHORT FAIL. If the display shows SHORT FAIL then there is a short circuit and the message will display as below and the indicated pin number will blink. In the case of a CROSS FAIL. If the display shows CROSS FAIL then there is a cross wire and the message will display as below and the indicated pin number will blink.
  • Page 15 Reviewing the Memories. (c). To enter memory mode press and hold the MEMORY KEY for 3 seconds until the memory menu is displayed on the LCD screen. (d). Press the ▲▼ Key to select the required memory. Erasing Memories. (c). Enter memory mode by pressing the MEMORY KEY for 3 seconds. (d).
  • Page 16 COAX Mode : COAX cables can only be tested from MAIN connector to REMOTE terminator connector. Test Functions : (a). PASS 、 OPEN 、 SHORT etc. Display FAIL . (b). When display shows OPEN FAIL, the distance from MAIN connector to broken point will be shown. * COAX MODE shows initial display as below: * Press COAX KEY or TEST KEY to start test.
  • Page 17 Test Result : * If COAX cable is correctly connected, the display shows PASS as below: * If COAX cable is OPEN, the display will show FAIL as below: * If COAX cable is SHORT, the display will show FAIL as below: (6).
  • Page 18 . Reviewing the Memories. (e). To enter memory mode press and hold the MEMORY KEY for 3 seconds until the memory menu is displayed on the LCD screen. (f). Press the ▲▼ Key to select the required memory. Erasing Memories. (e).

  • Page 19: Tone Mode

    Tone Mode: In order to detect a cable’s broken point, the cable tester can transmit an audio frequency and then a probe may be used to determine the exact location. Press TONE KEY and the display shows as below: ● Press ◄ ► KEY to select which pair the TONE output signal will transmit from. 1 indicates TONE signal output transmits on pair 1.
  • Page 20 Calibration can be carried out in either LAN or COAX mode. (refer to SETUP MODE for this operation). 1. Testing LAN cable length: connect a LAN cable connected from MAIN connector to open. Press LENGTH KEY and display will show as below: ●...
  • Page 21 2. Testing COAX cable length: connect a COAX cable connected from MAIN connector to open. * Press the LENGTH KEY and then the ▼ KEY to select COAX cable mode. * Display will show COAX mode as below: * Press LENGTH KEY or TEST KEY to start test. * Test results will display as below: * If COAX cable is connected from MAIN connector to REMOTE terminator then the display will show “KEEP OPEN”...
  • Page 22 Reviewing the Memories. (g). To enter memory mode press and hold the MEMORY KEY for 3 seconds until the memory menu is displayed on the LCD screen. (h). Press the ▲▼ Key to select the required memory.

  • Page 23: Setup Mode

    Erasing Memories. (g). Enter memory mode by pressing the MEMORY KEY for 3 seconds. (h). Press the TEST KEY to enter the erase function. Clearing ALL memories: Press ◄ Key to clear ALL memories. The LCD screen will display MR-0 indicating no memories are saved.
  • Page 24 2. LAN Length adj setting: Press ▼ KEY to enter LAN length adj setting. Display will show as below: (TEST KEY will blink) * Connect a LAN cable with a known length from MAIN connector to open. (For Example: 100m) * Press TEST Key to measure the length.
  • Page 25 * Connect a COAX cable with a known length from MAIN connector to open. (For Example: 100m) * Press TEST Key to measure the length. * The test result will be displayed as below: ● Press ◄ ► KEY to adjust the value to the same as known length cable if required. ●...
  • Page 26 ● Press ◄ ► KEY to change the setting. (Selected value will blink) ● Press MEMORY KEY to save the setting. ● Press ▲▼ KEY to move to last or next setting. 6. Restore default values: ● Press ▼ KEY to enter RESTORE DEFAULT value setting. Display will show as below: ●...
  • Page 28 ※ Unit will power off with no action after 5 minutes in ALL modes except TONE MODE. ※ If unit is left in TONE MODE it will power off after 30 minutes. Antiference Limited 2019 All rights reserved. Taiwan/China Patented.
