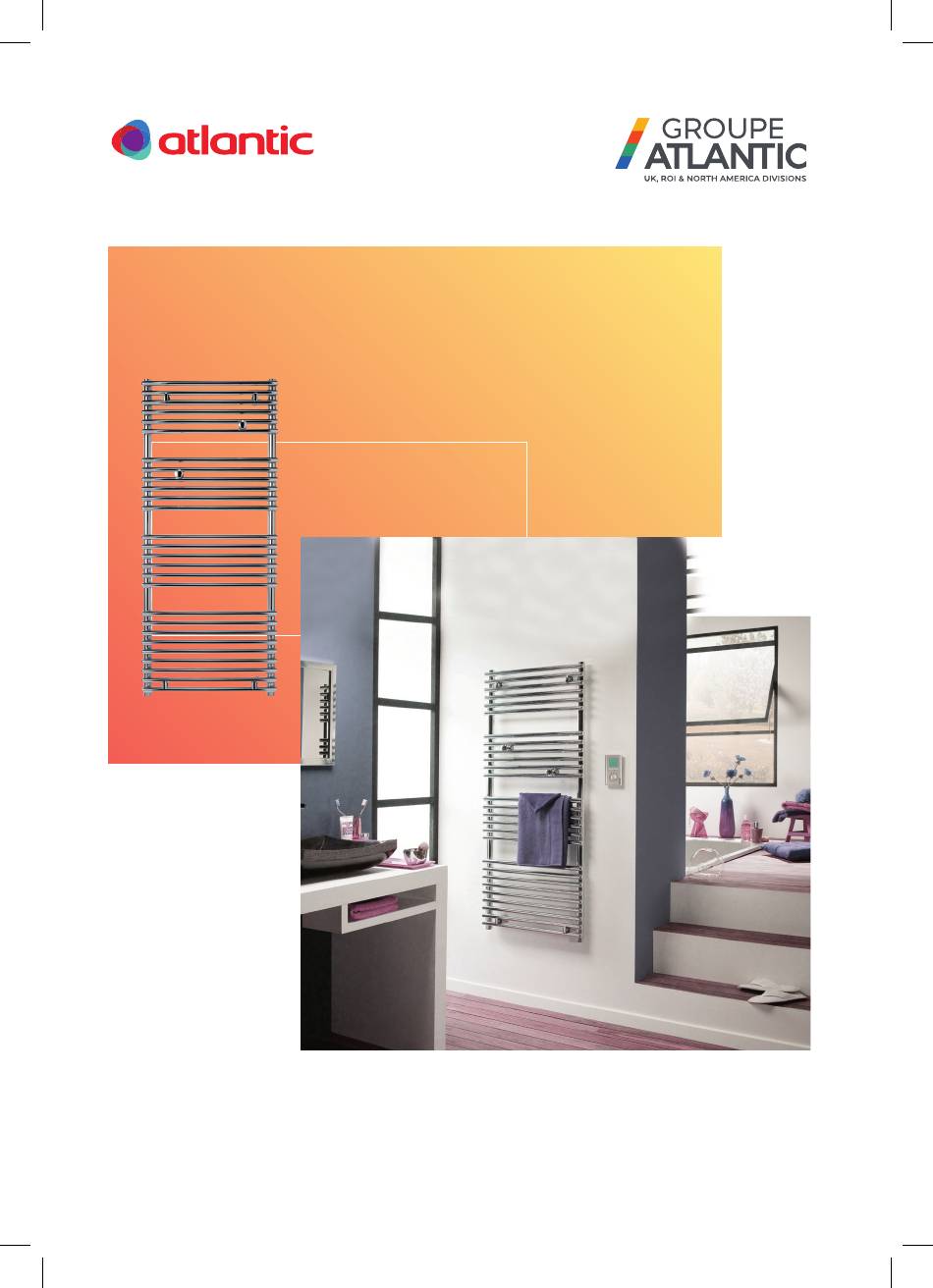

Timelis
ELECTRIC TOWEL WARMER
WITH REMOTE PROGRAMMER
All electrical appliances produced for the Company are guaranteed for one year against faulty material or workmanship. This applies only if the appliance has
been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect,
damage or modified or repaired by any person not authorised by the Company. This guarantee is offered to you as an extra benefit and does not affect your legal
rights. The correct electricity supply voltage is shown on the rating label attached to the appliance. Reasonable care has been taken to ensure that this guide is
accurate at the time of printing. In the interest of progress the Company reserve the right to vary specifications from time to time without notice.
1
Advertisement
Related Manuals for Atlantic Timelis
Summary of Contents for Atlantic Timelis
- Page 1 Timelis ELECTRIC TOWEL WARMER WITH REMOTE PROGRAMMER All electrical appliances produced for the Company are guaranteed for one year against faulty material or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by the Company.
-
Page 2: Installation
Installation 1/ Preparing to install the heated towel rail Location of the device - This device was designed to be installed in residential premises. In any other case, please call your distributor. - Installation must comply with the standards currently enforced in the country of use. - Locate the heater within minimum distances from obstacles. - Page 3 2/ Connecting the device - The device must be supplied with 230V, 50Hz. - Mains connection must be ensured using the 3-wire cable factory fitte to the heater , through a connecting box. In damp premises, such as bathrooms and kitchens, install the connecting box at least 25cm from the ground.
- Page 4 Fixing the heated towel rail to the wall Unfasten the carton’s flaps and place it against the wall with the lower flap folded back and resting flat on the floor. Prick out the four drill holes though the packaging (without drilling) and then re- move the packaging.
- Page 5 Screw the sup- Fit the towel- ports onto the drying radiator tubes without on the wall in blocking them. the sheaths. Check their posi- Screw down tion by putting each of the them with the locking blocks. towel-drying ra- Put the caps diator into the on the end of sheaths.
- Page 6 5/ Installing the control unit Location To correctly control the heating, the thermostat must measure an ambient temperature that is the most re- presentative of your house.As the temperature probe is in the transmitter's unit, you must place the unit: - in the bathroom, - fixed on a wall placed on a shelf or a piece of furniture, that can be accessed by someone measuring 1.50m,...
- Page 7 Parameters 1/ Setting the thermostat Turn the knob to Stop and press the right button down for 5 seconds until H200 vx:xx is displayed (maintenance menu only to be used by the installer). Press OK. CF01 appears on the screen. 5 sec.
- Page 8 CF04 - Not Used Press OK to move onto the next menu. CF05 - Not Used Press OK to move onto the next menu. CF06 - Associating the receiver(s) To associate the receiver, hold the magnet on the receiver's de- Light tection zone for about 3 seconds, until the red light flashes.
-
Page 9: Using The Device
Using the device You can operate your heated towel rail in several modes, whatever the type of controls you have cho- sen (manual or programmed) : Auto mode : your heated towel rail will automatically switch between Eco mode and comfort mode, de- AUTO pending on the time slots programmed for each day of the week. - Page 10 1/ Setting the time Hour Turn the knob to the days blink and press + or – to choose the day of the week (1. Monday, 2.Tuesday, 3.Wednesday..7.Sunday) Press OK to confirm. Minutes The hour blinks and press + or - to set it and press OK to confirm Do the same thing for the minutes.
- Page 11 4/ Automatic mode (AUTO) Turn the knob to AUTO. Current instruction (ex: comfort) The hour Moderate Request of stoking temperature or programmed Boost mode Information about the (see below) ambient temperature When the device is first started up, the programmed temperature is displayed (the symbol appears above the °C indicating that this is the measured temperature).
- Page 12 The duration of the boost mode blinks. Set the duration using + or - (e.g. 1h00). Confirm with OK. The boost message appears. To cancel the boost mode, press the C key or turn the knob. To stop the heating (in summer for example), turn the knob to 6/ Stop Mode The thermostat displays the measured ambient temperature.
- Page 13 Advice 1/ Advice for use - There is no point in setting the heated towel rail to maximum, the bathroom will not heat up any quic- ker. - For optimum heating, towels should be hung over the warm rails and dressing-gowns on the clothes hooks supplied.
- Page 14 4/ If there are problems ROBLEM HAT TO DO ENCOUNTERED - Ensure that the mains switches are turned on, and that the load-shedding The radiator does not device (if you have one) has not cut off the power supply to the heated heat up.
- Page 16 Kingston Upon Hull, HU5 4JN Atlantic Heat is part of Ideal Boilers Limited. Ideal Boilers Ltd. pursues a policy of continuing improvement in the design and performance of its products. The right is therefore reserved to vary specification without notice.
