Summary of Contents for Protelex ICM-X19

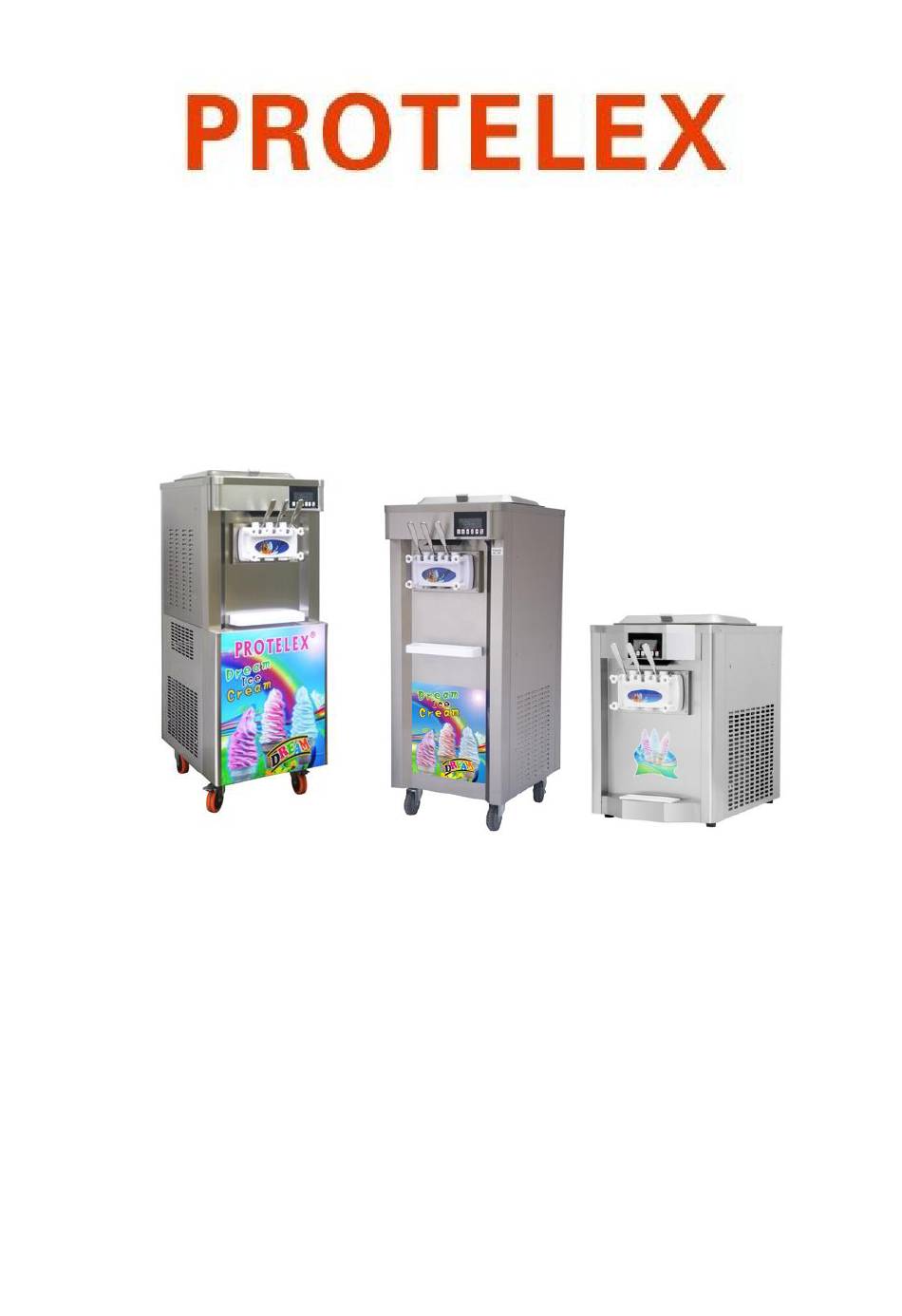

- Page 1 www.nkprotelex.com SOFT SERVE ICE CREAM MACHINE & FROZEN YOGURT MACHINE OPERATION MANUAL Designed in Germany from: Engineer Jean Feuze Silatchom...
- Page 2 1.Technical Data Soft Ice Cream Machine Series Main Power Rate Refrigerant output Dimensions N.W. Parameter Power (mm) (kg) (kW) Model R22/R404A 18-25 740x540x1380 ICM-X19 110V/220V 50Hz/60Hz R22/R404A 18-25 720x540x800 ICM-X17 110V/220V 50Hz/60Hz R22/R404A 18-25 740x540x1380 ICM-X20 110V/220V 50Hz/60Hz R22/R404A 18-25...
- Page 3 www.nkprotelex.com (Freezer cylinder) 19. Proximity Switch Plate 20. Proximity Switch Pusher 21. Feed Basin (Hopper) 22. Electronic Lock Switch Structure: 3. Precautions...
- Page 4 www.nkprotelex.com Electricity Install the earthling device according to the National Security Standard for electrical equipment ·Only use the feed line, method of Wiring and equipment in conformity with the National Security Standard for electrical equipment. · Be sure installing a short and leakage protective device on the feed line.
- Page 5 www.nkprotelex.com ·The power socket must have an earth line or just connect the machine metal case to the earth. ·Power Specifications: Single Phase: 220V/50Hz, Voltage Fluctuation: 198V-240V Three Phase: 380V/50Hz, Voltage Fluctuation: 370V-390V · Section area of the power conductor must be not less than 2.5mm or the line may be overloaded, the voltage dropped down which may impair or even damage the machine.
- Page 6 www.nkprotelex.com Production 1. Insert two expansion tubes into each feed basin respectively. For machine with air pump, connect the Air hose to the air outlet and expansion tubes 2. Pour the prepared ice cream pulp into the feed basin. The pulp flows by gravity to the stirrer drum via the lower hole of the expansion tube 3.
- Page 7 www.nkprotelex.com You can start the hopper cooling by pressing the SET/PRECOOLING button. For optimum cooling of the ice inside the feed basin (hopper), you should fill the hopper only under the air outlet mean the refill the hopper only to 2/3. Your machine should be emptied daily and cleaned.
- Page 8 www.nkprotelex.com which control Panel is used for your particular machine model. The principle of adjustment of hardness of ice cream is based on the fact that the load of stirrer motor increases with the current. The control circuit reacts when the current reaches certain point and stop the machine.
- Page 9 www.nkprotelex.com Notice: We recommend that you always adjust the hardness below 4 and only in case of strong heat above 4. Regular hardness adjustment may damage the machine B. Electronic Key Counter: The display of the counter counts 1 for each batch of ice cream has been prepared or counts any time you pull on the handle after the machine reach 100% the first time or during cleaning the machine by pulling on the handle after you press Wash key.
- Page 10 www.nkprotelex.com 1. Washing before start production a. Turn the plastic set nuts for the discharge block, totally 4 nuts, in counter clockwise direction, dismount the discharge block. b. Wash the feed basin, stirrer shaft and expansion tube with detergent liquid and disinfectant liquid.
- Page 11 www.nkprotelex.com pulling the handle. Repeat the above procedure several times. b. Wash the discharge block: Repeat above “Wash before Production” item a. and b. 6. Service and Maintenance Notice for Service and Maintenance 1. A person must be specially assigned for management of the machine. This machine is for food.
- Page 12 www.nkprotelex.com b. The time value can be set from 1 minute to 20 minutes, changing in 1 minute step for each time you press the key. c. While the display is flashing, if you do not press ＋ key or — key in 5 seconds, the system will withdraw from the time setting mode, the time value set at the last time is saved and the display returns to “00”.
- Page 13 www.nkprotelex.com overtime failure 2.Maintenance refrigeration system over-current 1. Motor fault exists 1. Replace the motor; or adjust protection the motor belt tightness; 2.Hardness grade is high，so 2.Adjust the appropriate that ice cream is too hard hardness grade and cause jam mixer No electricity 1.
- Page 14 www.nkprotelex.com User The time interval of Adjustable range: parameters auto restart cooling 3-40minute User The time interval of Feature enable, parameters auto restart fresh adjustable range: 30-120minute User The time interval of Feature enable, parameters auto restart Pre adjustable range: cooling 1-30minute Factory...
- Page 15 www.nkprotelex.com Factory Air pump start ON: press wash or parameters mode produce key to start OFF: start when the ice cream discharge Warning: This parameter only applies to FSAST_GL002_03D intelligent display, all parameters of the ice cream machine have been adjusted well, the user cannot change the parameters unless communicate with manufacturers.
- Page 16 www.nkprotelex.com 11. Packing List 1. Soft Ice Cream Machine Name Quantity Machine Set Discharge Block-Drum Ring Piston Ring Anti-cross-talk Ring Expansion Tube Ring for Expansion Tube Star Washer Operation Manual Plastic Bag Electron lock 2. Hard Ice Cream Machine Name Quantity Machine Set Discharge Block-Drum Ring...
