Summary of Contents for ECO-WORTHY 400

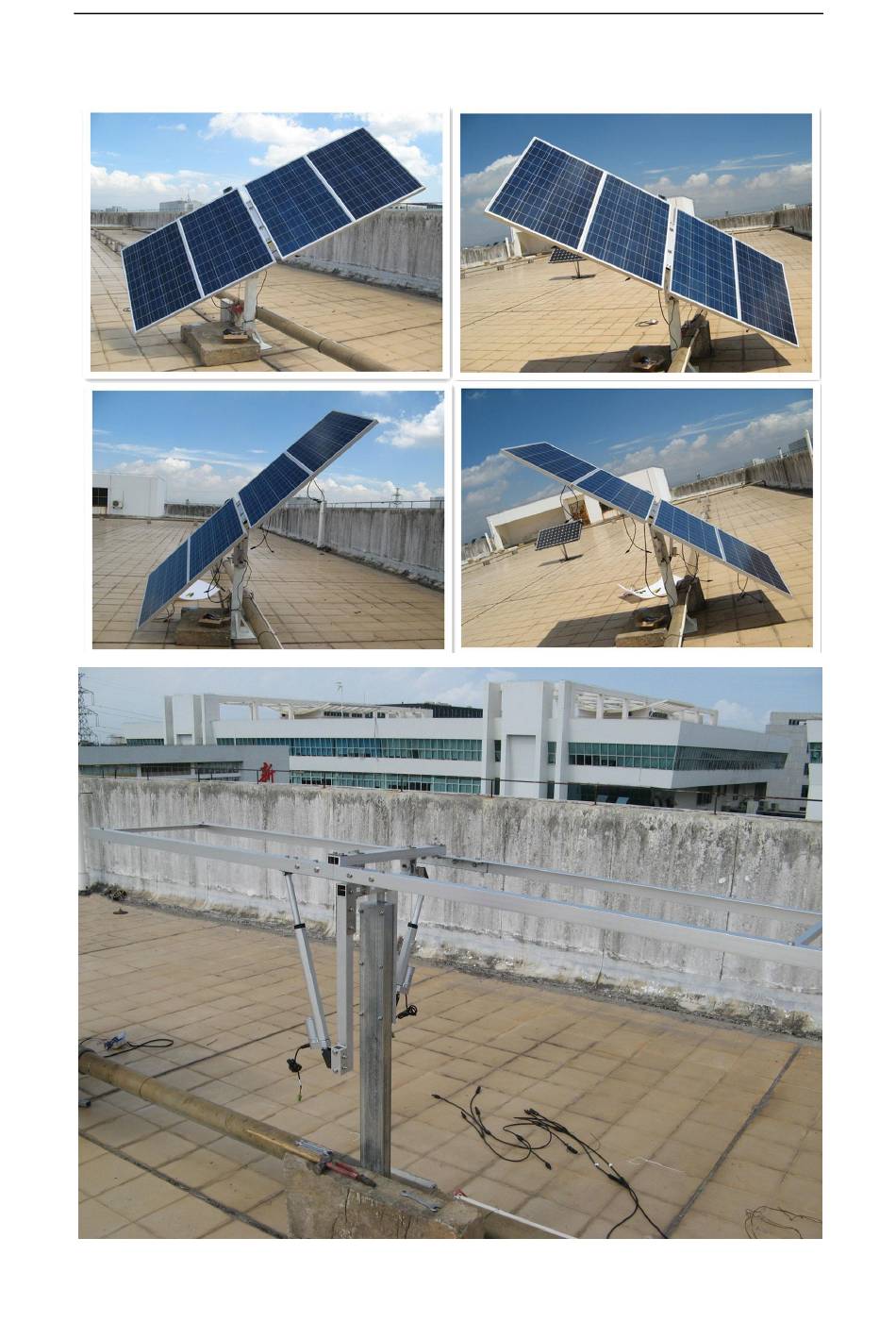

- Page 1 ECOWORTHY 400 Solar Tracker Owner’s Manual Pages 2-17 „„„„„„„„„Installation instructions...
- Page 2 Step 1: Parts list Galvanized post 2-5 &11-12 Solar panel mounting arms Main tracker mount North/South linear actuator East/west linear actuator Electronic control box and light-sensor box Remote controller for test Fasteners 4x100W solar panel (optional)
- Page 3 Step 2: Galvanized post installation Wind.soil bearing strength and frost heave potential will vary. if the pole is not below the frost line it can heave in winter. Consult a local licensed civil engineer for exact recommendations based on your local conditions. Only licensed civil engineer can provide exact recommendations for post mounting due to local conditions.
- Page 4 Step 3：Attaching the main tracker mount“8”to post...
- Page 5 Step 4: Bolting the main tracker mount “6” to “ 8”...
- Page 6 Step 5: Bolting North/South Linear actuator“9”...
- Page 7 Step 6 Attaching the main tracker mount “7” to “6”...
- Page 8 Step 7: Attaching solar mounting arms “2” to “4”,“3” to“5” （ “4”&“5” are the same） Use same methods to installing solar panel mounting arms “2” & “4” Then installing the arms to the main tracker mount “6”...
- Page 10 “ Step 8: Bolting East/west linear actuator 10”...
- Page 11 Step 9:Attaching solar mounting arms “11”&“12”...
- Page 12 Step 10: Attaching the solar panel to the solar panel mounting arms Have securely fastened all of the solar panels, you can fully tighten the screws...
- Page 13 Step 11: Mounting the light-sensor and electronic box Light sensor Install the light-sensor as shown in the figure. Please make sure that the direction which was marked on the light-sensor box be consistent with your local direction. Please make sure the light sensor in the same direction of the solar panel.
-
Page 14: Step 12: Solar Panel Connections
Step 13: Electronic Connections For running solar tracking system properly, firstly we need to choose the right power supply. How to choose the right power supply for ECO-WORTHY solar tracker system? Basically, the electronic box for tracking system can work with 8-25V power supply, so you just choose the right power supply according to the voltage of linear actuator. - Page 15 Electronic box wiring: 1. Locate the two wires that coming out of the bottom of the electronic control box, which have connected with quick connector. Connect the “North/South” quick connector to the North/South linear actuator. Connect the “East/West” quick connector to “East/West” linear actuator . 2.
- Page 16 Electronic Controller Box and Remote controller ECO-WORTHY solar tracking system included the remote controller for testing after system was all well installed. This controller can control dual axis linear actuator to make the solar panel to follow the Sunlight, keep the solar panel always face the sunlight.
- Page 17 Usage: (1) Fixed the control box on the frame of solar panel, You can install the light sensor a little higher than the face of solar panel so no shadow on the sensor. (2) Connect the controller to the linear actuator (Note the direction mark on the terminal of controller) (3) Connect white and black wire to power supply.
- Page 18 How to adjust the interval time Default interval time (max interval time) 500 seconds, One time working (tracking) time is 5 seconds Default interval time is 0,you can adjust it by yourself. Rotate the time adjustment button to Adjust the interval time(max time Rotate to left to shorten the interval time(Min 0=No interval time, always tracking) Rotate to right to add the internal time (max is 500 seconds)
- Page 19 Congratulations, your dual axis solar tracking system is now completely installed, Just wait for 40% more power from the sunlight. Your will, Our hands, Go green with ECO-WORTHY...
