Model D4666
HEAVY-DUTY MOBILE BASE
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
Your new Model D4666 Heavy-Duty Mobile Base is
designed to give you a stable and mobile platform upon
which to mount machinery and equipment.
Inventory
(Figure 1)
A. Right Front Corner Bracket ..............................1
B. Left Front Corner Bracket................................1
C. Right Rear Corner Bracket ...............................1
D. Left Rear Corner Bracket .................................1
E. 21" Side Rails ...............................................4
F. 3" Swivel Casters ..........................................2
G. 3" Wheels ...................................................2
H. Foot Pedals .................................................4
I.
Foot Pedal Springs .........................................2
J.
Foot Pedal Plungers .......................................2
K. Adjustable Rubber Feet ..................................2
L. Bearing Sleeves ............................................4
M. Shoulder Bolts M10-1.5 x 55 (Casters) .................2
N. Shoulder Bolts M8-1.25 x 52 (Pedals) ..................2
O. Hardware (Not Shown)
—Hex Bolts M8-1.25 x 16 (Brackets) .................. 24
—Hex Nuts M10-1.5 (Rubber Feet) ......................2
—Lock Nuts M8-1.25 (Caster/Pedal) .................. 10
—Lock Nuts M10-1.5 (Casters) ...........................2
Specifications
•
Minimum Inside Dimensions .................... 19" x 21"
•
Maximum Inside Dimensions ............. 29
•
Maximum Weight Capacity ...................... 1200 lbs
Items Needed for Assembly
•
Open-End Wrench or Socket 13mm .....................1
•
Open-End Wrench or Socket 14mm .....................1
•
Open-End Wrench or Socket 17mm .....................1
•
Measuring Tape.............................................1
COPYRIGHT © APRIL, 2017 BY WOODSTOCK INTERNATIONAL, INC. REVISED NOVEMBER, 2017 (HE)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#18887JH
⁄
" x 29
1
2
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
E
F
H

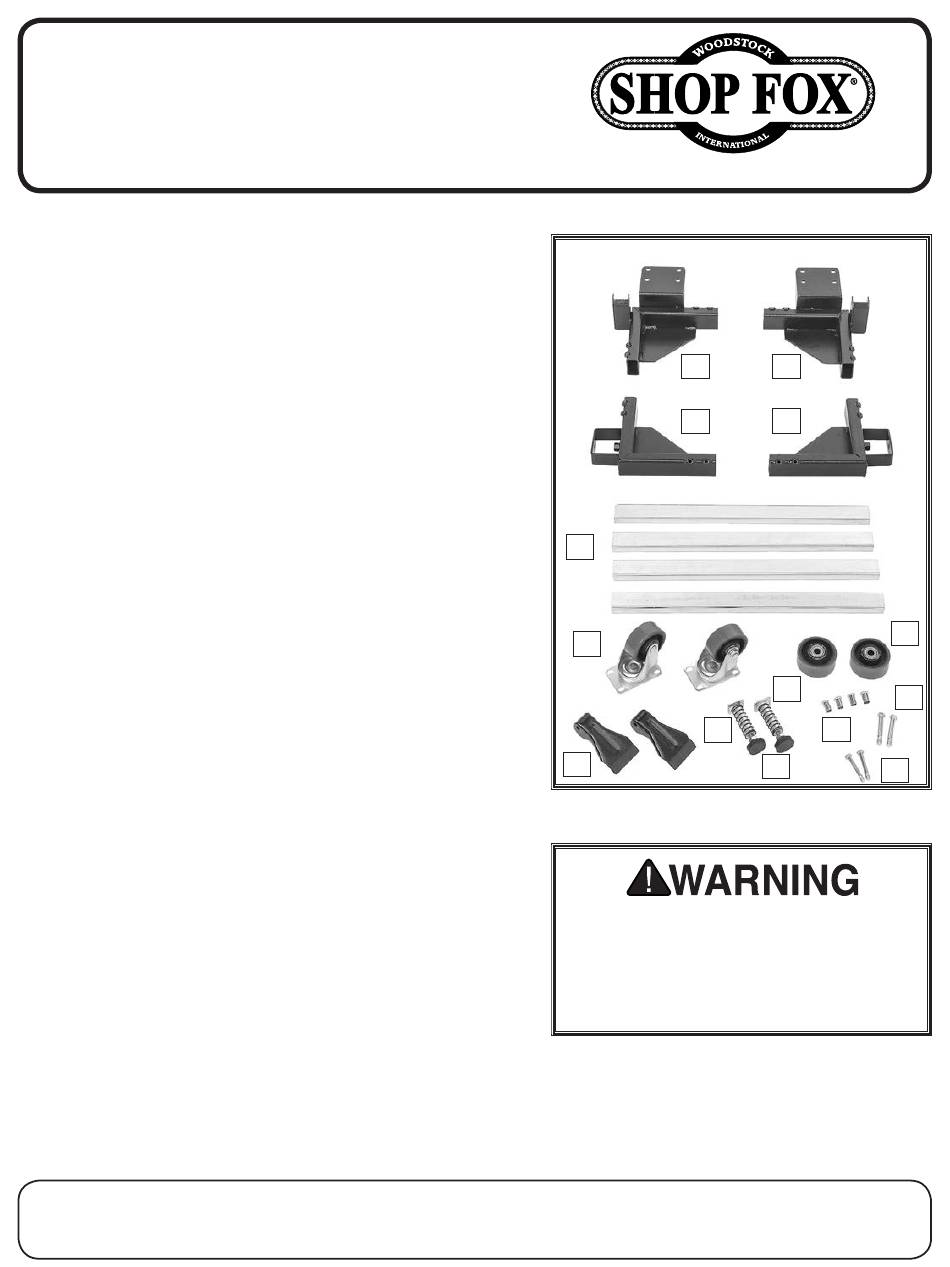

Figure 1. Model D4666.
⁄
"
1
2
Operating machinery on an unsecured
mobile base may allow the machine
to shift unexpectedly, which could
result in accidental contact with the
cutting device or other moving parts.
A
B
C
D
J
L
I
K
Printed in China
G
M
N
Advertisement
Summary of Contents for Shop fox D4666
- Page 1 Instruction Sheet Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz Introduction Your new Model D4666 Heavy-Duty Mobile Base is designed to give you a stable and mobile platform upon which to mount machinery and equipment. Inventory (Figure 1) A.
-
Page 2: Preparation For Assembly
D4666 Heavy-Duty Mobile Base Preparation for Assembly Corner Bracket There is more than one way to assemble the mobile base. Each method has advantages and disadvantages, depend- ing on the size and weight of the machine that you plan to put on the mobile base. The purpose of this section is to help you decide which method will work best for your situation. - Page 3 D4666 Heavy-Duty Mobile Base Assembling Base & Mounting Machine Hex Bolt 1. Attach swivel casters to both front corner using (4) (1 of 4) M8-1.25 x 16 hex bolts and (4) M8-1.25 lock nuts (see Figure 4). Lock Nut (1 of 4)
- Page 4 D4666 Heavy-Duty Mobile Base 5. Orient fixed casters in same direction that machine will typically be moved (see Figure 8). Mounting (TOP VIEW OF CASTER) fixed casters in wrong direction may make it difficult Typical Direction of Movement to move mobile base around in small spaces.
-
Page 5: Items Needed
D4666 Heavy-Duty Mobile Base Assembling Base Around Machine Spring The D4666 Mobile Base can assembled around oddly shaped or heavy machinery. Always have an assistant stabilize machine during mobile base assembly. Rubber Foot Items Needed Additional Person ..........1 Open-End Wrench 13mm........1 Plunger Socket Wrench 13mm ..........1... - Page 6 D4666 Heavy-Duty Mobile Base 6. While an assistant lifts one side of the machine, slide rail-bracket assembly from Step 5 under machine, as shown in Figure 16. Note: It may be necessary to re-adjust position of rails once machine is actually on base assembly.
- Page 7 D4666 Heavy-Duty Mobile Base 12. With the help of an assistant, tilt machine, and insert a 2x4 block beneath machine and mobile base frame (see Figure 19). 12" 2x4 13. Attach each swivel caster to corner of assembly using (4) M8-1.25 x 16 hex bolts and (4) M8-1.25 lock nuts (see Figure 20).
- Page 8 D4666 Heavy-Duty Mobile Base Making a Base Plate If the footprint of the machine is too small for the mobile base or the machine doors or fixtures do not clear the side rails, you can mount it to a base plate, as shown in Figure 23.
-
Page 9: Machine Stability
D4666 Heavy-Duty Mobile Base Using Mobile Base 1. DISCONNECT THE MACHINE FROM POWER! Lift heavy equipment carefully and 2. With machine mounted on mobile base, adjust each with the proper equipment. Get assis- rubber foot so it clears floor by at least ⁄... - Page 10 D4666 Heavy-Duty Mobile Base D4666 Parts Breakdown & List REF PART # DESCRIPTION REF PART # DESCRIPTION XD4666001 LEFT REAR CORNER BRACKET XD4666010 COMPRESSION SPRING 22 X 1.5 X 61 XD4666002 RIGHT REAR CORNER BRACKET XD4666011 ADJUSTABLE FOOT M10-1.5 X 30 XD4666003 LEFT FRONT CORNER BRACKET XD4666012 HEX BOLT M8-1.25 X 16...
-
Page 11: Warranty
WARRANTY Woodstock International, Inc. warrants this equipment to be free of defects from workmanship and materials for a period of 1 year from the date of original purchase. The liability under this warranty shall not exceed the purchase price paid for the products and is limited to credit for, or replacement of the defective part.
