Summary of Contents for Pantone 3

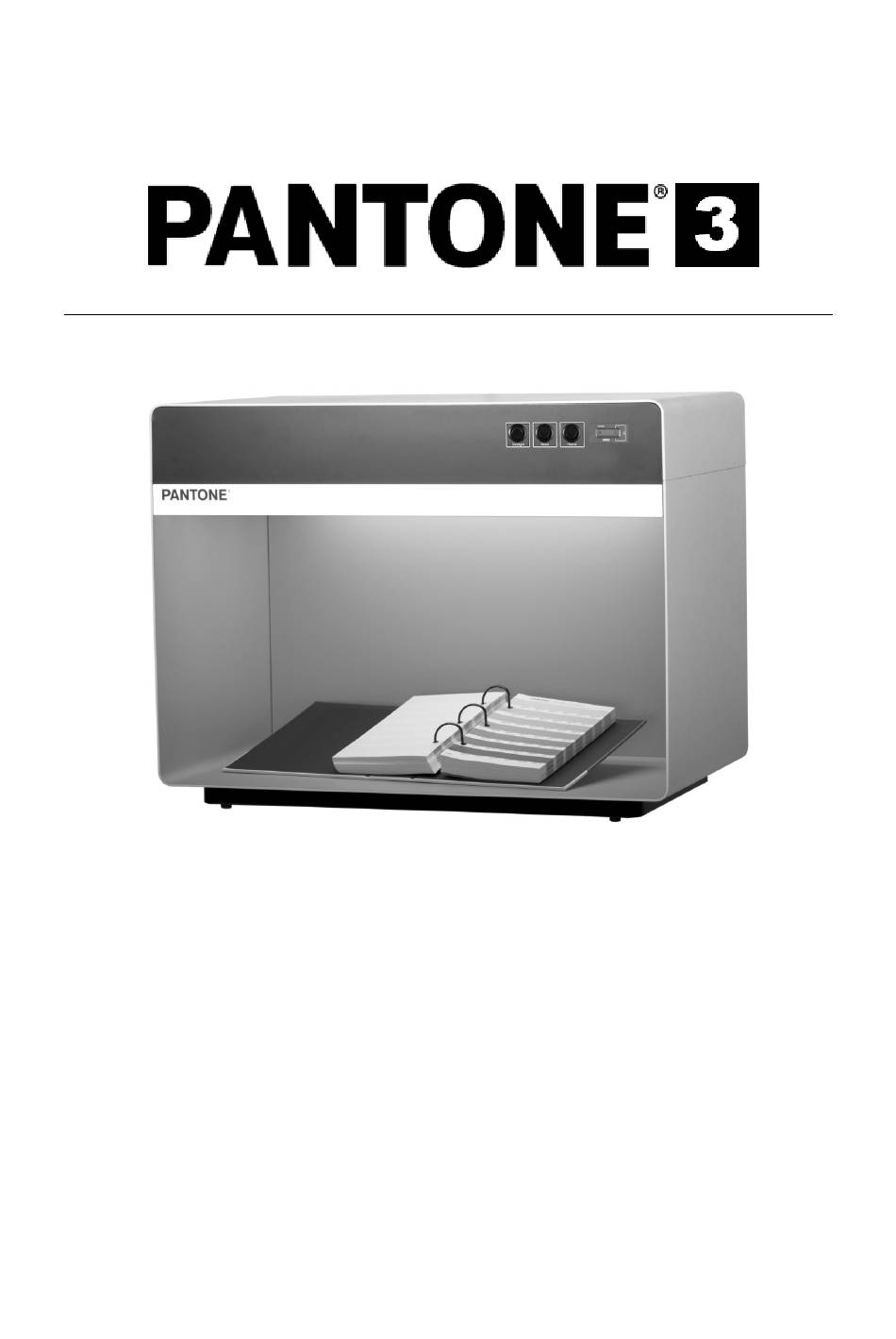

- Page 1 Operation Manual Register your product and get access to important product updates, exclusive content, service support, and other tools to help you get the most of your product. www.xrite.com/registration...
-
Page 2: Federal Communications Commission Notice
HAZARD or actions that may require your attention. CE Declaration Hereby, X-Rite declares that this ‘PANTONE 3’ light booth is in compliance with the essential requirements and other relevant provisions of Directive(s) EMC 2014/30/EU, LVD 2014/35/EC, and RoHS EU 2015/863. -
Page 3: Proprietary Notice
PANTONE 3 UNPLUG THE UNIT BEFORE CHANGING THE LAMPS: Always unplug the unit before you change the • lamps. ALLOW THE LAMPS TO COOL BEFORE HANDLING THEM. Diffuser and lamps get hot during • operation. Allow time to cool before touching. -
Page 4: Introduction And Installation
PANTONE 3 X-Rite’s sole and exclusive obligation for breach of the above warranties shall be the repair or replacement of any part, without charge, which within the warranty period is proven X-Rite’s reasonable satisfaction to have been defective. Repairs or replacement by X-Rite shall not revive an otherwise expired warranty, nor shall the same extend the duration of a warranty. -
Page 5: Other Features
PANTONE 3 Hour Counter Rocker Switch Hour Counter Key Features Three light sources: Daylight: (fluorescent) CIE D65 (6500 K) or CIE D50 (5000 K) Store : (fluorescent) Halophosphor - Cool White/F2 (CWF) (4100 K) or Triphosphor – 840/TL84/F11 (4000 K) or 835/U35 (3500 K) or 830/U30/F12 (3000 K) - Page 6 PANTONE 3 Balanced light that conforms to or exceeds published international standards for the visual evaluation of color. Durable, neutral matte paint finish - Munsell N7. Instant illumination allows for rapid switching between light sources. The hour counter allows the user to monitor when the daylight lamp has reached the maximum recommended 2000 hours usage.
-
Page 7: Environmental Specifications
PANTONE 3 Weight / Shipping Weight 23.5 Kg 27.5 Kg Electrical Power 2.5A 100/115/127/230Vac 50/60Hz Main Fuse Inlet Socket Live - 2.5A Neutral – 2.5A Power Cord Connector: country specific Plug: IEC 60320 C13 type Safety Compliance Pollution Degree: 2... -
Page 8: Main Power Switch
Example shows 115 V Fuse Drawer Release 3. If the voltage displayed is correct, plug the power cord into the mains inlet socket, then plug the cord into a properly rated wall socket. 4. IF THE VOLTAGE DISPLAYED IS INCORRECT proceed to "Changing the Voltage Selection Unit" below. - Page 9 2. Follow Step 1. above - Changing the Voltage Selector Unit to remove the fuse drawer. 3. Remove and inspect the two fuses. If there is evidence that one or both fuses have blown, replace them with T2.5A H250V fuses. Both the fuses should be always used.
- Page 10 PANTONE 3 4. Verify that the lamps are replaced properly by illuminating each one separately to make certain that the operating switch turns the desired lamp ON and OFF. 5. Make a note of the hour counter display when the lamps are changed. The lamps must be changed every 2000 hours or every year, whichever comes first.
- Page 11 SD33-34 L24CIEA Line Cord, United Kingdom CIE A Individual Halogen Capsules for JudgeQC SD33-31 and PANTONE 3/5 (two required per booth) Line Cord, Japan L24CWF CWF Individual 24" T8 Lamp with European CE mark for JudgeII, JudgeQC and PANTONE 3/5...
- Page 12 PANTONE 3 China RoHs Disclosure Table 产品中有害物质的含量 X-Rite, Incorporated. Model PANTONE 3 Series Instrument 仪器 有害物质 Assembly 组件 铅 汞 镉 六价 多溴联苯 多溴联苯醚 (Pb) (Hg) (Cd) 铬 (Cr6) (PBB) (PBDE) 全部 PCB Assembly PCB 组件 Fluorescent Lamps 荧光灯 Ballasts 镇流器...
- Page 13 X-Rite Guangzhou Office X-Rite, Incorporated Unit 2510 Tower B, China International Centre, No.33, 4300 44th Street SE Zhongshan 3 Road, Guangzhou, 510055, China Grand Rapids, Michigan 49512 Tel：020 - 8375 2900 Fax：(020)8375-2911 Phone 1 800 248 9748 or 1 616 803 2100 Email：info_guangzhou@xrite.com...
