Summary of Contents for Gesonic GSK101

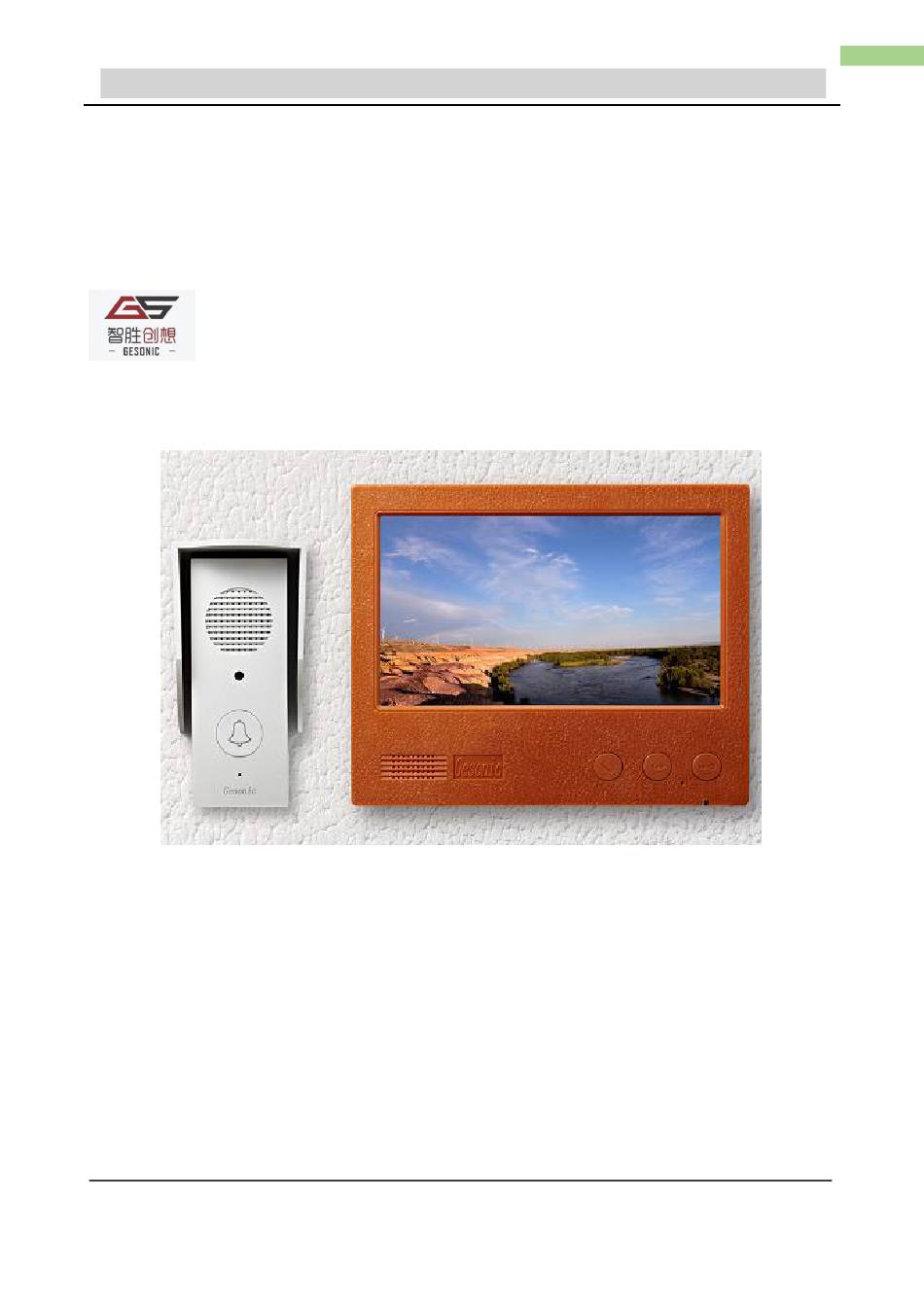

- Page 1 GSK101 Gesonic Video Kit： User and installation manual Model: GSK101 Video Door Phone for Villa, Country house, Cottages, business office *Caution: installation, configuration, starting-up and maintenance must be performed by qualified personnel. www.gesonic.com.cn...
- Page 2 GSK101 Gesonic Video Kit： Package content： Cables specification： Recommanded Accepted Possible, but with reduced AVideo quality www.gesonic.com.cn...
-
Page 3: Technical Specification
GSK101 Gesonic Video Kit： Technical specification 7”LCD Screen，resolution：800 x 480 RGB Entrance panel camera resolution：600 Lines IP 54/ IK 07 Operating temperature： (-15) – (+50) ° C Humidity：93 % Duplex / Half communication：Half Duplex ... -
Page 4: Entrance Panel
GSK101 Gesonic Video Kit： Entrance panel 1. Speaker 5. Microphone adjustment (N/A) 2. Camera 6. Speaker ajustment (N/A) 3. Call Button 4. Microphne Internal unit 1. Speaker 2. Display 3. Answering key/Intercom key 4. Monitor/Cycling key 5. Microphone 6. Communication LED... -
Page 5: Ringtone Setting
GSK101 Gesonic Video Kit： *The rain cover srewed with enterance unit before ext-factory, for the wiring please refer to the wiring diagram. The camera must not be installed in front of large light sources, or in places where the subject viewed remains in deep shadow. In poor lighting conditions color cameras are less sensitive than black/white cameras. - Page 6 GSK101 Gesonic Video Kit： Answer a call Auto-switching on and camera scrolling One-family diagram *The internal unit integrates a system power supply with double SELV insulation. Install according to the current regulations. www.gesonic.com.cn...
- Page 7 GSK101 Gesonic Video Kit： Diagram of maximum video expansion Thanks for choosing our products. To getting more information, please browse our web site: www.gesonic.com.cn www.gesonic.com.cn...
- Page 8 The all pictures in this booklet is only for reference, Gesonic reserves at any time the right to modify the contents of this booklet and to communicate in any form and modality, the charges brought to the same.
