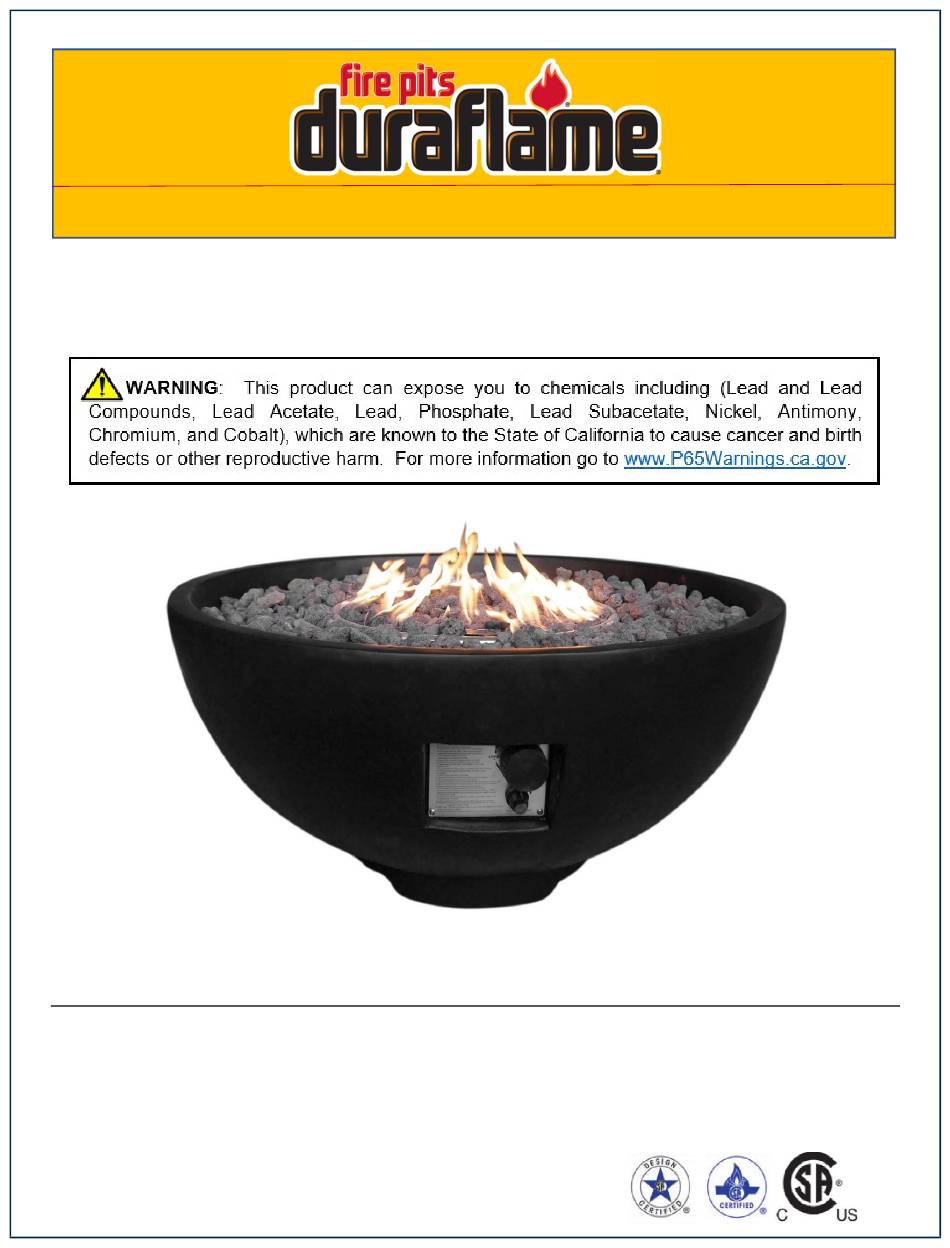

Carlsbad Fire Pit Use and Care Instructions
(DFP-INST-002_REVB_08/18)
MODEL No. DFP-ND02
Carlsbad Fire Pit
ATTENTION: READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY OR USE
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
1
Design certified under ANSI Z21.97-2014/CSA2.41-2014 Standard for Outdoor Decorative Gas Appliance
Advertisement
Table of Contents
Summary of Contents for Duraflame Carlsbad DFP-ND02
- Page 1 Fire Place Pan Burner (AFG-INST-013_REVG_07/18) Manufactured and distributed by American Fire Glass™ 570 Third Street, Lake Elsinore, CA 92530 1-833-334-3473 duraflamefireglass.com Carlsbad Fire Pit Use and Care Instructions (DFP-INST-002_REVB_08/18) MODEL No. DFP-ND02 Carlsbad Fire Pit ATTENTION: READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY OR USE INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
- Page 2 WARNING: When Fire Pit is not in use – disconnect propane tank. If Fire Pit is stored indoors – remove propane tank. WARNING - Fire Pit must be attended at all times while in use! WARNING – FIRE OR EXPLOSION HAZARD If you smell gas: 1.
- Page 3 Prepare for use: Keep away from Combustible/Flammable Items Do not put any other fireplace cover or anything flammable on or beneath the fire pit. Combustible material should never be within 1.83M/6 ft of the top, 1.22M/4 ft of back or sides of Fire Pit. ...
-
Page 4: Preparation For Assembly
THIS PRODUCT USE PROPANE ONLY: Use propane tanks with the following required measurements only 30.5cm/12in (diameter) x 45.7CM/18in (tall) with capacity of 9kg/19.84lbs. Max gas supply 28cm/11in w.c. (2.74kpa) Only propane tanks marked “propane” may be used. If you see, smell, or hear the hiss of escaping gas from the propane tank ... -
Page 5: Expanded View
Estimated Assembly Time: 25 Minutes NOTE: You must follow all steps to properly assemble the fire pit. Make sure the gas valve is turned OFF before assembly. Do not attempt to assemble without proper tools. PACKAGE CONTENTS AND COMPONENTS EXPANDED VIEW... - Page 6 ASSEMBLY INSTRUCTIONS Please keep these owner’s manual for future reference. If you have opened the carton and removed all packages, please disregard and SEP 1 and 2.see the STEP 3 directly. STEP1. STEP2. (1) Open the carton and turn it upside down, make sure (1) Turn the fireplace heads up on a flat the 4 pieces of carton open us as.
- Page 7 WARNINGS and FIGURES: Perform leak test in a well-ventilated area outside and where no source of spark an occur. Remove battery from igniter. Open tank valve fully (counter-clockwise). Turn the on/off valve at the unit to the ‘off’ position to pressurize the hose assembly. Use a soapy water solution to check all the connections leaks before attempting to light the appliance.
-
Page 8: Routine Care
A. Press and hold the Electric Ignitor. Meanwhile, push and turn the Control Knob counter-clockwise to the "LOW" position. Keep pushing the Control Knob to light the burner. B. After ignition, release the Electric Ignitor. Continue to push and hold the Control Knob for 45 seconds. C. - Page 10 7. AMERICAN FIRE GLASS™, manufacturer and distributor of misuse, neglect, accident, improper installation, or use Duraflame® Fire Glass and Fire Pits agrees to repair or in violation of instructions furnished by AMERICAN FIRE furnish a replacement for, but not remove or install any GLASS™.
