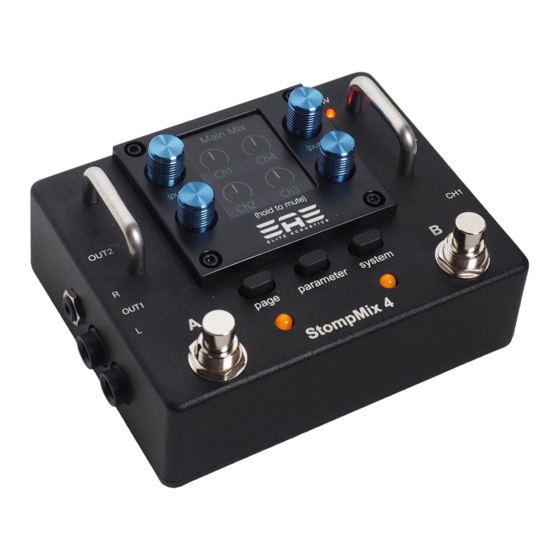

Elite Acoustics Engineering StompMIX 4 Quick Manual Handbook

4 channels digital mixer pedal
Hide thumbs

Advertisement

Quick Links

Download this manual

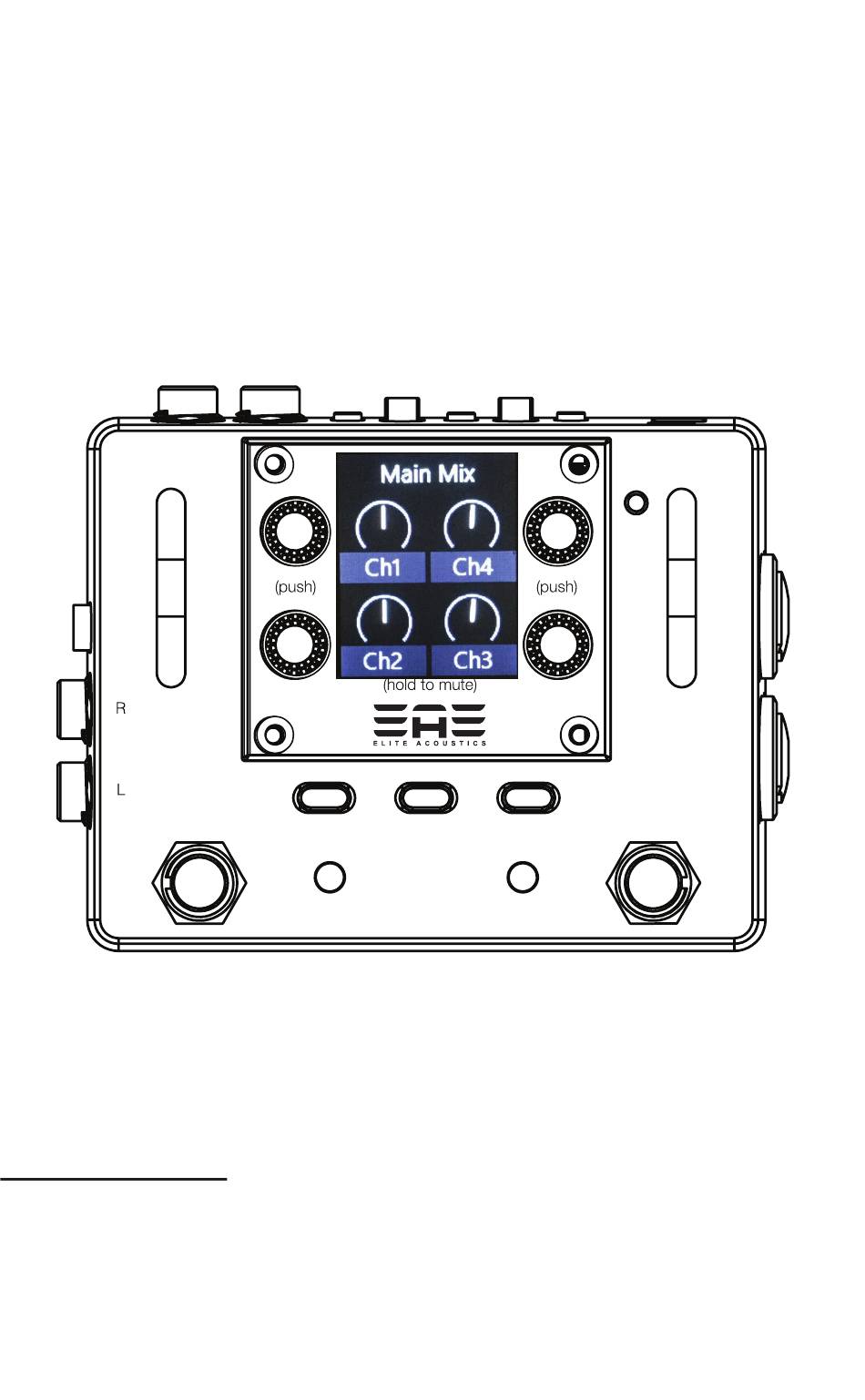

Elite Acoustics Engineering
4 Channels Digital Mixer Pedal
OUT2
OUT1
WHAT IS IN THE BOX
Your StompMix 4 package contains the following:
(1) StompMix 4 unit
(1) AC to 12VDC Power Supply Adapter
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate.
For a copy of the complete User's Manual, please visit: www.eliteacoustics.com
StompMIX 4
Quick Guide Handbook - V1.00
A
page
StompMix 4
system
parameter
48V
CH2
CH1
B

Advertisement

loading
Need help?

Need help?

Do you have a question about the StompMIX 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Acoustics Engineering StompMIX 4

  • Page 1 StompMix 4 WHAT IS IN THE BOX Your StompMix 4 package contains the following: (1) StompMix 4 unit (1) AC to 12VDC Power Supply Adapter NOTE: Due to continuous development and improvements of our products, features and specifications are subject to change without notice.

  • Page 2: Lcd Functions

    OUT2 OUT1 page system parameter StompMix 4 LCD FUNCTIONS Menu Buttons with LCD: Press any of the 3 menu buttons(black button located to the below theLCD) or 4 encoders(blue knobs located around LCD) to access and adjust features and settings. Most menus have several pages of options, which are adjusted by turning the corresponding encoder.
  • Page 3 system page parameter PRESS the “page” button to access these FUNCTIONS “Aux Mix” “Main Mix” Adjust the level Adjust the level of each of the 4 of each of the 4 channels sent channels sent to the Aux Mix to the Main MIX Outputs.
  • Page 4 page system parameter PRESS the corresponding Encoder knob for these Functions. use the corresponding Encoder knob for these Functions. “Channel EQ” Adjust for each channel Mid Freq High “Channel Util” - more details on next page. Polarity (=) or (-) Notch Filter Filter - Off/Highpass/Notch Filter Freq.
  • Page 5 page system parameter use the corresponding Encoder knob for these Functions. “Channel Util” Input Phase Polarity is (-) Reversed. Notch - 76 Hz. Filter - Notch 56 Hz. “Channel Util” Input Phase Polarity is (=) - NOT reversed. Notch - OFF Filter - OFF Filter Freq.
  • Page 6 Editing “Main Mix” parameters page system parameter PRESS the “parameter” button to access these FUNCTIONS Preset “Parameter” key Adjust the Main Mix stereo panning for each of the 4 channels. Preset “Parameter” key Adjust the Main Mix output Level.
  • Page 7 Editing “Aux Mix” parameters page system parameter PRESS the “parameter” button to access these FUNCTIONS Preset “Parameter” key Adjust the AUX stereo panning for each of the 4 channels. Preset “Parameter” key Adjust Aux Send connection - “Pre” or “Post” Pre - Pre “Main Mix level”...
  • Page 8 Editing “Delay Mix” parameters page system parameter PRESS the “parameter” button to access these FUNCTIONS page system parameter Preset “Parameter” key Adjust the 4 Delay Parameter by the corresponding encoder knobs.
  • Page 9 Editing “Reverb Send” parameters page system parameter PRESS the “parameter” button to access these FUNCTIONS page system parameter Preset “Parameter” key Adjust the 3 Reverb Parameter by the corresponding encoder knobs.
  • Page 10 It is critical to adjust the normal input levels to be below -12db level to avoid Clipping the inputs of the StompMix 4. Distortion can occur when inputs are clipping. CHAN 1 and CHAN 2 have input level knobs and PAD switches, CHAN 3 and CHAN 4 require input level control from the extenal device.
  • Page 11 page system parameter USE the corresponding Encoder knob for these Functions. “Assigns” “Assigns” “A” -- CHAN 1 “A” - Memory ON/OFF DOWN “B” -- CHAN 2 “B” - Memory ON/OFF “Assigns” “Assigns” “A” -- Reverb “A” - CHAN 1/2 ON/OFF ON/OFF “B”...
  • Page 12 4) CHAN 1 LEVEL and PAD 5) CHAN 2 LEVEL and PAD 6) CHAN 3 input OUTPUTS CHAN 1/2 OUTPUT 2 Combo Jack OUT2 1/8” Jack. input. OUTPUT 1 MIC or 1/4” OUT1 L/R 1/4” Line Inputs. page parameter system Jacks. StompMix 4...
  • Page 13 SYSTEM SPECIFICATIONS • System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A conversion. Integrated Digital Mixer supports routing and seamless signal-level management for four fully configurable audio channels. Color Graphic LCD presents a highly intuitive GUI for settings and save &...
  • Page 14 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
