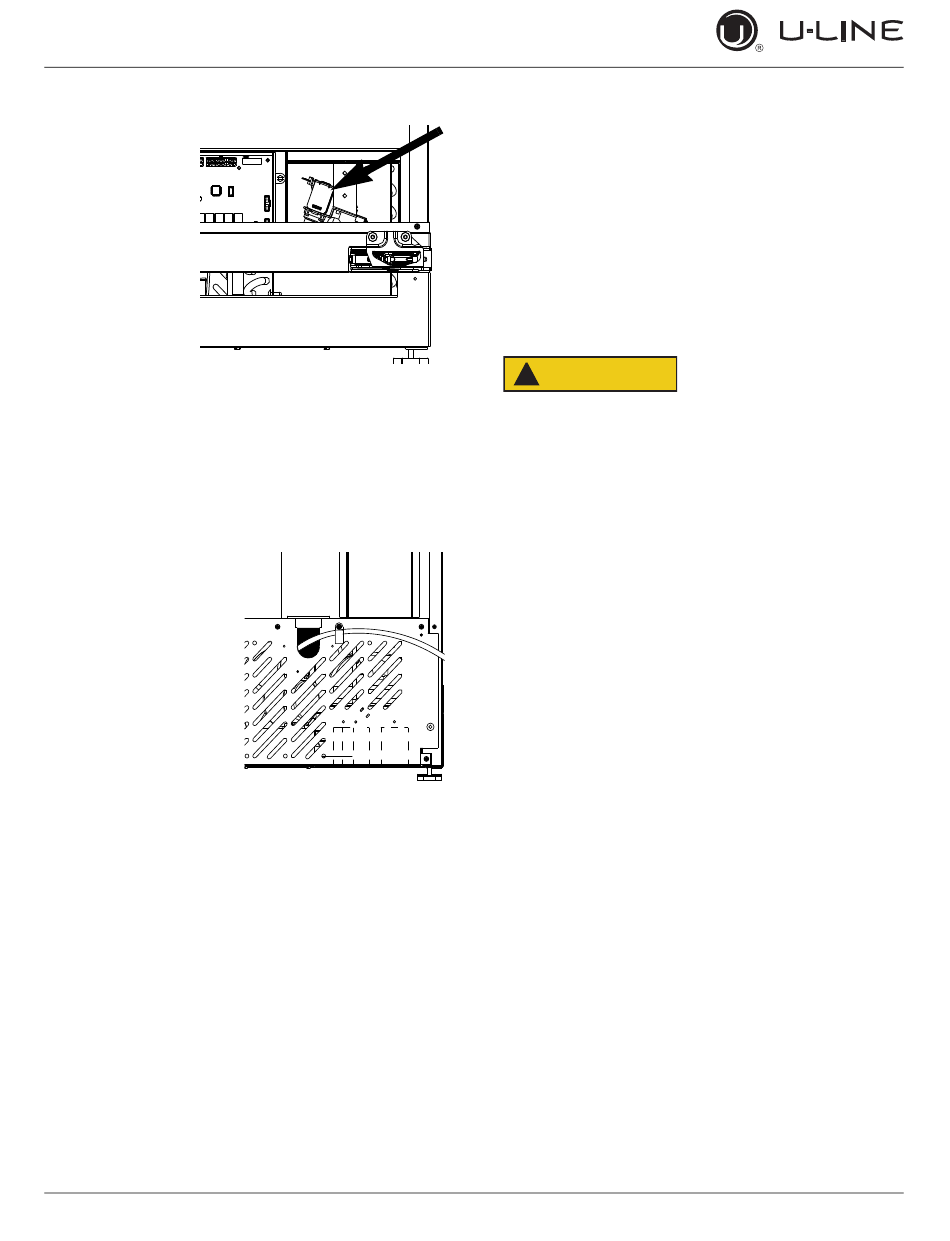

3. Locate water
valve in the front
of the unit and
thread water
supply line
through.
Route the water
supply line
through the unit
so it does not
come into contact with any internal components
other than the solenoid valve. Normal operation
creates some vibration. A water supply line
contacting an internal component or cabinet wall
can cause excessive noise during operation or
damage to the line.
4. On the back panel, exit
waterline in same
location as drain line.
5. Turn on water supply and check for leaks
6. Reinstall back panel and grille/front access panel.
7. Install retaining clip.

Drain

Model numbers including "-00" or "-07" do not include a
factory installed drain pump.
Model numbers including "-40" or "-47" include a factory
installed drain pump.
DRAIN CONNECTION
!
CAUTION
If your U-Line unit did not come with a factory
installed drain pump you must use a gravity
style drain connection. For assistance in
determining if your unit has a pump please
contact U-Line. The floor drain must be large
enough to accommodate drainage from all
attached drains. Follow these guidelines when
installing drain lines to prevent water from
flowing back into the ice maker storage bin and/
or potentially flowing onto the floor, which may
result in personal injury or property damage.
NOTICE
Drain can NOT be located directly below the unit.
Unit has a solid base that will not allow the unit
to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and fittings are free from
leaks.
