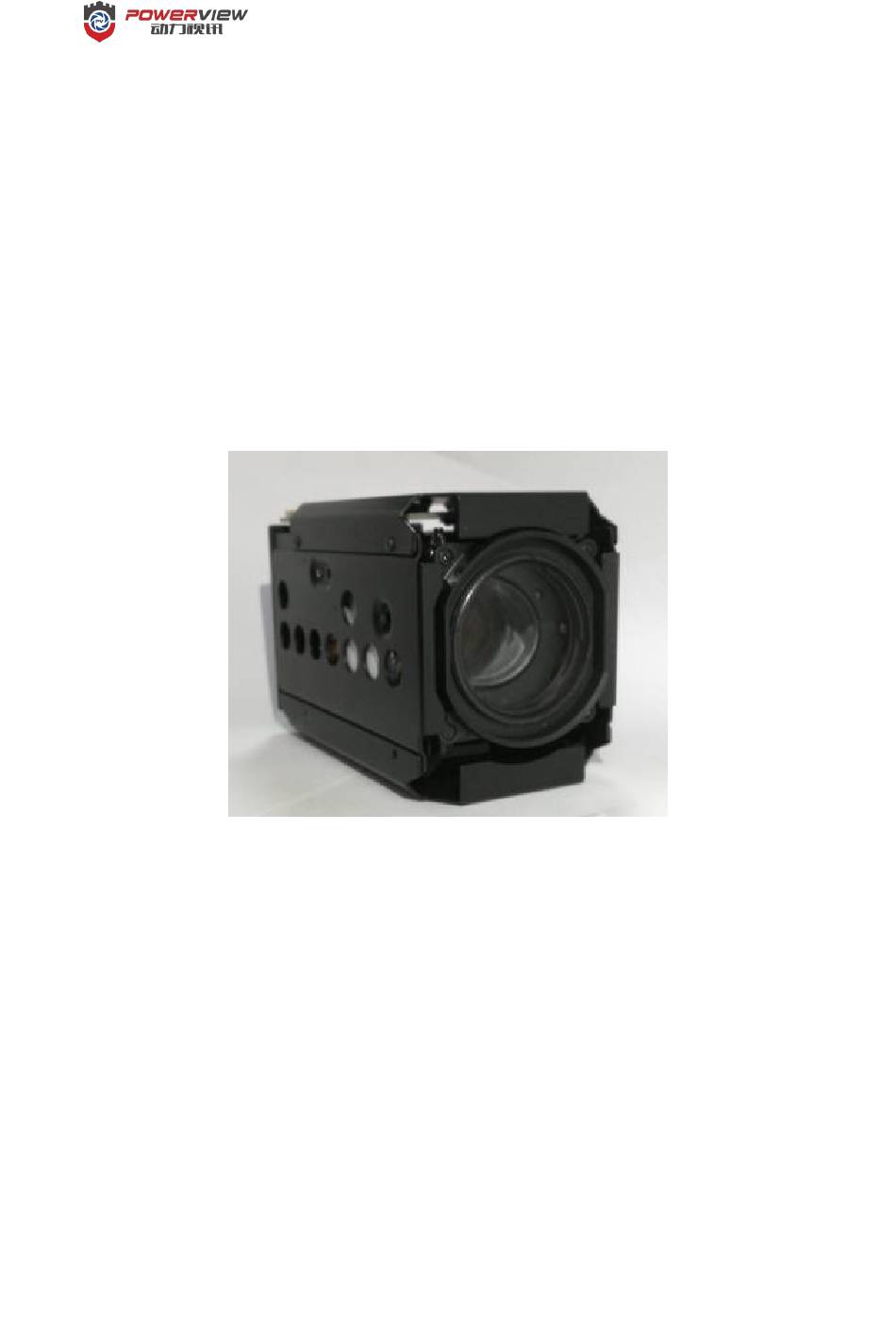

Document Number: RD-WI-004
NO.18P3N8503AF25T1001
Block HD Camera Module Technical
Handbook
P3N8503A-F25T[V1001]
P3N8503A-F25T User Manual
@Copyright POWERVIEW 2014
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P3N8503A-F25T and is the answer not in the manual?

Questions and answers

Summary of Contents for Powerview P3N8503A-F25T

  • Page 1 Document Number: RD-WI-004 NO.18P3N8503AF25T1001 Block HD Camera Module Technical Handbook P3N8503A-F25T[V1001] P3N8503A-F25T User Manual @Copyright POWERVIEW 2014...
  • Page 2 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Document Modification Record Document Version Publish Updated Content Department Author Date P3N8503A-F25T-V10 October 16, First Draft R&D Yang Yang 2018 Department...

  • Page 3: Table Of Contents

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Table of Content Table of Content ..................3 Product Features..................4 Specifications ....................5 Dimensional Drawing ................. 8 Output Interface Description ..............8 Basic Functions ................... 9 List of Commands: Function Command List ........13 Inquiry Command List ................

  • Page 4: Product Features

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Product Features • Outstanding 3M (2048 x 1536) high definition image quality • 1/1.8" CMOS sensor, 3 megapixels, high image quality and high sensibility • Powerful zoom capability - 3x optical zoom, excellent automatic focus, F1.4-F1.6 aperture and 15.0-50.0mm focus range •...

  • Page 5: Specifications

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Specifications Model P3N8503A-F25T 3X 3MP 1/1.8" CMOS Model Name Global Shutter ICR Day Night Block HD Camera Module Image Dimension 8.9mm (Type 1/1.8) Effective Pixels 3.19MP Progressive Scan Supported 2048 (H) x 1536(V)/25fps CMOS Image Sensor...
  • Page 6 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Manual (On/Off) Supported Auto Supported AGC Control Manual Supported Flip Vertical Supported Image Freezing Supported Flip Horizontal Supported Black / Color / Image Supported NEG.ARG Noise Reduction Supported Gamma Supported Privacy Masking Supported Manual Supported Aperture Auto Supported...
  • Page 7 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Current (Zoom Focus Motor Runs 930mA @ 12V) Power Consumption Static 9.6W, Dynamic 11.16W Output Video 3Mp/25,3Mp/30,1080p/25,1080p/30 Format Control interface of baud rate: 9.6Kb/s, 19.2 Kb/s, 38.4 Kb/s, 115.2 the integrated Kb/s, stop bit: 1/2 bit optional module assembly Dimensions 90.4*50*63.4mm...

  • Page 8: Dimensional Drawing

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Dimensional Drawing...

  • Page 9: Output Interface Description

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Output Interface Description Pin NO. Lens Lens Pelco Pelco 12VD IR_LE Alar AUDI AUDI Alarm Alarm 3.3VD OUTR1 OUTL AC_MI...

  • Page 10: Basic Functions

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Basic Functions VISCA Command is the Basis for Controlling the Integrated Module 1. Command Sequence Diagram 2. Zoom Optical Zoom: A. 1X to 3X automatic optical zoom, with the picture staying clear during zooming; The optical zoom speed registration range is 0-7 grades, with grade 4 by default; The zoom time from min to max is approx.
  • Page 11 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 D. Manual White Balance: in Manual White Balance Mode, R and B values can be adjusted manually, with the adjustable range 0-255; 5. Exposure Exposure Modes are listed as below and can be switched via VISCA Command: A.
  • Page 12 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 11. Title Display Setting Title Display via VISCA Protocol; A. Supports display of characters of 11 Rows, 20 Columns; Supports display of characters in different colors; Supports uploading font file to display various types of characters; 12.

  • Page 13: List Of Commands: Function Command List

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 List of Commands: Function Command List ●Stands for Supported command ○Stands for Unsupported command Command Set Command Command Packet Comments Support ● Network Change Broadcast 88 30 0x FF ● AddressSet Broadcast 88 30 01 FF Address setting ●...
  • Page 14 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 ● Normal AF 8x 01 04 57 00 FF ● Interval AF 8x 01 04 57 01 FF AF Movement Mode ● CAM_AFMode Zoom Trigger AF 8x 01 04 57 02 FF Active/Interval pq: Movement Time, rs: ●...
  • Page 15 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 ● 8x 01 04 0A 02 FF ● Down 8x 01 04 0A 03 FF ● Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position ● Reset 8x 01 04 0C 00 FF ●...
  • Page 16 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 p: Screen display 0: Combined image, 2: Long-time, 3: Short-time q: Detection sensitivity (0: L 1: M 2: H) Blocked-up shadow 8x 01 04 2D 0p 0q 0r 0s 0t ○ Set Parameter correction level (0: L 1: M 2: 0u 00 00 FF H 3: S) Blown-out...
  • Page 17 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 ● 8x 01 04 51 03 FF pq: ICR ON – OFF threshold ○ Threshold 8x 01 04 21 00 00 0p 0q FF Level ○ 8x 01 04 31 02 FF Auto ICR switching Alarm ○...
  • Page 18 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Pan/Tilt/Zoom Settings fo 8x 01 04 7B mm 0p 0p 0p 0q Mask ● SetPTZMask 0q0 0q 0r 0r 0r FF ppp: Pan, qqq: Tilt, rrrr: Zoom mm: Non_Interlock Mask Non_InterlockMa 8x 01 04 6F mm 0p 0p 0q 0q ●...

  • Page 19: Inquiry Command List

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Inquiry Command List Inquiry Command Command Packet Inquiry Packet Comments Support ● CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position ○ y0 50 02 FF D-Zoom On CAM_DZoomModeInq 8x 09 04 06 FF ○...
  • Page 20 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 ● CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit ● CAM_BrightPosInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position ● y0 50 02 FF CAM_ExpCompModeInq 8x 09 04 3E FF ●...
  • Page 21 8x 09 04 49 FF y0 50 00 00 00 0p FF (60%) to Eh (200%) GG GG = Vender ID (0020: SONY) y0 50 GG GG HH HH JJ (0010: POWERVIEW) ● CAM_VersionInq 8x 09 00 02 FF JJ KK FF HHHH=Mode ID...

  • Page 22: Zoom Ratio And Zoom Position, Fov, Focal Range (For Reference)

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 ppp: Up limit qqq: low limit ppqq: shutter pos ; rrss: iris ● 8x 09 04 40 42 FF y0 50 pp qq rr ss uu vv FF pos; uuvv: gain pos u ： 0~7; pp:X; qq:Y; rr:W; 8x 09 04 40 44 0u y0 50 0u 0p 0p 0q 0q 0r ●...

  • Page 23: Register Setting

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 1/25 1/25 1/25 1/25 1/25 F1.6 F2.4 F2.8 F3.4 F4.8 Iris F5.6 F6.8 F9.6 Close +28db +26db +24db +22db +20db +18db +16db +14db Gain +12db +10db +8db +6db +4db +2db +0db -3db Register Setting Register No. Value...

  • Page 24: Osd Menu

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 00(Default value) 9600bps 19200bps VISCA Baud Rate 38400bps 115200bps 00(Default value) SAV/EVA 1080P/30 1080P/25 Output Mode 21(Default value) 300W/25 300W/30 OSD Menu MENU LANGUAGE ENGLISH FOCUS AUTO/MANUL ZOOM & & & IMAGE & VIDEO & &...
  • Page 25 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 AUTO/INDOOR/OUTDOOR/ONE-PUSH-WB/A TW/MANUL/WB_OUTDOOR_AUTO/WB_SO WB-MODE DIUMLAMP_AUTO/WB_SODIUMLAMP/WB_ SODIUMLAMP_OUTDOOR_AUTO R-GAIN 0~255 B-GAIN 0~255 BACK AE-MODE AUTO/SHUTTER-P/IRIS-P/MANUL GAIN 0~15 SHUTTER 0~21 IRIS 0~17 BRIGHT 0~31 EXPCOMP 0~14 ON/OFF BACK IMAGE SATURATION 0~15 SHARP 0~15 CONTRAST 0~15 DENOISE CLOSE/1~5 ON/OFF ON/OFF COLOR/BLACK FREEZE ON/OFF...
  • Page 26 Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 BACK DAY/NIGHT/AUTO THRESHOLD 0~28 DISPLAY ON/OFF LENS-INIT CAMERA BACK...

  • Page 27: Video Output Sequence No

    Document Number: RD-WI-004 NO. 18P3N8503AF25T1001 Video Output Sequence No. 1080p_25Hz Output Sequence 1080P/25HZ Sequence No. Diagram 1125 H VSYNC HSYNC 1080 H 41 H DATA VSYNC HSYNC DATA 236 CLOK 1920 CLOK CLOCK 74.25MHZ 2640 CLOK 1080p_30Hz Output Sequence 1080P/30HZ Sequence No. Diagram 1125 H VSYNC HSYNC...

  • Page 28: 300W_25Hz Output Sequence

    Document Number: RD-WI-004 NO. 18P3V8503F25D1001 300W_25Hz Output Sequence 300W/25HZ Sequence No. Diagram 2250 lines (1 frame) 1536 714 lines 714 lines effictive lines VSYNC HSYNC CLOCK 148.5M DATA VSYNC HSYNC CLOCK 148.5M DATA 2048 effictive pixels pixels pixels 2640CLK 300W_30Hz Output Sequence 300W/30HZ Sequence No.
  • Page 29 Document Number: RD-WI-004 NO. 18P3V8503F25D1001 BRING STAKEHOLDERS AND SOCIAL SATISFACTION Chengdu Powerview Science and Technology Co., Ltd. Add: Floor10, Block B, Flat2, Group A2, No433, Wuxing Fifth Road, Wuhou District, Chengdu Postal Code: 610000 Tel: 86-28-85188031 Company Website: www.powerview.cn...
