Specification
Product code
Light colour
Channels
Driver
Control protocol
Power and Current
Beam angle
Filter colour
IP rating
Operating
temperature
Data connector
Refresh rate
Max strobe
frequency
Max connections
Pixel Quality
Type
Pixel quantity
Lumens
Pixel Pitch
Life (hours)
CE and RoHS
certified
Warranty
Dimensions
Length (mm)
Width (mm)
Depth (mm)
Weight (kg)
Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 info@conceptledlights.com

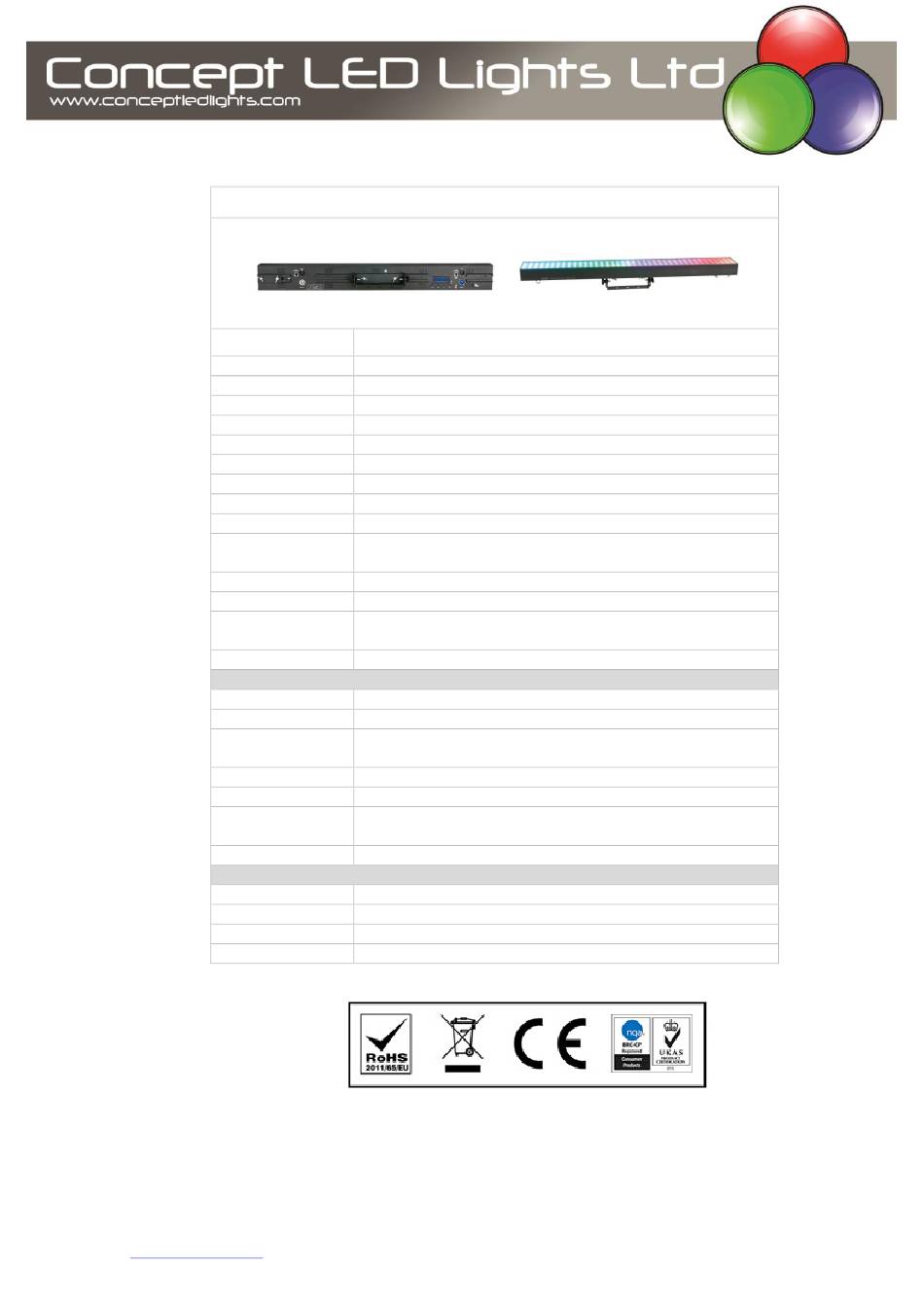

TECHNICAL DATA
V-PIX™ Quad Bar
Product
CL-VPIX-4-40
Full spectrum
8 / 480 (see above)
Built in
Art-Net, DMX512, Kling-Net
51W, 0.36A @120V, 60Hz
120°
2 filters supplied: clear and frosted
IP20
-5~40°C
RJ45
100Hz
25Hz
16 (4 x 4) via RJ45 in and out
SMD 5050 RGB
160 (4 x 40)
Clear filter: 2586
Frosted filter: 2160
25mm
<50,000
Yes
2 years
1000
107
117
3.5
Advertisement
Table of Contents
Summary of Contents for Concept LED Lights V-PIX Quad Bar
- Page 1 Clear filter: 2586 Frosted filter: 2160 Pixel Pitch 25mm Life (hours) <50,000 CE and RoHS certified Warranty 2 years Dimensions Length (mm) 1000 Width (mm) Depth (mm) Weight (kg) Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
- Page 2 0-255 Green color of led 1 0-255 Blue color of led 1 0-255 CH4 ~ CH480 Each colors of each LEDs, 0-255 In total is 160pcs x 3CHs= 480CH Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
- Page 3 V-PIX™ Quad Bar User Manual Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
-
Page 4: Safety Notes
· Do not operate this product if you see damage on the housing, lenses, or mounting bracket. Have any damaged parts replaced by a certified technician at once. In the unlikely event that your product may require service, contact Concept LED Lights Ltd. · Do not cover the ventilation slots when operating to avoid internal overheating. -
Page 5: Product Description
The following items should be included in the package: · V-PIX™ Quad Bar · Quick Reference Guide · Clear Filter If there are any missing pieces, please contact Concept LED Lights Ltd Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com... - Page 6 Product Dimensions: Product Overview: Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
-
Page 7: Installation Procedure
2. Remove the 4 screws from the end cap of the product. 3. Remove filter. 4. Re-install end cap Be sure to install the frost filter with the shiny side facing toward the LEDs Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com... - Page 8 Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. · When mounting the bar on the floor, make sure that the product and cables are away from people and vehicles. Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
- Page 9 2. Attach the clamp to the desired structure or surface. 3. Attach a safety cable to the product’s safety loop. Never attach more than 1 products from the initial product when hanging vertically Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
- Page 10 3. Slide the 2nd V-PIX™ Quad Bar into the connecting bracket and tighten the fastening knob, then attach the safety cable. Be sure to install the safety cable last when attaching the products in series Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
- Page 11 Power/Signal Connection Procedure: The following diagram illustrates how to assemble the data connections Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
-
Page 12: Product Maintenance
If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LED’s lifespan. Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com... - Page 13 Schematic Diagram of Menu: Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
- Page 14 Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
-
Page 15: Product Features
Easily manage configuration and software updates with the network-based remote web server Works with ArKaos Media Master Express for a plug-n-play system that requires little training to operate Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com... - Page 16 0-255 Green color of led 1 0-255 Blue color of led 1 0-255 CH4 ~ CH480 Each colors of each LEDs, 0-255 In total is 160pcs x 3CHs= 480CH Concept LED Lights Ltd www.conceptledlights.co.uk 01553 617591 / 08711 339037 info@conceptledlights.com...
