NexSens mV to RS-485 Signal Adapter
The NexSens mV-RS485 signal adapter converts a standard mV output signal to
RS-485, allowing analog sensors to be integrated with an X2-Series data logger.
The adapter is compatible with LI-COR, Turner Designs, and many other voltage
output sensors.
Configure the mV to RS-485 Adapter
Note: The mV to RS-485 adapter will generally be pre-configured before shipment.
If this is the case, skip to the Getting Started section.

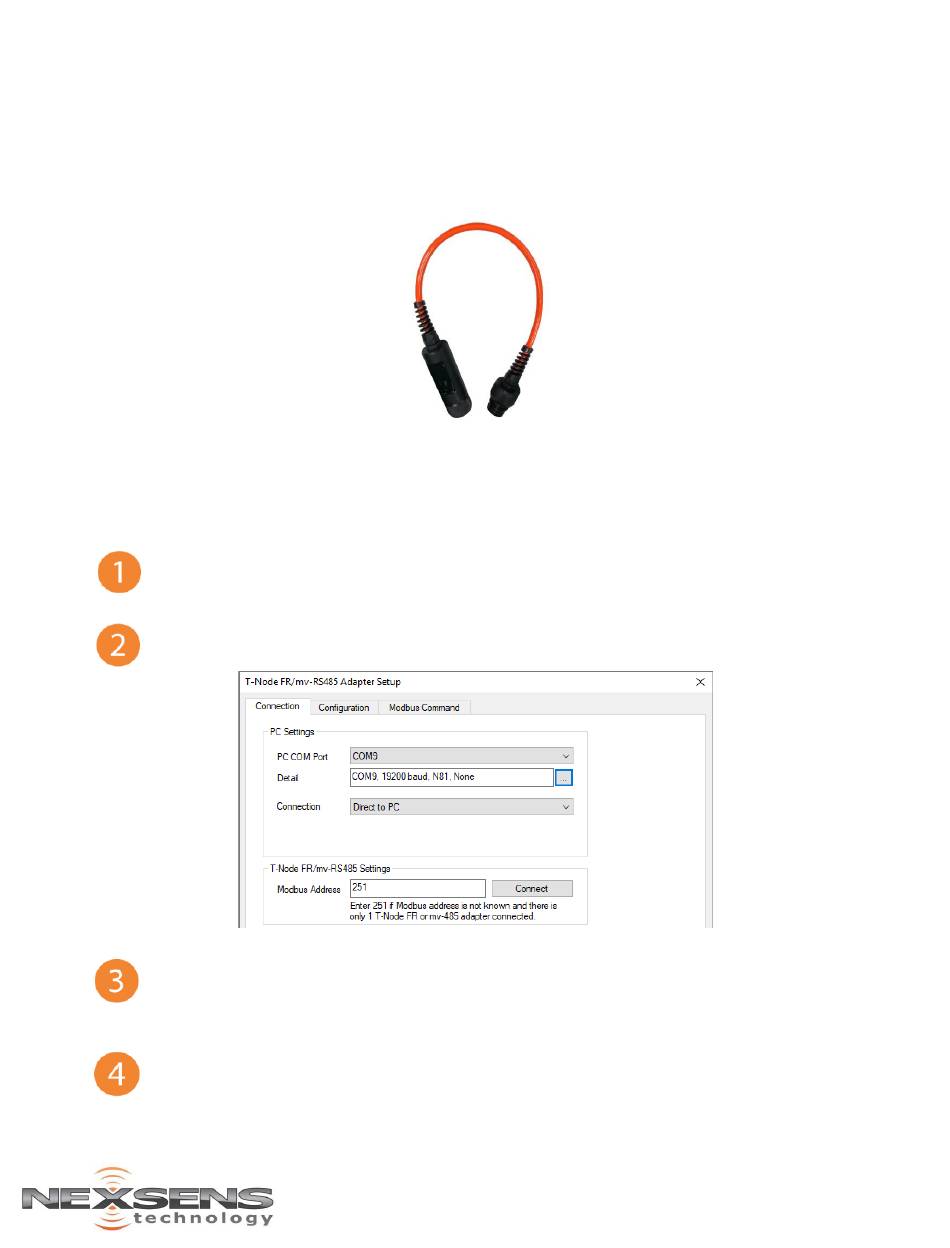

1. Use a UW-USB-485R cable to connect the mV-RS-485 adapter to a PC that
contains the latest iChart software.
2. From the tool bar at the top, select Advanced | T-Node FR/mV-RS485
Adapter | Setup...
-Select the PC COM Port to which the adapter is connected
-Set the connection type to Direct to PC
-Enter the Modbus Address (If this address is unknown, use the universal
address of 251)
Click connect, and go to the Configuration tab
Quick Start Guide
1
2091 Exchange Court
Fairborn, Ohio 45324
937-426-2703
www.NexSens.com
Advertisement
Table of Contents
Summary of Contents for NexSens mV-RS485
-
Page 1: Quick Start Guide
1. Use a UW-USB-485R cable to connect the mV-RS-485 adapter to a PC that contains the latest iChart software. 2. From the tool bar at the top, select Advanced | T-Node FR/mV-RS485 Adapter | Setup… -Select the PC COM Port to which the adapter is connected... -
Page 2: Getting Started
X2-series data logger 2. Connect the sensor cable to the receptacle end of the adapter. 3. Follow the X2 data logger Quick Start Guide and verify the mV-RS485 adapter information updates to WQData LIVE following the sensor detection. 2091 Exchange Court...
