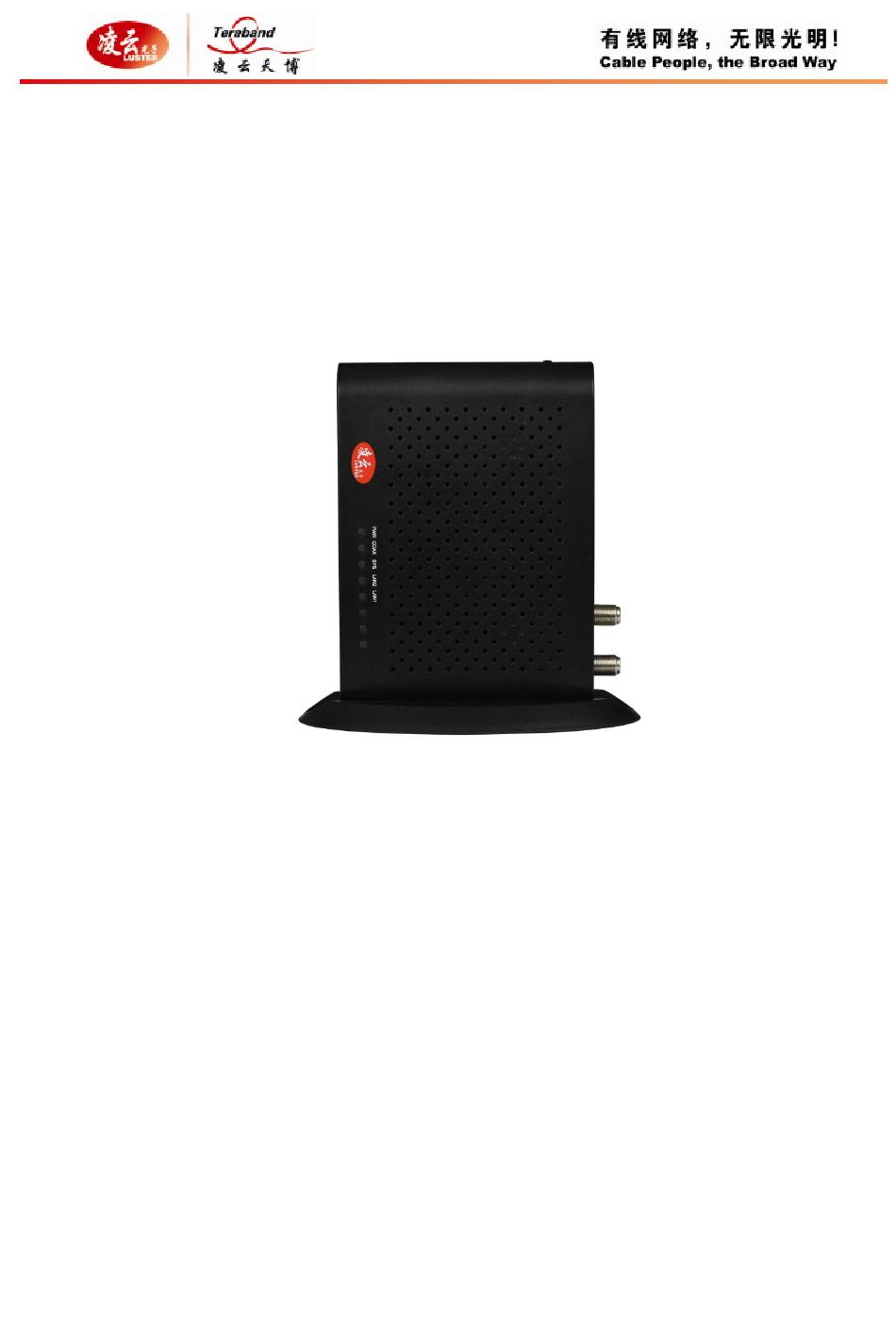

- Page 1 CableTRAN Series MoCA1.1+ CPE User Manual Luster TeraBand Photonics Co., Ltd...
-
Page 2: Product Overview
Product Overview CableTRAN series MoCA1.1+ CPE is indoor equipment including standard, customized, two network ports and four network ports equipment. It adopts technology of MoCA1.1+ and can be used in high-quality coaxial two-way network rebuilding project. It supports video, data and voice services. - Page 3 1. Back Interface Interface Instruction Television signal output, used to connect TV, set-top box, TV OUT (Wired output) metric interface Wired television signal input, used to connect coaxial CABLE IN Coaxial input network, metric interface 100M Ethernet interface, used to connect computer, LAN1 (Set Top Box) set-top box, etc., RJ45 interface...
- Page 4 Light On: Power works normally Off: Coaxial disconnected Coaxial Connection COAX On: CPE is connected to network Indicator Light Flicker: Sending and receiving data Off：System is not started System Indicator Light On: System is started normally Off: User equipment disconnected Network Connection LAN1-2 On: User equipment is connected normally...
- Page 5 CABLE IN Wired television signal input, used to connect coaxial network, Coaxial input metric interface LAN1 100M Ethernet interface, used to connect computer, set-top (Computer) box, etc., RJ45 interface LAN2 100M Ethernet interface, used to connect computer, set-top (Set Top Box) box, etc., RJ45 interface 100M Ethernet interface, used to connect computer, set-top LAN3-4...
- Page 6 Flicker: Sending and receiving data Off：System is not started System Indicator Light On: System is started normally Off: User equipment disconnected Network Connection LAN1-4 On: User equipment is connected normally Indicator Flicker: Sending and receiving data 3. Slide power switch on the side Default is power-off on the left and power-on on the right.
- Page 7 2. Check if the user equipment works normal 3. Restart the machine (power off first and then power on) Luster TeraBand Photonics Technology Co., Ltd. Address: 4/F, Building D, Jiading Science Park of Shanghai University, 1355 Chengbei Road, Jiading District, Shanghai, China (ZIP Code: 201807)
- Page 8 Product Warranty Card Purchase Date： Customer Tele Address Product Type Serial Number One year Explaination Warranty Period Lifetime Welcome to use our product. Warranty 1. Since the purchase date, the machine can be Failure repaired for free by this warranty card during the Instruction warranty period.
