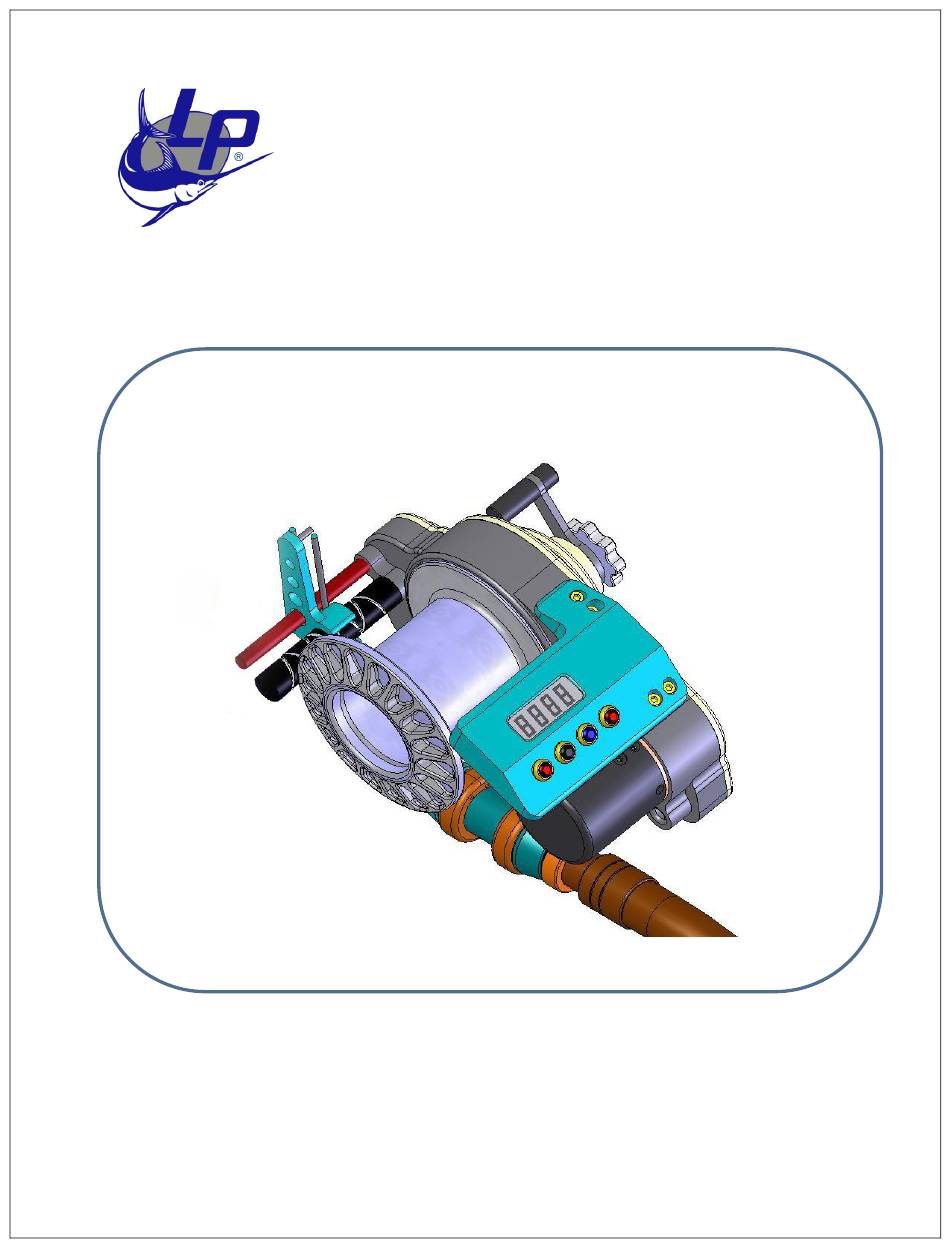

Lindgren-Pitman LP S-1200 12-Volt Electric Fishing Reel
Instruction and Maintenance
Thank you for purchasing the finest electric reel available. Please read this instruction
manual in its entirety before operating the reel. The L/P S-1200 is an investment that if
taken care of, should provide many years of fishing.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Lindgren-Pitman LP S-1200
- Page 1 Lindgren-Pitman LP S-1200 12-Volt Electric Fishing Reel Instruction and Maintenance Thank you for purchasing the finest electric reel available. Please read this instruction manual in its entirety before operating the reel. The L/P S-1200 is an investment that if taken care of, should provide many years of fishing.
- Page 2 A Hi-Amp Buss swing arm breaker with a manual trip push button is available from you local marine store or from Lindgren-Pitman. The red wire is the positive, the black is the negative. PLEASE NOTE: do not shorten the length of the reels cord –...
- Page 3 A Hi-Amp Buss swing arm breaker with a manual trip push button is available from your local marine store or from Lindgren-Pitman. The red wire is the positive, the black is the negative. PLEASE NOTE: Do NOT shorten the length of the reels cord –...
- Page 4 24-Volt Large Inboard Boat Wiring Option 60 Amp Vanner Voltmaster 66-60 (One per reel) Minimum Wire Sizes from Battery to Outlet: 0 to 10 feet - 8 AWG 10 to 20 feet – 6 AWG For runs greater than 20 feet please call customer service to discuss your options.
- Page 5 Mounting: The S-1200 weighs approximately 20 pounds with an empty spool. Please take into account the load requirements that your rod holders can handle. We recommend that at the very minimum your existing holders should be bracketed to the gunnel. Lindgren- Pitman, Inc.
- Page 6 Loading the Spool: Typically the line of choice will be preloaded by the retailer. If not already done, it can be easily accomplished with a 12-volt DC power source such as a standard automotive battery. WARNING: never use a battery charger to run the S-1200 as the power is not clean and it can damage the circuitry and void your warranty.
- Page 7 CONTROL PANNEL BUTTONS Reset Button This button zeros the counter. The “stop at zero” feature uses this as the reference point to turn the reel off. WARNING: Never push the reset button without first setting the rig at least 20 feet below the top of the pole. Failure to do this could cause the fishing rig to retrieve past the tip and the possible loss of gear and fish.
- Page 8 Hi-Low 2-Speed Button The S-1200 can operate in two speed settings, hi and low. This is done by pushing the hi- low button while the reel is running. Typically the reel will spend the majority of the time in high speed. The low speed is used under heavy loads as it cuts the amperage draw and makes for less slipping of the drag.
- Page 9 S-1200 Features: High Power “state-of-the-art” 12-VDC motor operation Electronic control and switching. Backlit electronic counter Stop at zero mode Simple easy to use controls Hands off hauling Gear driven level winder Ergonomic cantilever design ...
- Page 10 Should you notice any loss in performance or have any problems operating the S-1200 it should be returned to Lindgren-Pitman, Inc for evaluation. There are no parts inside the reel that can be serviced except by factory technicians. All parts are fit to exacting tolerances and any attempt made to open either the case or display will void the warranty.
- Page 11 EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. Lindgren-Pitman, Inc. retains the exclusive right to repair or replace the product or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE...
- Page 12 The S-1200 is protected by Both Domestic and Foreign Patents Pending Manufactured in the U.S.A Lindgren-Pitman, Inc. 2615 N.E. 5 Avenue Pompano Beach, FL 33486 Phone (954) 943-4243 Fax (954) 943-7877 Email: sales@lindgren-pitman.com www.lindgren-pitman.com...
