NUTRICHEF PKNESPRESO70 User Manual

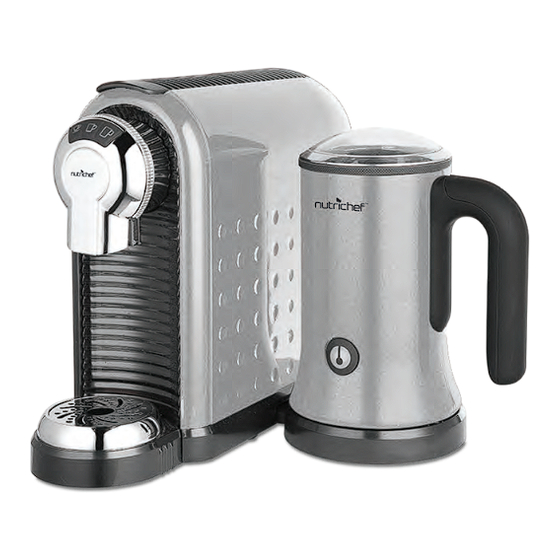

Automatic capsule espresso maker with hot & cold milk frother
Hide thumbs
Table of Contents

Advertisement

Quick Links

PKNESPRESO70
Espresso Machine & Milk Frother
Automatic Capsule Espresso Maker with Hot & Cold Milk Frother

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKNESPRESO70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NUTRICHEF PKNESPRESO70

Summary of Contents for NUTRICHEF PKNESPRESO70

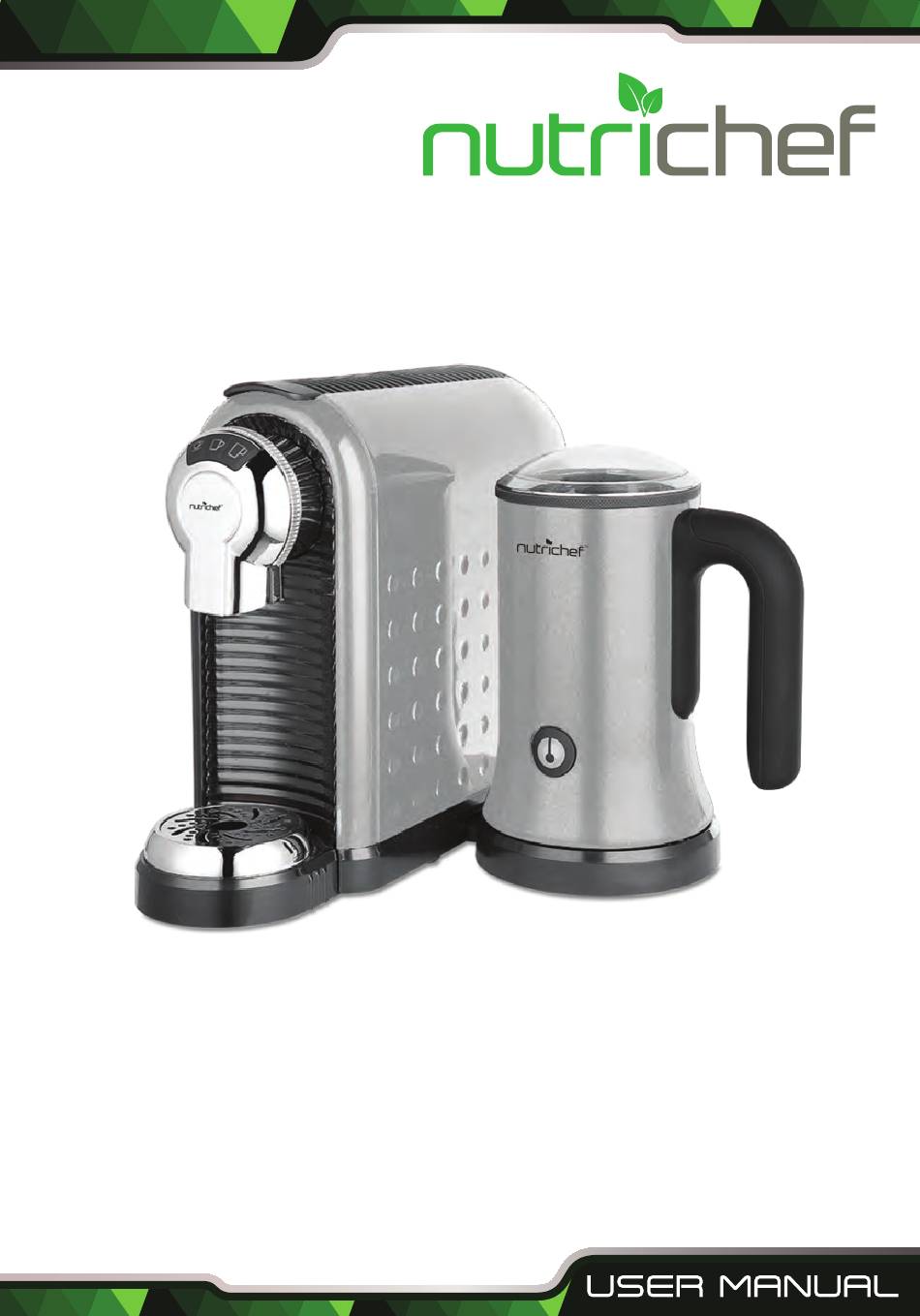

  • Page 1 PKNESPRESO70 Espresso Machine & Milk Frother Automatic Capsule Espresso Maker with Hot & Cold Milk Frother...
  • Page 2 PLEASE READ THIS INSTRUCTION MANUAL AND SAFETY INSTRUCTIONS BEFORE OPERATING THE APPLIANCE! Please take time to read these safety precautions carefully before con- necting your machine to the power supply. It is essential to follow them and the operating instructions. •...

  • Page 3: Important Safeguards

    *In such cases immediately have the machine checked and repaired if necessary at the customer service centre. • The machine location must meet the following requirements: *Choose a dry, stable and level support surface not immediately underneath the power point at least 60 cm away from the washbasin and taps.

  • Page 4: Plasticizer Warning

    Notes on the Plug This appliance has a grounded 3-prong plug. Connect to a properly grounded outlet only. Do not attempt to modify the plug in any way. Plasticizer Warning CAUTION: To prevent plasticizers from migrating to the nish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the nish of the counter top or table top.
  • Page 5 • Do not open the handle when the machine is brewing. • Always pull out the power plug before cleaning the machine. • Only use the machine in a dry room. • Thoroughly rinse out the water tank with fresh water before using for the first time.
  • Page 6 HOW TO COMBINE THE COFFEE MACHINE WITH MILK FROTHER Put the PKNESPRESO70 on a at Insert the milk frother base in this surface. hole. Use one hand to slant the co ee machine a little and use the other hand to insert the base according to the arrow on the picture www.NutrichefKitchen.com...
  • Page 7 It shows the base is already Then put the machine on a at connected with the co ee machine surface. Put the milk frother on the base Plug the power cord into the according to the arrow on the electrical outlet, you will hear a beep picture.

  • Page 8: Milk Frother

    Machine Parts and Controls Overview MILK FROTHER www.NutrichefKitchen.com...

  • Page 9: Espresso Machine

    ESPRESSO MACHINE Short espresso button No. name handle bu�ons Normal Dispenser Lungo espresso Espresso button Drip tray set button wall Water tank water tank (removable) Power cord Adjustable dispenser spout (2 positions） Main switch Used capsule container Drip tray cover drip tray (removable) www.NutrichefKitchen.com...
  • Page 10 ESPRESSO MACHINE Definition of Lighting name status func�on ac�on First use. Refer to “flash out the machine and internal indicator circuit” Light steady/Water tank Fill up water tank, open is empty. handle, then press any b � bu�on to fill the internal t fill th i t circuit.
  • Page 11 USING THE MILK FROTHER Max capacity Function Whisk option Time (marked with circle) To make cold, ~80~100s frothed milk To make hot, frothed milk ~130~180s To heat milk www.NutrichefKitchen.com...
  • Page 12 1. Choose the appropriate whisk and insert it on the whisk head inside the jug. (see the table above for reference). 2. Pour milk into the jug according to the max & min markings. (See the max capacity for each whisk type above for reference), place the jug on power base.
  • Page 13 USING THE ESPRESSO MACHINE Fill / Refill Water Tank There are two ways to fill the water tank: Directly into the machine, by using for example a jug, or by removing the water tank. Filling without removing the tank • Raise the water tank lid •...
  • Page 14 The lights on the control buttons are blinking, blue lights in used-capsule container is lighted in blue which goes o after 1 minute Tips: You can check easier if the used container is full or not when the blue light is ON. The indicator will blink in red for first use, meaning the internal circuit is empty.
  • Page 15 Brewing Co ee *Make sure the water tank is in place before brewing. Because there is hot cleaning water come out during heating up. CAUTION HOT WATER RISK OF SCALDING 1. Place an empty cup under the dispenser. For small cups, low down the dispensing spout. 2.

  • Page 16: Energy Saving Mode

    Energy saving mode. The machine enters energy saving model automatically once the machine is idle for 15 minutes. The 3 buttons will flash cyclically in energy saving mode. To access quiet energy saving mode, please press any button, appliance will start warming up with lights blinking, when the buttons are lit steadily, the machine is ready to brew co ee.
  • Page 17 Decalcification Decalcification / Maintenance Drinking water varies according to region. The lime particles in hard drinking water are deposited as residues in the machine and can block the piping and cause damage. To prevent this, be sure to decalcify the machine at the very least after making 300 to 400 cups of co ee or in any case if the output falls significantly or after one or two months.

  • Page 18: Factory Reset

    4. Fill the water tank with water to maximum level mixed with decalcifying solution, make sure the solution is dissolved completely. 5. Press the small button to run decalcifying water as you brew co ee normally, repeat for several times to run out the entire tank water. 6.
  • Page 19 Steaming out / Storage / Transport Steaming Out • Prior to long periods of disuse or for storage or transport at temperatures below 41°F, it is essential to steam out the machine. This removes water from the system to prevent internal frost damage. •...

  • Page 20: User Maintenance Instructions

    USER MAINTENANCE INSTRUCTIONS This appliance requires little maintenance. It contains no user serviceable parts. Do not try to x it by yourself. Refer it to a quali ed appliance repair technician if servicing is needed. Care & Cleaning Instructions NOTE: To reduce build-up of milk residues, always empty any residual milk and clean immediately after frothing completed.

  • Page 21: Troubleshooting

    TROUBLESHOOTING MILK FROTHER ISSUES SOLUTIONS Not be able to start Check the power is corresponding to your civil electricity. The jug is placed on its original base, not kettle’s base. Poor quality of milk Check if the proper whish is used or not. after frothed.
  • Page 22 1)Change the Capsules. Handle can not close brewing chamber. 2)Push the Capsule a li�le deeper to align with the Capsule chamber. PKNESPRESO70 Espresso Machine & Milk Frother Automatic Capsule Espresso Maker with Hot & Cold Milk Frother Espresso Maker Features: •...
  • Page 23 Milk Frother Features: • 2-in-1 Milk Frother & Warmer • Choose Your Froth: Creates Hot or Cold Milk Froth! • Simple Electric Plug-in Design • Sleek, Modern Kitchen Style • Quick Heat Ability, Warms in Seconds • Transparent Lid to see the Frothing •...
