Spectrum Solution
FOCUS
series
LED Linear Bay Light
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FOCUS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Spectrum Solution FOCUS Series

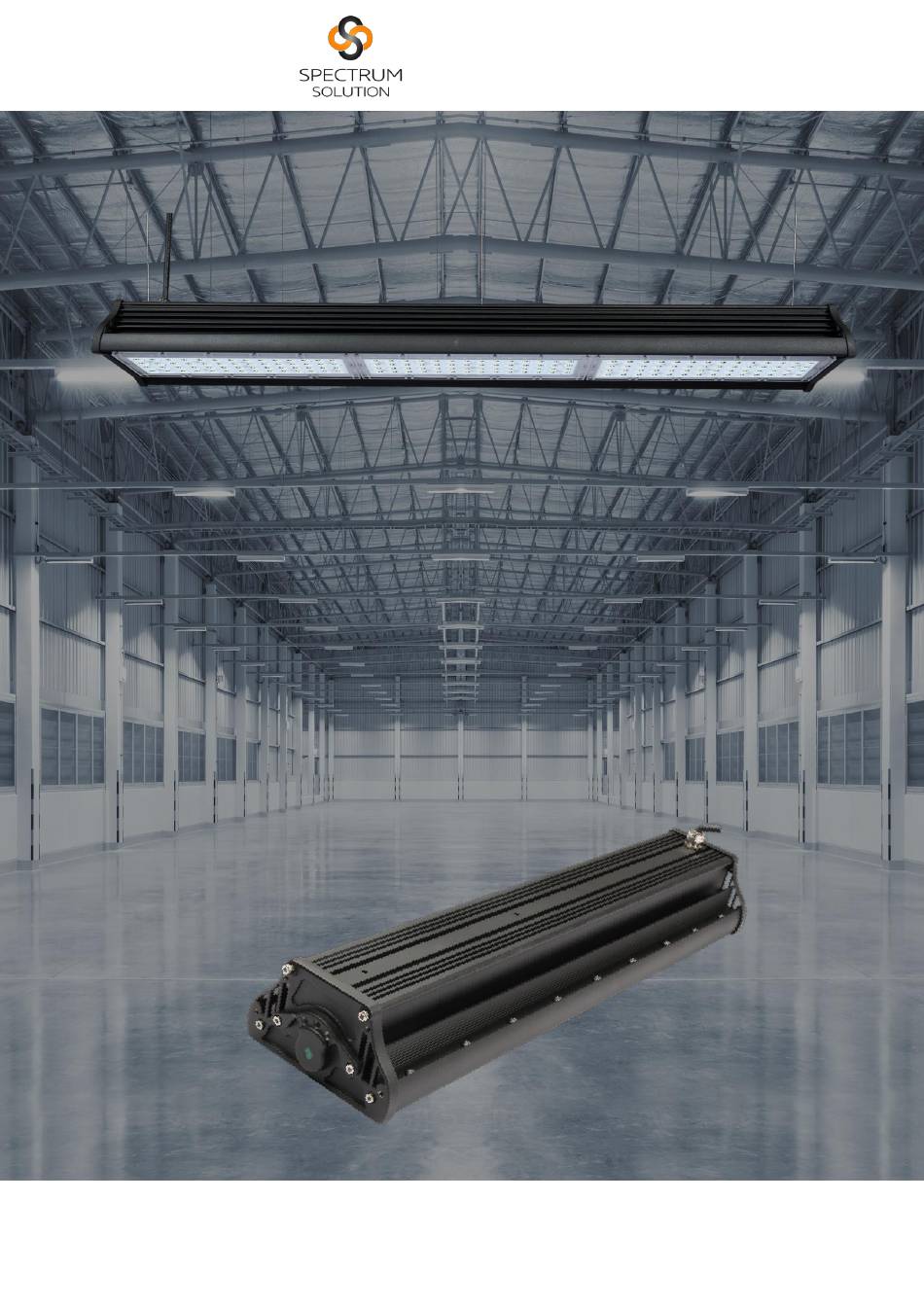

  • Page 1 Spectrum Solution FOCUS series LED Linear Bay Light User Manual...
  • Page 2 Spectrum Solution I ntroduction Materials Patented fin aluminium heatsink structure; High quality aluminium processing technique; Special surface treatment process; High brightness LED light source, high efficiency and long life power supply. Applications Widely us in warehouses , workshop, highway toll station, gas station,...
  • Page 3 Spectrum Solution Parameter: SPECTRUM-LBL-50W / BLT-LB-50 Model Input Voltage AC90--305V Frequency 50-60 HZ LED Source LUXEON 3030 2D LED Power Total System Power LED Qty 56 Pcs Led Luminous Efficiency 120 lm / W Initial Luminous Flux 6000 LM Color Temperature 2700K - 6500K Ra>70...
  • Page 4 Spectrum Solution SPECTRUM-LBL-100W / BLT-LB-100 Model 100W Input Voltage AC90--305V Frequency 50-60 HZ LED Source LUXEON 3030 2D LED Powerr Total System Power 105W LED Qty 112 Pcs Led Luminous Efficiency 120 lm / W Initial Luminous Flux 11500 LM...
  • Page 5 Spectrum Solution SPECTRUM-LBL-150W / BLT-LB-150 Model 150W Input Voltage AC90--305V Frequency 50-60 HZ LED Source LUXEON 3030 2D LED Powerr 150W Total System Power 165W LED Qty 168 Pcs Led Luminous Efficiency 120 lm / W Initial Luminous Flux 18000 LM...
  • Page 6: Product Dimension

    Spectrum Solution Product Dimension : SPECTRUM-LBL-50 / BLT-LB-50 SPECTRUM-LBL-100W / BLT-LB-100 SPECTRUM-LBL-150W / BLT-LB-150...
  • Page 7 Spectrum Solution Installation Guideline 1. make the bead ring is fastened to the ceiling, and hang the light up with hock. 2. For safety, make sure the power cables are connected by electricians.
  • Page 8 Spectrum Solution Package 100W 150W 2.5kg 4.2kg 5.8kg 2.8kg 4.6kg 6.2kg Packing Size(W ,L,H) 36*17.5*14CM 64.5*17.5*14 cm 92*17.5*14 cm...

This manual is also suitable for:

Spectrum-lbl-50wBlt-lb-50Spectrum-lbl-100wBlt-lb-100Spectrum-lbl-150wBlt-lb-150
