- Page 1 NTS-pico3 Miniature NTP Time Server for Small Networks User Manual Date: 07.08.2019...
-
Page 2: Table Of Contents
Table of Contents Introduction Safety instructions What is NTS-pico3? Installation Hardware General presentation Antenna Mounting Additional lightning protection considerations Powering up Basic SETUP IP addressing Monitoring GNSS satellite signals ON-LINE Running NTP (Network Time Protocol) Configuring NTP Monitoring NTP on-line Synchronizing Microsoft Windows clock Synchronizing Linux &... -
Page 3: Introduction

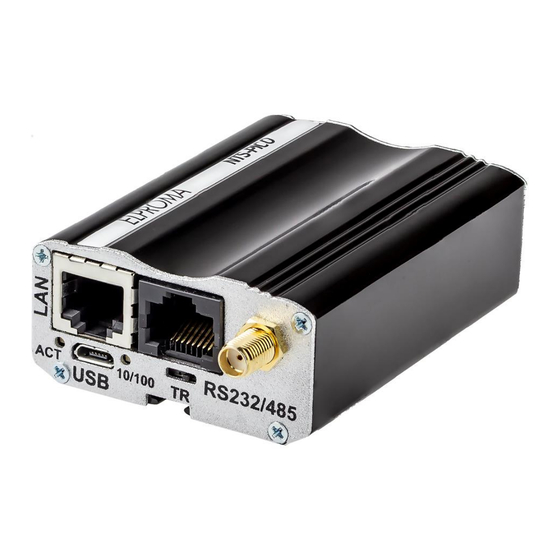

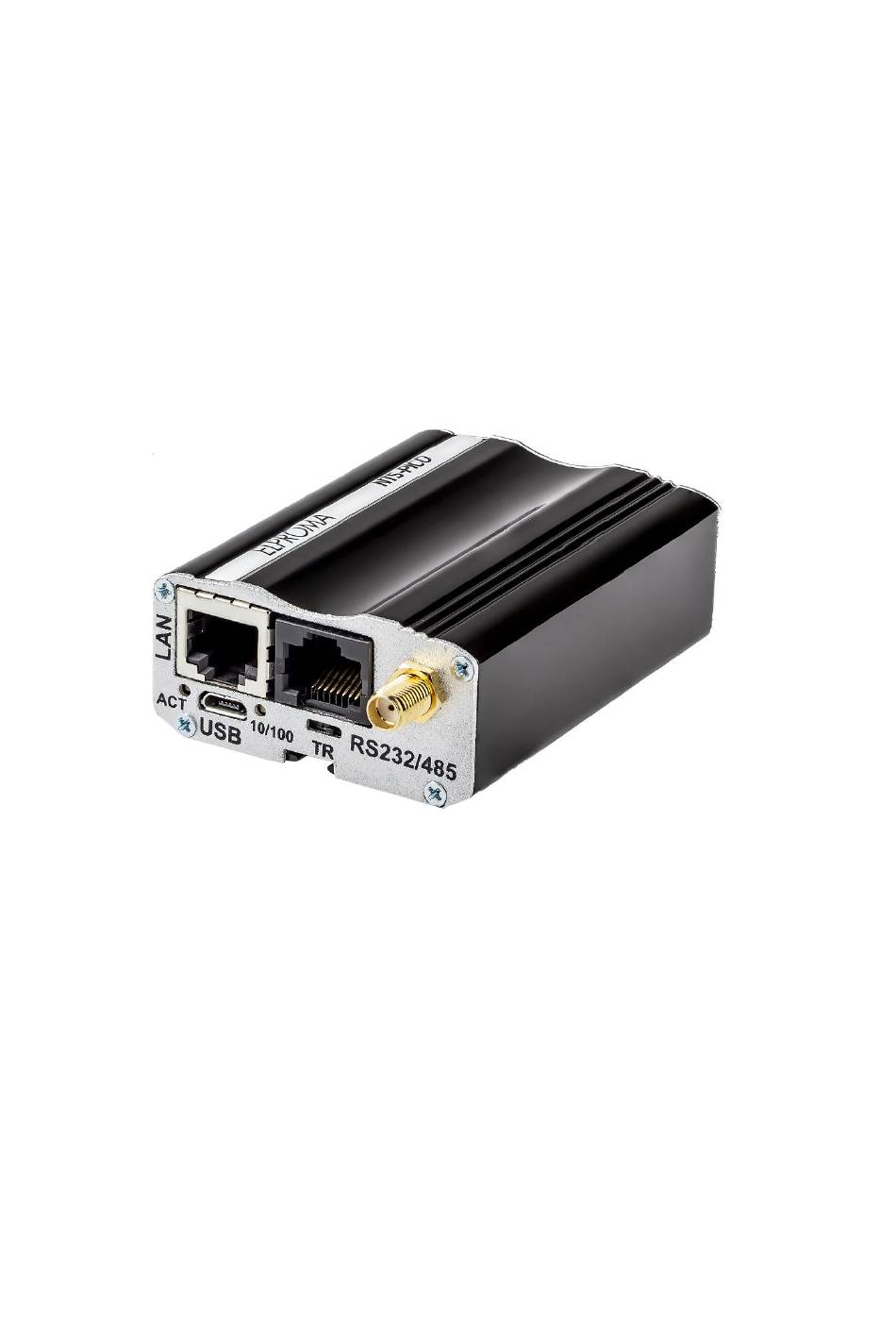

What is NTS-pico3? NTS-pico3 is next generation ultra miniature time server. It delivers time directly to network using NTP and PTP/IEEE1588 protocols. It is equipped with single 100/10Mbps Ethernet port working with IPv4/IPv6*. Unit is very small and natural air cooling. It has been designed for small industrial networks and it can operate 24/7. - Page 4 Referential UTC is drawn from GPS & Glonass via built-in GNSS receiver, using NMEA183 frame. NTS-pico3 can also act as an 1PPS frequency reference clock. It can distribute 1PPS using NTP or PTP IEE1588 protocol. It has also 1 SMA 1PPS output.
-
Page 5: Installation
Installation Hardware The NTS-pico3 box on arrive includes: 1. NTS-pico3 miniature time server (pcs 1) 2. Power supply 12VDC/230VAC (pcs 1) 3. Outdoor active GNSS antenna w/ 30m coax H-155 and accessories (pcs 1) Options (not included in standard set): 4. -
Page 6: Antenna Mounting
The antenna is supplied with mounting clamps for attachment to a mounting pole, included too. Mast antenna suspension (H=0.5m) is not included but it is available as separate products from Elproma. Following figure shows an example of how mounting antenna might be achieved. -
Page 7: Additional Lightning Protection Considerations
NTS-pico3 unit. A second lightning arrestor should be installed near to the NTS-pico3 to further dissipate any remaining lightning energy. At the earth end please use multiple connection points if... - Page 8 Failure to do so is almost certain to result in destruction of NTS-pico3 and connected into it equipment in the event of the antenna receiving a near lightning strike.
- Page 9 NTS-pico3 surge protection...
-
Page 10: Powering Up
Powering up 1. Connect GNSS antenna to SMA connector at NTS-pico3 2. Connect Ethernet LAN cable to RJ45 connector 3. Plug-in DC power supply to power input and turn power ON Basic SETUP Go to your web browser and put IP address 192.168.1.234/255.255.255.0. - Page 11 IMPORTANT NOTE! For time synchronization purpose please do not use DHCP/DNS. You will need to keep SSH communication ON for GNSS signals tracing. SSH enable (ON) and password is necessary for tracing on-line GNSS signals...
-
Page 12: Monitoring Gnss Satellite Signals On-Line
Monitoring GNSS satellite signals ON-LINE You SSH communication must be switched on first. Please execute from window terminal following commands: ssh root@192.168.1.234 -p 65535 root@192.168.1.139's password: 12345 [root@rbmtx ~]# TERM=vt220 [root@rbmtx ~]# gpsmon GPSmon tool let you trace satellite signals on-line This screen is the tool to monitor GNSS (GPS &... -
Page 13: Running Ntp (Network Time Protocol)
Running NTP (Network Time Protocol) Configuring NTP NTS-pico3 firmware starts NTP server and synchronizes to UTC time received from GPS by default. You can add backup NTP servers in NTP Peer 1...3 fileds. -
Page 14: Monitoring Ntp On-Line
Monitoring NTP on-line You SSH communication must be switched on first. Please execute from window terminal following commands: ssh root@192.168.1.234 -p 65535 root@192.168.1.139's password: 12345 [root@rbmtx ~]# ntpq You can use full spectrum of std. NTP monitoring tools incl. ntpq and ntpdc to trace and monitor Network Time Protocol. -
Page 15: Synchronizing Microsoft Windows Clock
Synchronizing Microsoft Windows clock You simply synchronize any version of Microsoft Windows by simple selecting “Time from Internet” and providing NTS-pico3 IPv4 . Below there is example for Windows 10. Using NTS-pico3 as primary source of NTP time for Microsoft Windows Synchronizing Linux &... -
Page 16: Running Ptp (Precision Time Protocol)
Running PTP (Precision Time Protocol) Switching on PTP enables PTP grandmaster daemon. PTP options: Transport layer L2 (Ethernet): PTP packets are encapsulated directly in Ethernet frames (IEEE 802.3 network transport) L4 (UDP): PTP packets are exchanged over UDP/IPv4 IP mode The option available for L4 (UDP) transport layer only. - Page 17 Delay is measured peer-to-peer. If transparent clocks are present in a network they need to support peer-delay mechanism (and be configured to enable it). SYNC interval (default 1) SYNC packet interval value must be in range -7..7 (recommended limits are -3...3). -4: 62.5ms (1/16 s) -3: 125ms (1/8 s) -2: 250ms (1/4 s)
- Page 18 To troubleshoot NTS-pico3 you need first to log into device console using serial cable or SSH. How to check if PTP is working? From NTS-pico3 console you can check if ptp process is running. If everything is fine, you shall get 1 in return:...
-
Page 19: Appendix
APPENDIX Technical Specification model NTS-pico3 Miniature Time Server Antenna 1x SMA interface holdover OSC TCXO std. GNSS GPS, GLONASS sync PROTOCOL NTP, PTP IEEE1588 extra* GNSS GALILLEO*, BEIDOU* RFC5905,RFC1305, RFC5906 #SBAS EGNOS, WAAS, GAGAN RFC5907,RFC5908,RFC5909 SNTP RFC4330, RFC2030, RFC1769 FREQ #1 1575.42MHz (L1 GPS) - Page 20 hardware accuracy < 200ns POWER 9-30VDC STAMPING* software accuracy < 800us * extra feature STAMPING...
