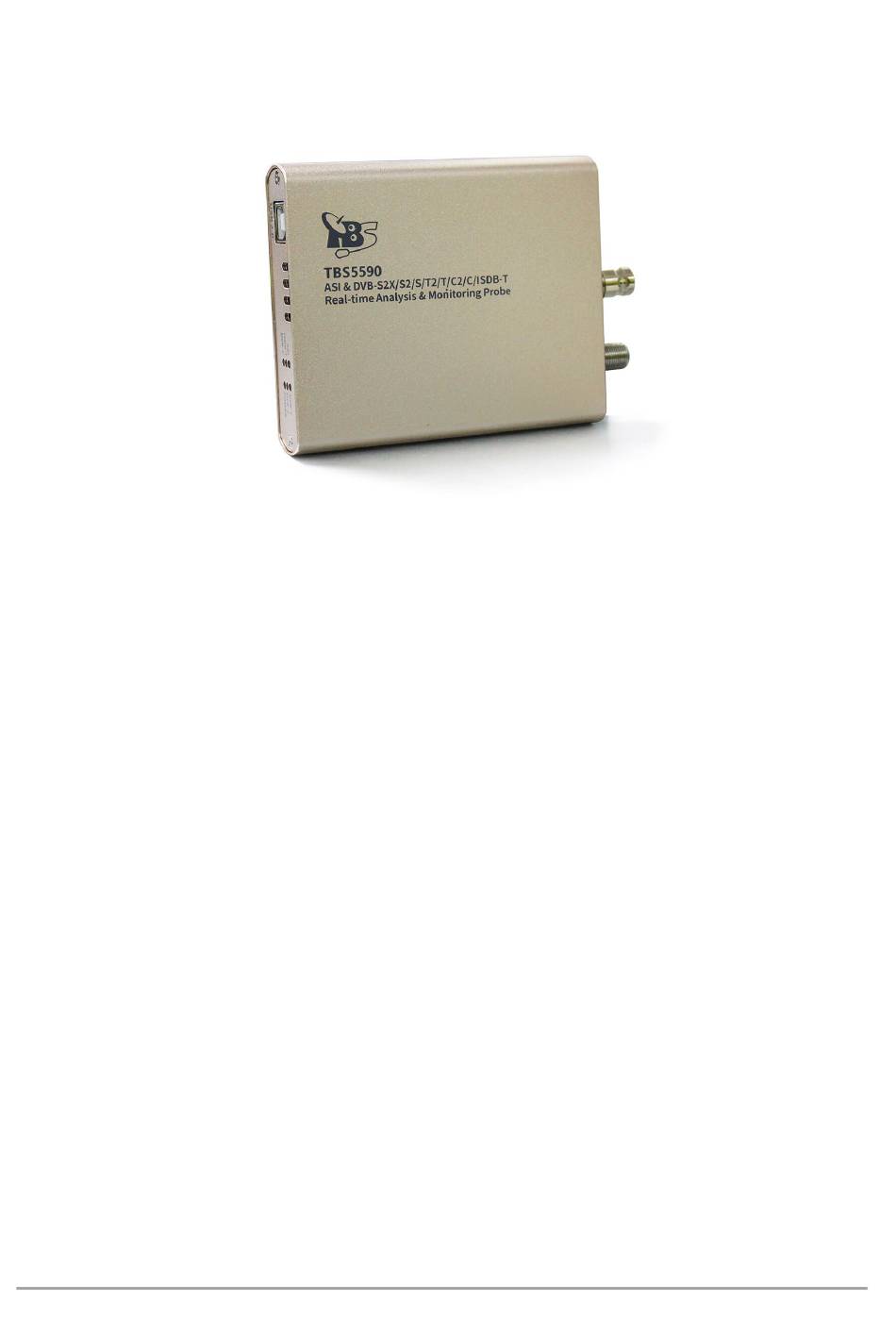

- Page 1 TBS5590 DVB multi-standard Probe User Guide Copyright © TBS Technologies 2005-2018 All Rights Reserved 2018-07-25 1 / 13 TBS5590 User Guide...
-
Page 2: Table Of Contents
1.1 Product Presentation ..........................3 1.2 Product Specifications ..........................4 2. Quick Start(Driver install) ............................. 5 3. How to use with TSReader ........................... 7 3.1 DVB-S/S2 ..............................8 3.2 QAM-B ..............................10 3.3 ASI ................................12 2 / 13 TBS5590 User Guide... -
Page 3: Product Overview

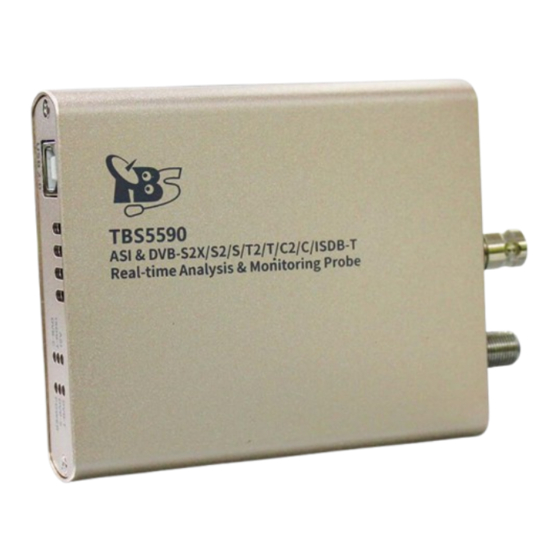

TBS5590 is a DVB multi-standard external TV tuner box with USB2.0 interface. It is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T. Through the USB interface, you can easily plug the TBS5590 Universal TV Tuner box to your desktop or laptop PC for watching or recording different standards digital TV channels. -
Page 4: Product Specifications
QAM demodulator, FEC decoder, 1 to 7.2MSymbol/s j.83ANNEX B DVB-S/DVBS2/DVB DVB-S/S2: QPSK,8PSK,16APSK,32APSK DVB-S2x: QPSK,2_4_2_APSK,8PSK,16APSK, 4_12_16rb_APSK, 4_8_4_16_APSK DVB-ASI Up to 200Mbps Input/Power 12V/2A Temperature 0 ~ 60℃ System Windows XP / Vista/ 7/8/10 Requirements Available USB 2.0 Slot 4 / 13 TBS5590 User Guide... -
Page 5: Quick Start(Driver Install)
For windows 10 please download this driver: https://www.tbsiptv.com/download/tbs5590/TBS5590_drivers_release_v1.0.0.3_win10.zip Connect the power to TBS5590 and connect the USB cable to your PC after connect you should get this picture from your windows device manage dialog: This means your PC detect your TBS5590. - Page 6 Unpack the driver package Click “TBS_5590_setup”, and then a new window will pop After success install the driver TBS5590 will show at Sound Video and game controllers device like this: 6 / 13 TBS5590 User Guide...
-
Page 7: How To Use With Tsreader
Please download the latest version of TSReader from here: http://www.coolstf.com/support/update.php after install the latest version it already include TBS5590 module files: When you choose with different module file the TBS5590 will auto change the work mode. 7 / 13 TBS5590 User Guide... -
Page 8: Dvb-S/S2
3.1 DVB-S/S2 Let us try with DVB-S/S2 open TSReader and choose TBS DVB-S/S2 5590 Box: Input the right DVB-S/S2 parameters, Press Tune 8 / 13 TBS5590 User Guide... - Page 9 If the signal is well then you will get the scan result: 9 / 13 TBS5590 User Guide...
-
Page 10: Qam-B
3.2 QAM-B Choose TBS QAM-B 5590 box Input the QAM-B parameters, Press Tune If the signal is well then it will show like this: 10 / 13 TBS5590 User Guide... - Page 11 11 / 13 TBS5590 User Guide...
-
Page 12: Asi
3.3 ASI Choose TBS ASI 5590 box If the ASI signal is well it will show all channels here 12 / 13 TBS5590 User Guide... - Page 13 If you have any problem with TBS5590 Please send email to our support@tbsdtv.com, we will reply you as soon as possible. 13 / 13 TBS5590 User Guide...
