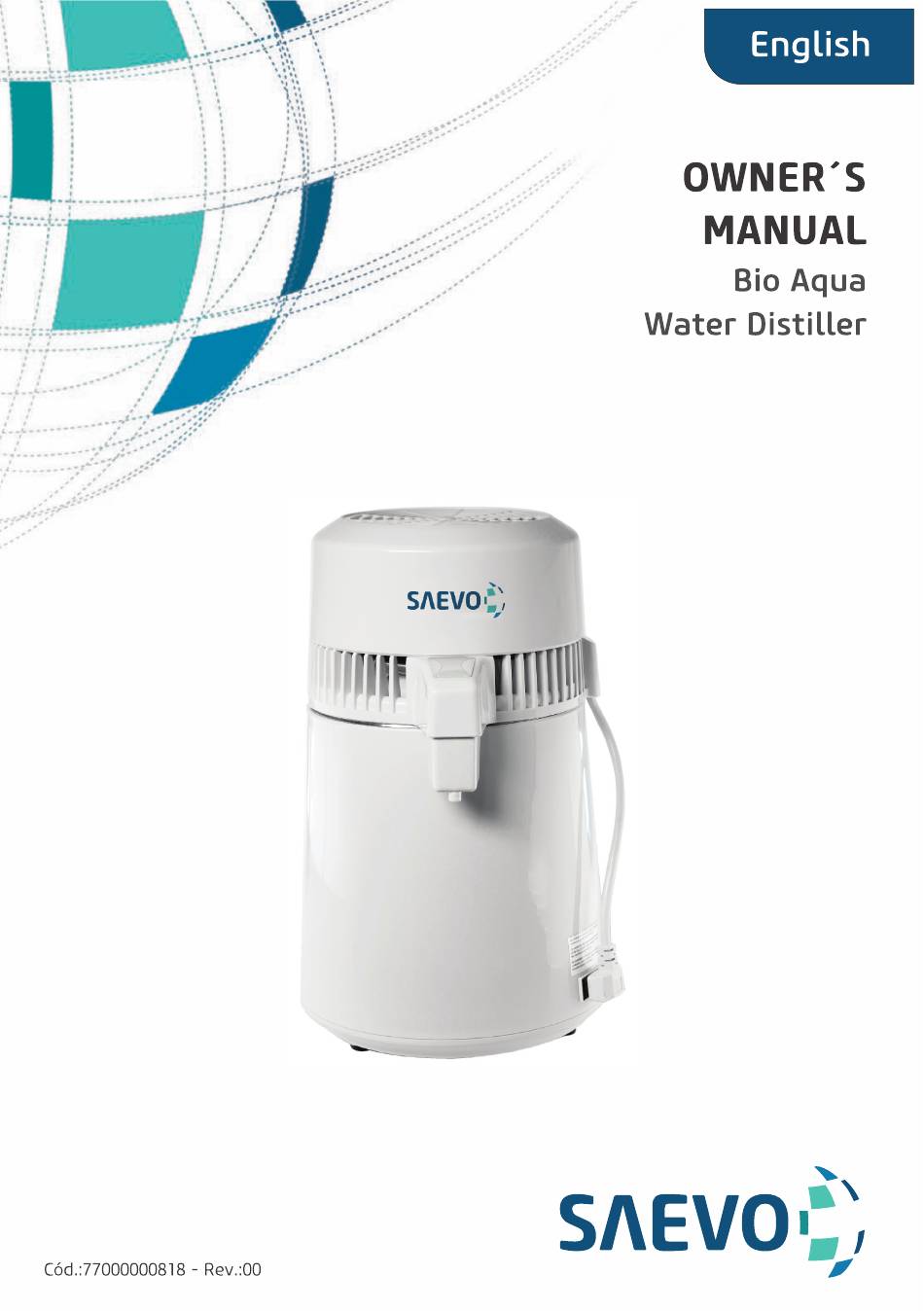

SAEVO Bio Aqua Owner's Manual

Water distiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bio Aqua and is the answer not in the manual?

Questions and answers

Summary of Contents for SAEVO Bio Aqua

  • Page 2: Presentation Of Manual

    PRESENTATION OF MANUAL INSTRUCTIONS FOR USE Technical Name: Water Distiller Trade Name: Bio Aqua Water Distiller Model: Bio Aqua Brand: Saevo Manufacturer / Distribuitor: Alliage S/A Indústrias Médico Odontológica C.N.P.J. 55.979.736/0001-45 - Insc. Est. 582.002.897.114 Rod. Abrão Assed, Km 53+450m - Cx. Postal 782 CEP 14097-500 Ribeirão Preto - S.P.

  • Page 3: Table Of Contents

    INDEX 02 PRESENTATION OF MANUAL 04 IDENTIFICATION OF EQUIPMENT 06 MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CONSUMPTION 07 TECHNICAL SPECIFICATIONS 07 General features 09 Packing symbols 09 Product symbols 10 EQUIPMENT OPERATION 12 PRECAUTIONS, RESTRICTIONS AND WARNINGS 13 Transportation, storage and operation 13 Sensitivity to predictable environmental conditions in ordinary situations of use 13 Precaution and warnings “during the installation”...

  • Page 4: Identification Of Equipment

    IDENTIFICATION OF EQUIPMENT Dear Customer Congratulations. You have made a good choice when you decided to buy a SAEVO QUALITY product comparable to the best products available in the World. This manual is a general presentation of your product and it will give you important details to help you to solve possible problems.
  • Page 5 (condensation) and when they become heavy they eliminate water back through the rain (precipitation). In Bio Aqua water Distiller, water is boiled in the boiling chamber and when it reaches a temperature of 100ºC, bacteria, viruses and other organisms that may be present are killed. Boiling water turns into steam, eliminating dissolved solids, chemical toxins, heavy metals and other contaminants.

  • Page 6: Modules, Accessories, Options And Materials Of Consumption

    MODULES, ACCESSORIES, OPTIONS AND MATERIALS OF CON- SUMPTION The content of this page is for information purposes, and the device may be presented different from that illustrated. Therefore, when purchasing the product check the technical compatibility between the device, coupling and accessories. The drawing illustrates the device with all the optional items, your device will consist only of the items chosen during your purchase option.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS Device’s Technical Features and Accessories General Model Bio Aqua water Distiller Operation mode Not continuous ("ON") 40 to 200min. ("OFF") 30min. Power Supply Power supply voltage 127V~: 100V~ - 140V~ / 220V~:198V~ - 242V~ Frequency 50/60 Hz number of phases...
  • Page 8 TECHNICAL SPECIFICATIONS Dimensions of the product 380 x 235 mm Dimensions of the packing 450 x 260 x 290 mm Net weight 3,5 kg Gross weight 4,7 kg Pay attention while using this equipment together with other movable equipment, in order to avoid collisions.

  • Page 9: Packing Symbols

    TECHNICAL SPECIFICATIONS Packing symbols It determines the maximum Packing to be transported and / quantity of boxes which can be or stored avoiding humidity, rains stacked during transportation and and wet floor storage “as per packaging” The packing must be stored and Packing to be transported and / or transported away from direct sun stored with the harrows up...

  • Page 10: Equipment Operation

    EQUIPMENT OPERATION General use The distiller consists of two main parts: the condensation cover and evaporation chamber. The cover contains a condensing coil, a mini fan and the activated charcoal filter. The evaporation chamber is made of stainless steel, with an electric heating system on the bottom part. A - Remove the condensation cover, rinse the stainless steel chamber, then fill the chamber with tap water until the maximum range that is approximately 4 liters (do not add water above this range);...
  • Page 11 EQUIPMENT OPERATION E - The distiller will automatically turn on in the first use, when this does not occur use the power button switch "SPSP". The time to produce 4 liters of distilled water is approximately 4 hours. The distiller will automatically turn off when all the water is evaporated from the chamber.

  • Page 12: Precautions, Restrictions And Warnings

    EQUIPMENT OPERATION Quantity of added water Heating time 8-12 min. 15-20 min. 20-25 min. 30-40 min. End time 40-60 min. 80-100 min. 130-160 min. 170-200 min. Suggestion: Use hot water in order to reduce the process time. PRECAUTIONS, RESTRICTIONS AND WARNINGS Never cover or block the device’s ventilation openings.

  • Page 13: Transportation, Storage And Operation

    PRECAUTIONS, RESTRICTIONS AND WARNINGS Transportation, storage and operation This equipment must be transported and stored observing the following directions: - Avoid falls and impacts; - Keep it dry, do not expose it to rain, water drops or wet floor; - Keep it away from water and direct sunlight, and in it original wrapping; - Don’t move it over irregular surfaces, protect it from rain and observe the maximum stack quantity specified in the packaging;...

  • Page 14: Recommendations For Preserving The Equipment

    - The equipment should only be operated by duly enabled and trained technicians (Dental Surgeons, Capacitated Professionals). - If any maintenance should be required, only use services of the Saevo Authorized Technical Assistance. - The device has been manufactured to support continuous and intermittent operation, so follow the cycles described in these Instructions for Use.

  • Page 15: Precautions And Warnings During The "Cleaning And Disinfection" Of Equipment

    The registration at the Ministry of Health of “Steel-Clean” is performed separately from the product described in this manual, as the “Steel-Clean” is not manufactured by Saevo.

  • Page 16: Disinfection

    For protecting your equipment, look for a Saevo’ technical assistance for periodic reviews as preventive maintenances. Corrective Maintenance Saevo states that the supplying of the circuits’ diagram, Part lists or any other information that permits the technical assistance by the user, can be requested, since previously agreed between the buyer and Saevo.

  • Page 17: Unforeseen Events – Solution Of Problems

    - Damaged Seal ring. - Contact the Saevo technical assistance. - D a m a g e d C o v e r s e t : - Contact the Saevo technical Condensation coil or mini fan.

  • Page 18: Equipment's Warranty

    Among the care you have to take with your equipment, the most important is regarding of the spare parts replacement. To ensure the lifetime of your device, only replace original spare parts from Saevo. They have the assurance of the standards and technical specifications required by the Saevo representative.
