Operating Instructions

High Bay EX LED Luminaire

Series: JUKO HX

Table of Contents

Need help?

Do you have a question about the HX-06100-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for JukoLux HX-06100-24

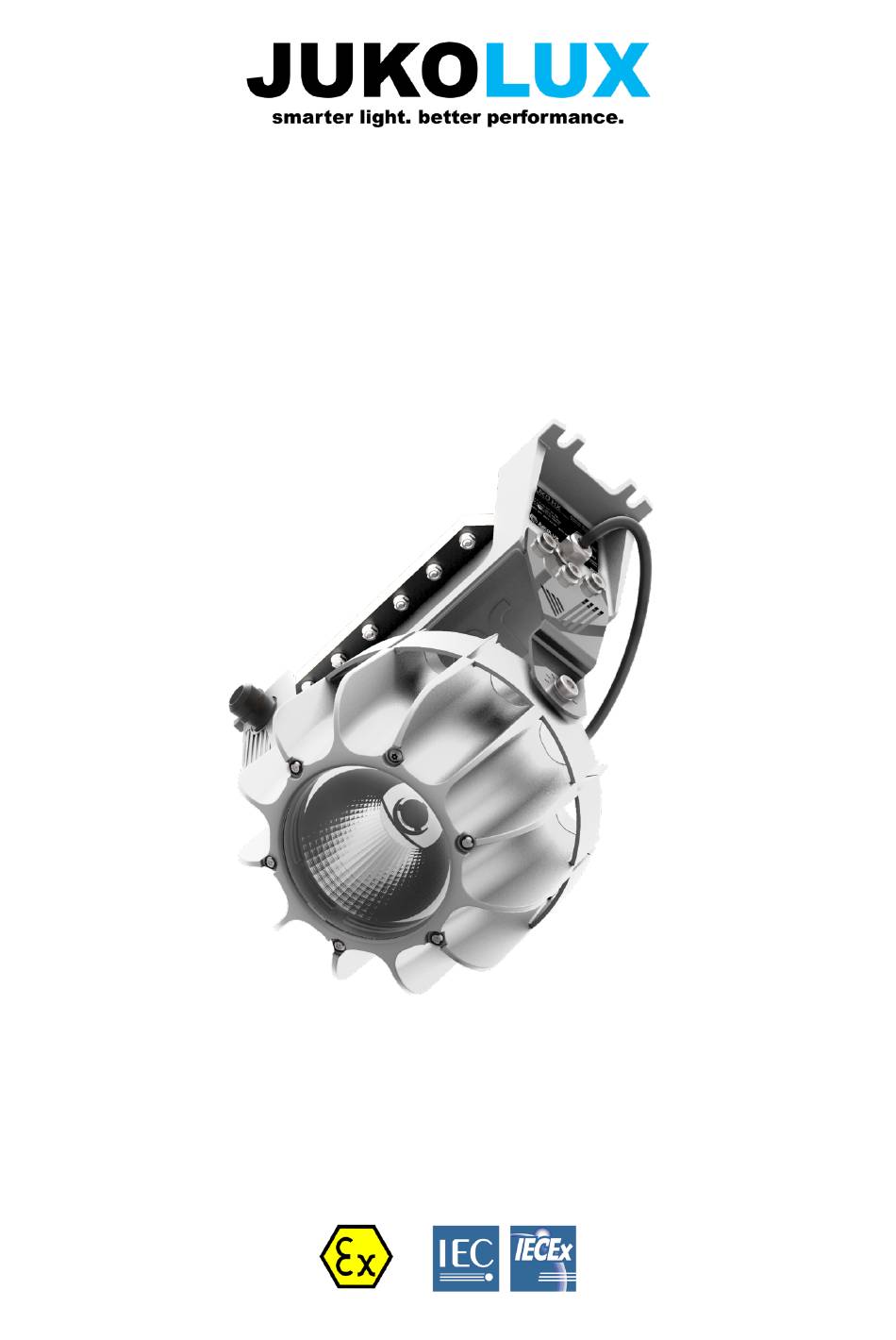

Page 1 Operating Instructions High Bay EX LED Luminaire Series: JUKO HX...
Page 2: General Information
They are legally binding in all legal affairs. 1.3 Conformity with standards and regulations Certificates and EU Declaration of Conformity are available at www.jukolux.com. The device has IECEx approval which can be viewed at http://iecex.iec.ch/. Further information about certificates can be viewed from the following link: www.jukolux.com/certificates.
Page 3: Explanation Of The Symbols
JUKO HX – Operating Instructions 2 Explanation of the symbols 2.1 Symbols used in these operating instructions Symbol Meaning Tips and recommendation on the use of the device General Danger Danger due to explosive atmosphere Danger due to energized parts 2.2 Warning notes Warnings must be observed under all circumstances, to minimize the risk due to construction and operation.
Page 4: Safety Notes
JUKO HX – Operating Instructions 2.2.3 CAUTION CAUTION Danger to persons. Non-compliance with the instruction can result in light injuries to persons. 2.2.4 NOTICE NOTICE Avoiding material damage. Non-compliance with the instruction can result in material damage to the device and / or its environment.
Page 5: Function And Device Design
JUKO HX – Operating Instructions • Work on the device (installation, maintenance, overhaul, repair) may only be carried out by appropriately authorized and trained personnel 3.3 Intended Use The LED floodlight JUKO HX is equipment • For stationary mounting • For use in Zones 1, 21, 2, 22 and in the safe area •...
Page 6 JUKO HX – Operating Instructions 4.2 Device design...
Page 7: Technical Data
II 2G Ex eb db op is IIC T5 Gb II 2D Ex tb op is IIIC T95°C Db TYPE Reflector / Beam width HX-06100-24 / HX-08500-24 / HX-11000-24 24° HX-06100-40 / HX-08500-40 / HX-11000-40 40° HX-06100-55 / HX-08500-55 / HX-11000-55 55°...
Page 8 JUKO HX – Operating Instructions Max. fittings per Circuit Breaker HX-06100- HX-08500- HX-11000-24/40/55 24/40/55 24/40/55 Type B 10 A Type B 16 A Type C 10 A Type C 16 A Power factor > 0.9 ≤ 10 %...
Page 9 JUKO HX – Operating Instructions Luminous characteristics HX-06100-24/40-55 HX-08500-24/40/55 HX-11000-24/40/55 Power consumption (W) Colour rendering (CRi) ≥ 80 ≥ 80 ≥ 80 Colour temperature (K) 4000 4000 4000 Wide Beam Luminous flux (lm) 6254 8643 11232 Luminaire efficacy (lm/w) Medium Beam...
Page 10: Transport And Storage
JUKO HX – Operating Instructions Mounting / Installation Cable entry Cable gland (M25) Stopping plug (M25) Connection Standard 3-pole (2xL1, 2xN, 2xPE) Spring clamp terminals 1.5 … 4 mm solid/stranded Stripping length: 10 … 11 mm 6 Transport and storage •...
Page 11: Mounting And Installation
JUKO HX – Operating Instructions 7 Mounting and installation DANGER Explosion hazard due to incorrect installation of the device! Non-compliance results in severe or fatal injuries. • Carry out installation strictly according to the instructions and national safety and accident prevention regulations to maintain the explosion protection.
Page 12 JUKO HX – Operating Instructions 7.1 Dimensions / fastening dimensions Dimensional drawings (All dimensions in mm) – Subject to Alterations...
Page 13 JUKO HX – Operating Instructions 7.2 Mounting / dismounting, operating position DANGER Explosion hazard due to inadmissible heating! Non-compliance results in severe or fatal injuries. • Avoid external heat sources and/or direct sunlight (risk of change of temperature class or change of maximum permissible surface temperature).
Page 14 7.3.2 Cable entries DANGER All special conditions of use for certified cable glands must be fulfilled. Luminaires that are provided with cable entries and stopping plugs supplied by Jukolux Oy must be tightened using the following values: Tightening torque Cable Entry M25 x 1.5...
Page 15 JUKO HX – Operating Instructions Do not clamp any part of the conductor insulation Do not interchange the conductors Observe the technical regulations when connecting the conductor Clamp the conductor firmly Connection terminals Standard: Push-in Cage Clamp Clamping range: 1.5mm …4mm solid and finely stranded (2 free clamping units per pole available) Stripping length:...
Page 16: Maintenance And Repair
JUKO HX – Operating Instructions NOTICE Malfunction or device damage caused by condensation. Non-compliance can result in material damage! • Operate the luminaire continuously or periodically over extended periods of time • Avoid thermal bridges 9 Maintenance and repair WARNING Risk of electric shock or malfunctioning of the device due to unauthorized work! Non-compliance can result in severe injuries and material damage.
Page 17 9.3 Returning of the device Use the service form that can be found in “www.jukolux.com > contact” if repair or service is required. Optionally scan the QR-code of the device in need of service or repair and send out a service request.
Page 18 JUKO HX – Operating Instructions Observe national and local regulations and statutory regulation regarding disposal. Separate materials when sending it for recycling. Ensure environmentally friendly disposal of all components according to the statutory regulations.
Page 19: Accessories And Spare Parts
Malfunction or device damage to the device due to the use of non-original components. Non- compliance can result in material damage. • Use only original accessories and spare parts from Jukolux Oy. See more details regarding accessories and spare parts from “www.jukolux.com”.
