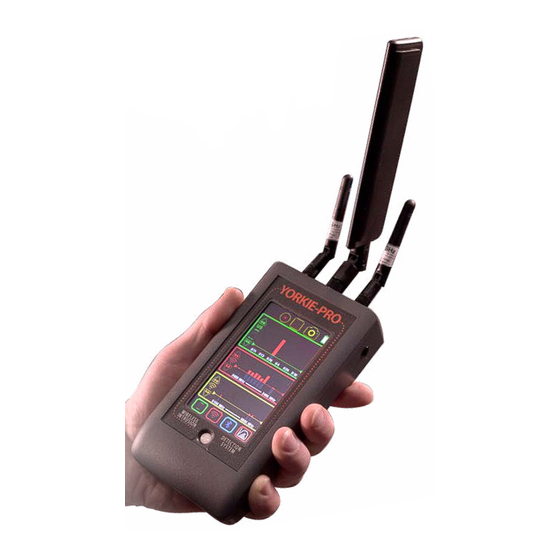

- Page 1 YORKIE-PRO YORKIE-PRO User manual version 1.5...
-
Page 2: Table Of Contents
Table of Contents Included in the box..................................2 Unit Charging and Runtime................................2 Main Measurement..................................3 Yorkie-Pro Navigation Tree................................4 Features and Navigation................................. 5 Data Logging....................................5 Main Menu..................................... 5 Data Snapshot..................................... Battery Status....................................5 Cellular Measurements................................... 6 Cellular Direction Finding................................ -
Page 3: Included In The Box
BVS sales engineer or reseller. Power up your Yorkie-Pro using the white, round button on the front of the unit just below the screen. The unit will immediately begin scanning but allow at least one minute after all anten- nae are attached for complete measurements of all nearby wireless energy. -
Page 4: Main Measurement
‘US’ indicates United States cellular bands will only be detected. Yorkie-Pro ships from the factory with country’s RF bands as indiacted by the customer but you can change to your country of choice in the Main Menu settings. -
Page 5: Yorkie-Pro Navigation Tree
Yorkie-Pro Navigation Tree Page 4... -
Page 6: Features And Navigation
Depending upon the screen being logged, the resulting data can be logged for a range of time. This data can then be downloaded from Yorkie-Pro to a PC for futher analysis in any standard spreadsheet application. Check with your BVS sales or support representative for more informa- tion. -
Page 7: Cellular Measurements
SMA antenna connection (650 MHz - 3000 MHz) on top of the Yorkie-Pro unit. As you sweep, the colored bar will guide you in the direction of the cellular signal source by lowering and raising accordingly. -
Page 8: Wi-Fi Measurements
Wi-Fi access points. This screen indicates MAC address, RSSI signal strength in dBm, 802.11 channel number and SSID of every 2.4 GHz and 5 GHz access point detected. Orange colored SSIDs indicate 2.4 Ghz and yellow SSIDs indicate 5 GHz. Yorkie-Pro will not detect any client Wi-Fi devices. -
Page 9: Wi-Fi Direction Finding
Replace the omni-directional antenna with the large, 2.4/5.8 GHz DF antenna by connecting to the SMA connector on the left side atop the Yorkie-Pro unit. BEGIN SCAN will continue to blink until you touch it. The Yorkie-Pro will now begin scanning. Point the direction finding antenna away from the unit and yourself and keep it parallel to the ground. -
Page 10: Bluetooth Measurements
BLUETOOTH MEASUREMENTS Starting from the MAIN MEASUREMENT screen, touch the Wi-Fi icon located on the bottom to scan all nearby Bluetooth and BLE (Bluetooth Low Energy) devices. This screen indicates MAC address, RSSI signal strength in dBm and device ID of every BT and BLE device detected. White colored device IDs (friendly names) indicate BT and light blue colored device IDs (friendly names) indi- cate BLE devices. -
Page 11: Bluetooth Direction Finding
Replace the omni-directional antenna with the large, 2.4/5.8 GHz DF antenna by connecting to the SMA connector on the left side atop the Yorkie-Pro unit. BEGIN SCAN will continue to blink until you touch it. The Yorkie-Pro will now begin scanning. Point the direction finding antenna away from the unit and yourself and keep it parallel to the ground. -
Page 12: Frequency Analysis
FREQUENCY ANALYSIS The FREQUENCY ANALYSIS screen can only be accessed from the MAIN MEASURMENT screen. It consists of 2 different panels that both scan the 2.4 GHz spectrum but do not display live data simultaneously. The orange panel on top is a frequency domain that scans 20 MHz chunks start- ing at the center of each of the (14) 802.11b/g channels. -
Page 13: Main Menu
MAIN MENU The MAIN MENU allows access to more of the Yorkie-Pro’s settings and information. These include alerts, RF scan persistence, GPS, battery status, country selection and unit information. VIBRATING ALERT Touch the VIBRATING ALERT checkbox to toggle vibrating alerts on or off. When vibrating alerts are turned on, the unit will vibrate everytime a set threshold is surpassed. -
Page 14: Battery Status
(AU), New Zealand (NZ), Israel (IL), Sweden (SW), Brazil (BR), Japan (JP), South Korea (KR), Chile (CL), India (IN) and Philippines (PH). Yorkie-Pro ships direct from the factory with support for the country designated by the customer. Check with your BVS sales or support contact for more details about support in your country. -
Page 15: Unit Information
UNIT INFORMATION Touch the UNIT INFORMATION button to access this screen for antenna assignments, firmware and your unit’s serial number. Be sure to reference these SMA connection assignments when attaching any antennas to your unit. Also be sure to reference this screen for the firmware and serial number for any sales or support related issues. -
Page 16: Dual Band Directional Pattch Antenna Specifications
Page 15... - Page 17 Page 16...
-
Page 18: Low Pim Directional Antenna Specifications
Page 17... - Page 19 Page 18...
- Page 20 Page 19...
-
Page 21: Omni Directional Ultra Wideband Paddle Antenna Specifications
Page 20... - Page 22 Page 21...
- Page 23 Page 22...
- Page 24 Page 23...
- Page 25 Page 24...
-
Page 26: Omni Directional 2.4/5.8 Ghz Antenna Specifications
Page 25... - Page 27 Page 26...
