Summary of Contents for AUDAC CHA530

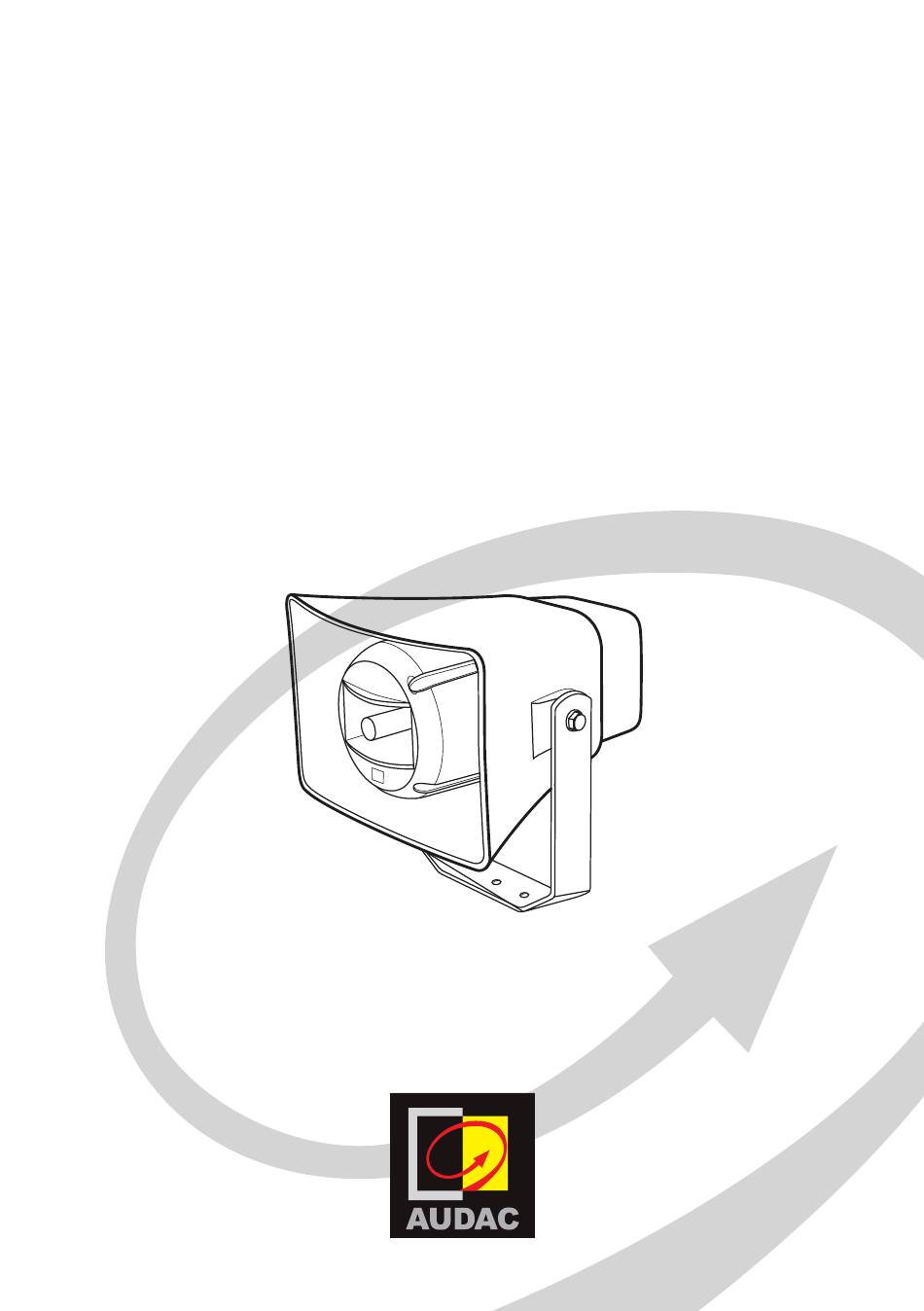

- Page 1 CHA530/660 User & Installation Manual www.audac.eu...
- Page 3 Introduction 2-Way Horn loudspeakers The CHA530/660 are 2-way horn loaded loudspeakers designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor ap- plications. Theconstruction is composed of a 1” high frequency compression driver and a mid/low frequency driver.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...
-
Page 5: Caution - Servicing
CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES. -
Page 6: Installing The Loudspeaker
Installing the loudspeaker The CHA530/660 horn loudspeakers are designed for use in 100 Volt public address systems. Before connecting the loudspeakers to the system, make sure the amplifier is switched off. A 5-pin waterproof AWX-5 connector is located on the rear cover of the speaker, allowing connection to the amplifier output using the included connection cable (AWC07) with a length of 0.7 meter. -
Page 7: Additional Information
Additional Information Technical specifications CHA530 CHA660 Max Power 60 Watt 120 Watt RMS Power 30 Watt 60 Watt Line Transformer Taps 30 Watt / 333 Ohm 60 Watt / 167 Ohm 15 Watt / 667 Ohm 30 Watt / 333 Ohm 7.5 Watt / 1.33 kOhm... - Page 8 Notes...
