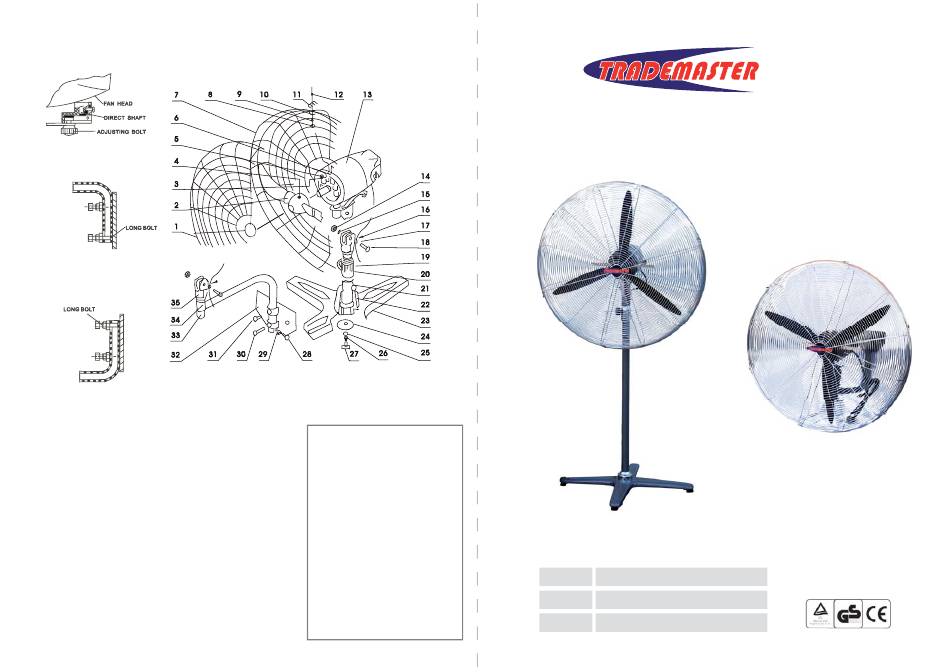

ASSEMBLING DIAGRAM
OSCILLATING CONTROL
UPWARD INSTALLATION
OF ANGLE ARM
DOWNWARD INSTALLATION
OF ANGLE ARM
18. BOLT
1.
FRONT GUARD
19. FIXING COVER
2.
BLADE
20. FIXING SCREW
3.
SCREW
21. SUPPORT
4.
BOLT
22. DECORATING COVER
5.
SPRING WASHER
23. PEDESTAL
6.
WASHER
24. WASHER
7.
BACK GUARD
25. WASHER
8.
NUT
26. SPRING WASHER
9.
SPRING WASHER
27. BOLT
10. GUARD CLIP
28. BOLT
11. GUARD CLIP
29. NUT
12. SCREW
30. BOLT
13. MOTOR
31. BOLT
14. NUT
32. WALL PLATE
15. WASHER
33. SUPPORT ARM
16. SCREW
34. FIXING SCREW
17. WIRING CLIP
35. LOWER CONNECTION
PEDESTAL FAN
ASSEMBLING ORDER
21→23→24→25→26→27→22
→19→20→13→18→15→14→7
→6→5→4→2→3→1→10→11
→12→9→8→17→16
WALL MOUNT FAN
ASSEMBLING ORDER
35→33→34→32→30→31→29
→28→13→18→15→14→7→6
→5→4→2→3→1→10→11→12
→9→8→17→16
INDUSTRIAL WORKSHOP FANS
TPF24
24" / 600mm PEDESTAL FAN
TPF30
30" / 750mm PEDESTAL FAN
TWF30
30" / 750mm WALL MOUNT FAN
READ CAREFULLY AND UNDERSTAND THESE INSTRUCTIONS BEFORE USE.
®
