Summary of Contents for SSCOR DUET 2314 Series

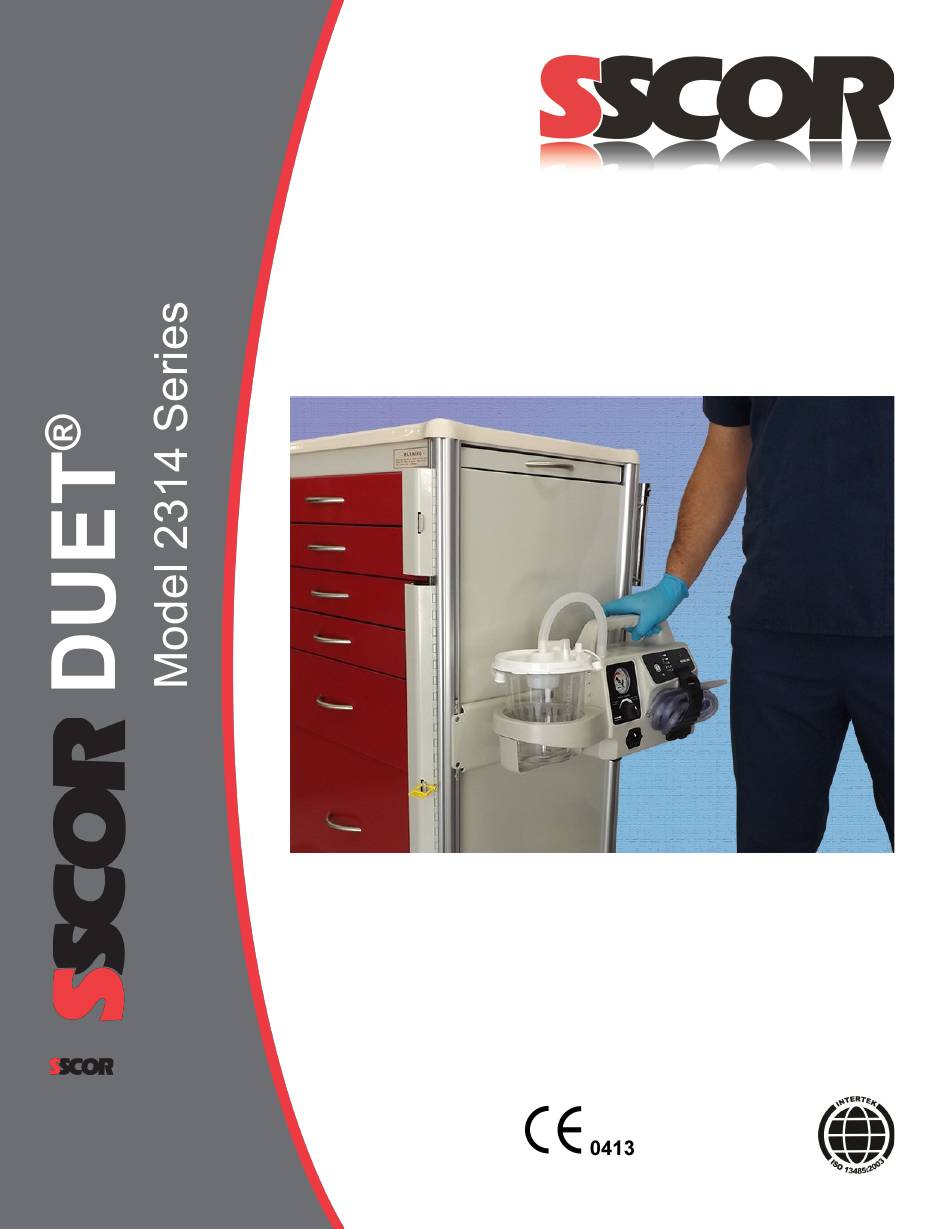

- Page 1 Clearing The Airway Is Our #1 Priority Operating Instructions & Maintenance Manual , INC. 11064 Randall Street Sun Valley, CA 91352 USA Tel 1+818-504-4054 www.sscor.com Tel 1+800-434-5211 shop.sscor.com Email: sales@sscor.com techsupport@sscor.com...
-
Page 2: Caution-Notice
Caution-Notice Revision Y (11/18) 1. SSCOR suction units are not designed or intended for use in extended procedures that require prolonged high vacuum/low airflow applications, as is the case in wound drainage or endoscopic use or in any other procedure that produces high vacuum levels within an occluded system for an extended period of time. -
Page 3: Table Of Contents
Model 2314 Series Battery Replacement Policy SSCOR will replace any SSCOR Duet battery which fails to operate the pump to specifications for a period of three years from the date of purchase. Verify the condition of the battery per the battery test on Page 6 in this Operations Manual. -
Page 4: Description Of Symbols
Green / Yellow LED = High Yellow LED = Half Control Panel Yellow / Red LED = Low Red LED = Battery Depleted Put device back on charge Control Panel Push On / Push Off SSCOR DUET - Model 2314 Series Rev Y (11/18) -
Page 5: Getting Acquainted
Make certain the circuit is properly fused according to appropriate vehicle standards. The vehicle electrical system will furnish power to both run the pump and charge the battery. See page 10 for additional information. SSCOR DUET - Model 2314 Series Rev Y (11/18) -
Page 6: Battery Test & Trouble Shooting
6. If the unit is still running at full power after 15 minutes, adjust the regulator to the desired setting, turn the device off and put it back on charge. SSCOR recommends replacement of the battery after 3 years. Replacement battery may be purchased at shop.sscor.com. -
Page 7: General Specification
Variable Regulator (7) Controls negative pressure Regulator Gauge (8) Calibrated in mmHg. Color-coded Power Source: Rechargeable Sealed Lead Acid. SSCOR part # 80635 Battery (DC Power) Medical Switcher (AC Power) 100V-240VAC, 47-63Hz Uses 1ea. 3A 250V fast acting fuse Switch (5) -
Page 8: Internal Access For Electrical And Pneumatics
(E) PC Board-Electrical Circuits (Internal Dual Mode Battery Charger). Do not attempt to service the PC Board. Return to SSCOR or authorized service center for service. (F) Power Supply. Do not attempt to service the Power Supply. Return to SSCOR or authorized service center for service. -
Page 9: Maintenance, Sanitation And Disinfection Instructions
Preventive Care Observe the following maintenance routine to ensure readiness at any time: 1. When the SSCOR aspirator is not in use, keep batteries on continuous charge. 2. Test the SSCOR aspirator at regular intervals; See page 6. 3. Make sure the SSCOR aspirator is always clean and ready for use. -
Page 10: Retention Bracket Mounting Instructions
The Model 8323 Charging/Retention bracket can be mounted by the base or mounted vertically in order to hold the SSCOR Duet portable suction unit. Mount the retention bracket to a suitable safe mounting surface so the indicator lights on the control panel are visible to the user. The unit is shipped ready to be mounted vertically, but if that does not fit your requirements, you can easily modify the unit to mount it by the base. -
Page 11: Preventive Maintenance
150mmHg and read the corresponding reading on the suction device gauge. The gauge on the suction device should be 150mmHg +/- 19mmHg or between 131mmHg – 169mmHg. If your gauge is out of calibration, you may need a new gauge (SSCOR Part #22006) or a new regulator and gauge assembly (SSCOR Part #22012-KIT2314). -
Page 12: Preventive Maintenance
LED on the control panel should light green when the device is plugged in and the battery is fully charged. If your device fails to meet any of these specifications or if you have any questions, call SSCOR technical support at 1-800-434-5211 or 1-818-504-4054.
