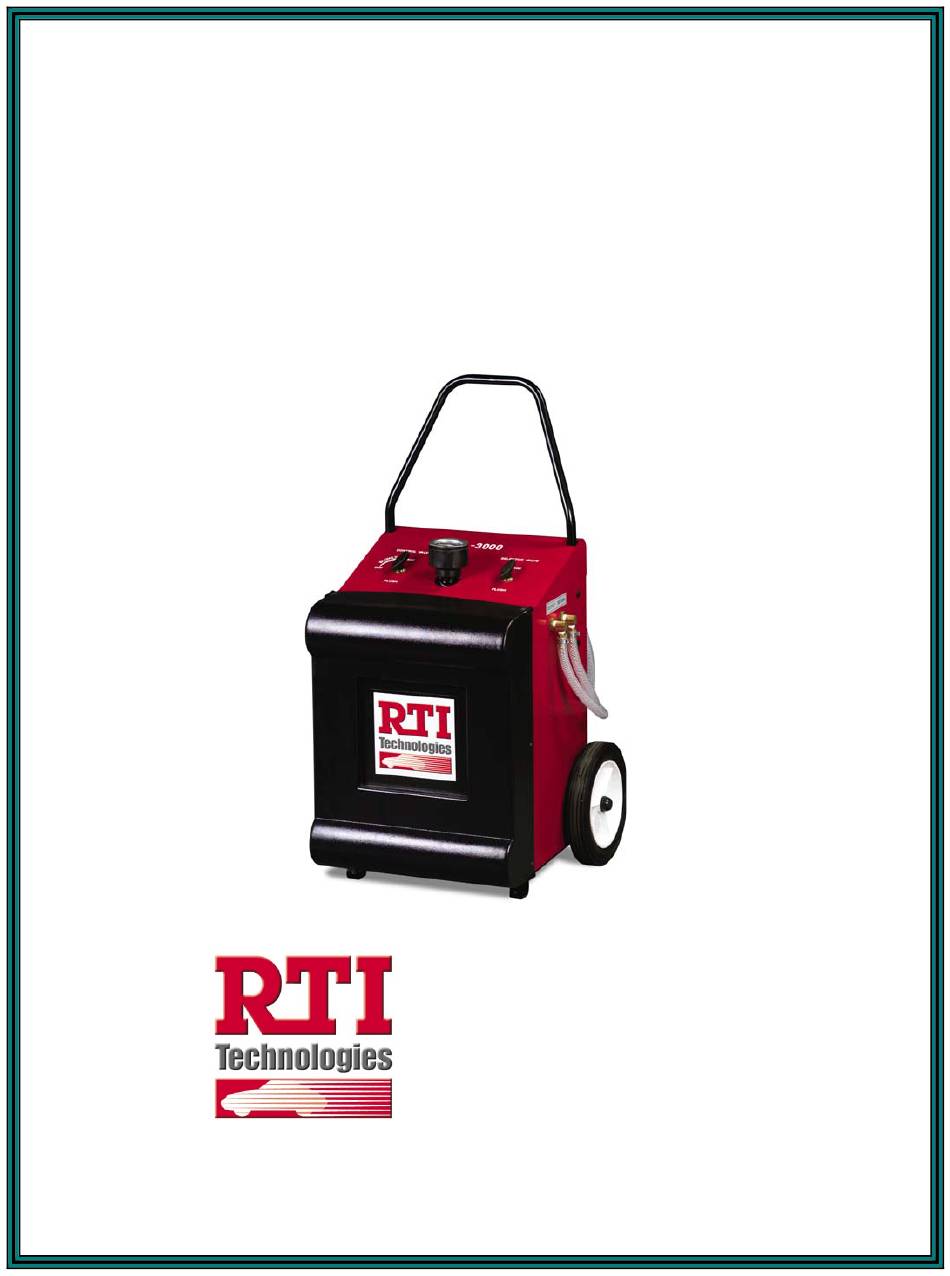

- Page 1 OPERATION MANUAL ACF-3000 Air Conditioner Component Flush RTI Technologies, Inc 4075 East Market St. York, PA 17402 800-468-2321 www.rtitech.com Manual P/N 035-80915-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Component Description ......2 Safety Precautions ......3 Adapter Instructions . -
Page 3: Component Description
Components Description Unpack all components and verify quantities per this illustration. Contact RTI if any items are missing. 4 Bolts & Nuts To Mount Handle Ground Strap Shop Air Coupler Charcoal Air Filter Coalescing Filter Drain Valve RTI Spin-on Filter Adapter List 1. -
Page 4: Safety Precautions
• Material Safety Data Sheets (MSDS) must be obtained on all chemicals and placed in a shop file for reference. Note: MSDS can be found on the RTI web site www.rtitech.com. CAUTION DO NOT allow the solvent to come in contact with any painted surfaces. In case of contact, immediately clean the surface with soap and water. -
Page 5: Adapter Instructions
Adapter Instructions Straight Adapter 1. Choose the appropriate size main bracket for the fitting on the vehicle. 2. Screw straight fitting (3) into selected bracket (4). 3. Select the proper neoprene seal (2) and place on fitting (3). Note: There are various size seals to cover all vehicle applications. -
Page 6: Flush
Flush Verify that both the RTI Spin-on Filter and the Coalescing Filter are installed. Turn the Control Valve to OFF. Remove the solvent filling cap and pour one gallon (3.6 liters) of RTI Flush Solvent into the ACF internal tank. Replace the solvent filling cap ACF 3000 when done. -
Page 7: Purge
Purge Slowly turn the Control Valve toward the SLOWLY position and observe the ACF 3000 discharge hose. Proceed to the next step when all of the liquid has been removed CONTROL VALVE SELECTOR VALVE from the hose . PURGE PURGE Slowly turn the Control Valve towards PURGE. -
Page 8: Empty Solvent Tank
SELECTOR VALVE Verify that the ACF is completely drained PURGE PURGE before continuing. Turn the Control Valve to OFF. FLUSH FLUSH At this point the RTI Spin-on Filter needs to be removed and replaced. (Refer to page 7) Page 7... -
Page 9: Spin-On Filter Replacement
RTI Spin-on Filter Replacement NOTE: The RTI Spin-on Filter should be replaced after each flushing procedure. This filter must be replaced with an RTI brand Spin-on filter. Locate the Spin-on Filter on the rear of the ACF. Turn the filter counterclockwise and remove it. -
Page 10: Charcoal Air Filter Replacement
Charcoal Air Filter Replacement The charcoal air filter element, located on the rear of the unit, should be replaced after every 25 flush and purge services. It may be necessary to replace the element sooner if the operator notices a stronger than usual odor emitted from the unit during the purge process. Turn the wing nut on the filter counterclockwise and remove the retaining plate. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Solution The flush solvent does not pump There is insufficient flush solvent in the supply tank. To fix this adequately through the unit, but problem simply add the correct amount to the ACF internal the pump action can be heard. solvent tank. -
Page 12: Parts Identification
Parts Identification Description 021-80174-00 Cap Plastic 2" FPT 022-80119-00 Ball Valve 3-Way ACF 3000 1/4 FPT (BHD) VITON CONTROL VALVE SELECTOR VALVE PURGE PURGE 021-80174-00 Steel Cap 2" MPT (With Rubber Washer) FLUSH FLUSH 026-80302-00 Replacement Charcoal Filter 026-80253-00 Spin-On Filter 305-80004-00 Ground Strap Assy 026-80300-00... -
Page 13: Flow Diagram
Flow Diagram Page 12...
