HYBRID SOFA INSTALLATION MANUAL

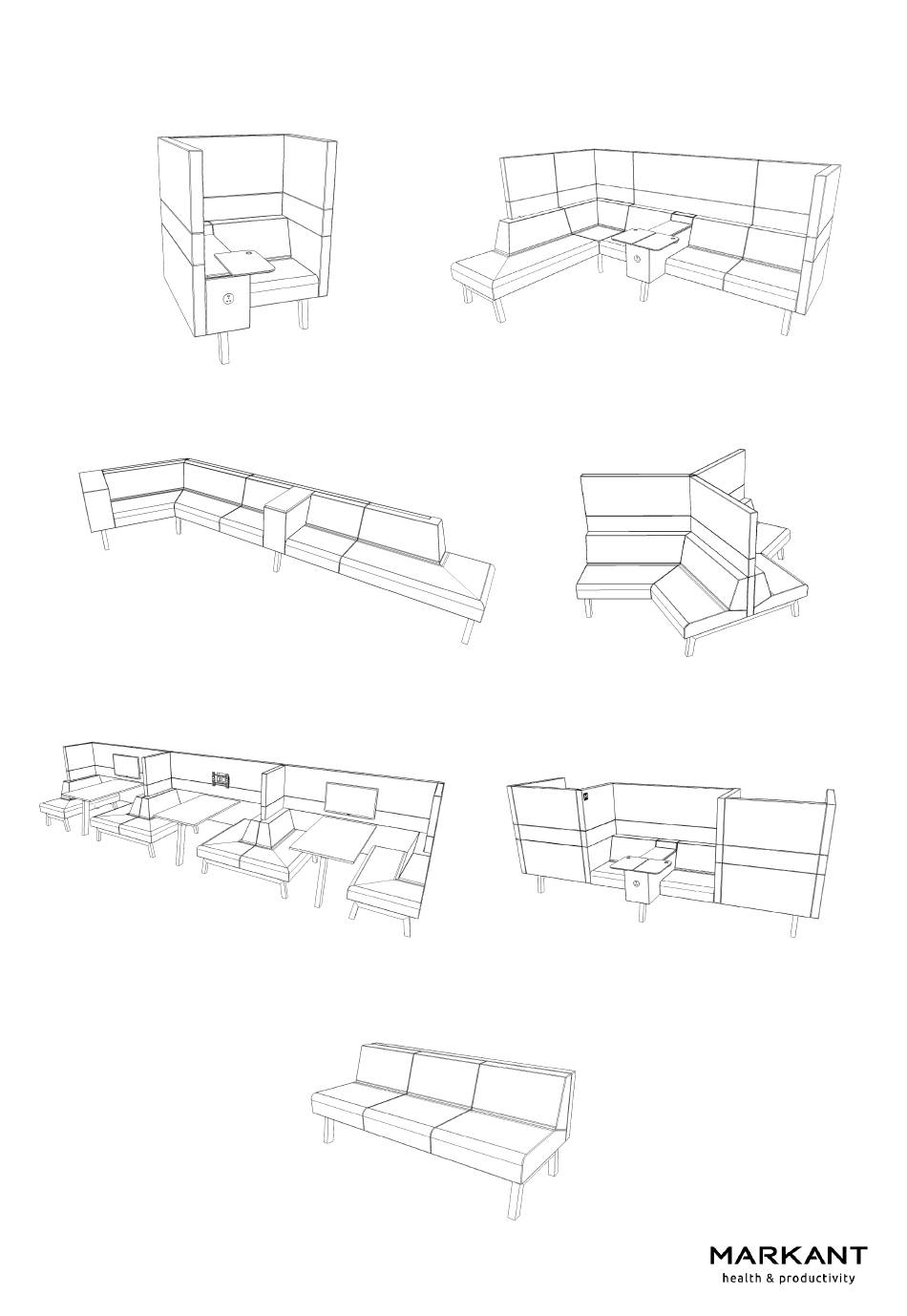

LAYOUT 1

LAYOUT 2

LAYOUT 3

LAYOUT 4

LAYOUT 5

LAYOUT 6

LAYOUT 7

Table of Contents

Need help?

Do you have a question about the HYBRID SOFA and is the answer not in the manual?

Questions and answers

Summary of Contents for Markankt HYBRID SOFA

Page 1 HYBRID SOFA INSTALLATION MANUAL LAYOUT 1 LAYOUT 2 LAYOUT 3 LAYOUT 4 LAYOUT 5 LAYOUT 6 LAYOUT 7...
Page 3: Table Of Contents
INDEX Chapter Page page 1 HARDWARE page 2-8 LAYOUT 1 page 9-17 LAYOUT 2 page 18-26 LAYOUT 3 page 27-31 LAYOUT 4 page 32-40 LAYOUT 5 page 41-53 LAYOUT 6 page 54-58 LAYOUT 7...
Page 4 HARDWARE *POWER TOOL, ALLEN KEY & LEVELER ARE NOT INCLUDED...
Page 5: Layout
HYBRID SOFA INSTALLATION LAYOUT 1 STEP 1: Screw in both side of the leg and beam supporter. STEP 2: Slot in the X-beam .
Page 6 HYBRID SOFA INSTALLATION STEP 3: Repeat Step 1 on the other leg installation. Insert in tapping screw on top of the longer leg. STEP 4: Slot in the other end of X-beam to the other leg.
Page 7 HYBRID SOFA INSTALLATION *Click this in to attach the seat. STEP 5: Snap in click fix seater to the X-beam. *Hook in sofa connector. STEP 6: Snap in click fix bizz class box to the X-beam.
Page 8 HYBRID SOFA INSTALLATION *swivel top installation STEP 7: Slide out the upper top before installing the swivel top. *tapping screw STEP 8: Install swivel top to the bizz class box by using a tapping screw to tighten it.
Page 9 HYBRID SOFA INSTALLATION STEP 9: Slide back in the upper top to complete the swivel top installation. *J-bracket STEP 10: Add in J bracket at the bottom of the seat.
Page 10 HYBRID SOFA INSTALLATION *Mushroom *Lockplate STEP 11: Insert back panel to the seater. Hook in lockplate to the mushroom. *Lockplate *Mushroom STEP 12: Hook in lock plate to connect side screen to the seater.
Page 11: Layout
HYBRID SOFA INSTALLATION *Lockplate *Screw J-hook *Mushroom STEP 13: Repeat Step 12 to connect side screen to the other end of the seater. Finally, screw and tighten the J-hook to the panel after all panels are placed. THE INSTALLATION FOR LAYOUT 1 IS COMPLETE.
Page 12: Layout
HYBRID SOFA INSTALLATION LAYOUT 2 Tighten set screw Tighten set screw Do not tighten set screw Do not tighten set screw STEP 1: Set up the frame (refer to layout 1) Connect X beam to the seat support connectors. STEP 2: Put in the first seater on the X beam.
Page 13 HYBRID SOFA INSTALLATION STEP 3: Snap in click fix to the X beam. The installation for the seat 1 is done.
Page 14 HYBRID SOFA INSTALLATION *Hook in sofa connector. STEP 4: Repeat step 2-3 to install seat 2. STEP 5: Repeat step 2-3 to install seat 3.
Page 15: Layout
HYBRID SOFA INSTALLATION STEP 6: Repeat step 2-3 to install seat 4 together with the swivel top (refer to layout 1 for swivel top installation). STEP 7: Repeat step 2-3 to install seat 5.
Page 16 HYBRID SOFA INSTALLATION *Hook in sofa connector. STEP 8: Repeat step 2-3 to install seat 6. *J bracket STEP 9: Add in J bracket at the bottom of each seat.
Page 17 HYBRID SOFA INSTALLATION *Mushroom *Lockplate STEP 10: Insert back panel to the seaters. Hook in lockplate to the mushroom. The installation for the back panel on seat 1 is done.
Page 18 HYBRID SOFA INSTALLATION STEP 11: Repeat step 10 to install back panel for seat 2. STEP 12: Repeat step 10 to install back panel for seat 3,4 and 5.
Page 19 HYBRID SOFA INSTALLATION STEP 13: Repeat step 10 to install back panel for seat 6. *Lockplate *Mushroom *Screw J-hook STEP 14: Hook in lock plate to connect side screen to seater. Finally, screw and tighten the J-hook to the panel after all panels are placed.
Page 20: Layout
HYBRID SOFA INSTALLATION * Push legs in as far as possible (until they hit the 'click-fix') and then tighten set screw at the end leg * Push legs in as far as possible (until they hit the 'click-fix') and then tighten set screw at the end leg THE INSTALLATION FOR LAYOUT 2 IS COMPLETE.
Page 21: Layout
HYBRID SOFA INSTALLATION LAYOUT 3 Tighten set screw Do not tighten set screw Tighten set screw Do not tighten set screw STEP 1: Set up the frame (refer to layout 1) Connect X beam to the seat support connectors. STEP 2: Put in the first seater on the X beam.
Page 22 HYBRID SOFA INSTALLATION STEP 3: Snap in click fix to the X beam. *Click fix STEP 4: Hook in lock plate and snap in click fix to connect side seat to seat 1.
Page 23 HYBRID SOFA INSTALLATION The installation for Seat 1 with side seat is done. *Hook in sofa connector. STEP 5: Repeat step 2-3 to install seat 2.
Page 24 HYBRID SOFA INSTALLATION *Hook in sofa connector. STEP 6: Repeat step 2-3 to install seat 3. STEP 7: Repeat step 2-3 to install seat 4.
Page 25 HYBRID SOFA INSTALLATION STEP 8: Repeat step 2-3 to install seat 5. *Hook in sofa connector. STEP 9: Repeat step 2-3 to install seat 6.
Page 26 HYBRID SOFA INSTALLATION *J-bracket STEP 10: Add in J bracket at the bottom of each seat. *Lockplate *Mushroom STEP 11: Insert back panel to the seaters. Hook in lockplate to the mushroom.
Page 27 HYBRID SOFA INSTALLATION The installation for the back panel on seat 1 is done. STEP 12: Repeat step 11 to install back panel for seat 2.
Page 28 HYBRID SOFA INSTALLATION STEP 12: Repeat step 11 to install back panel for seat 3-5. STEP 13: Repeat step 11 to install back panel for seat 6.
Page 29: Layout
HYBRID SOFA INSTALLATION *Tighten J-hook STEP 14: Insert wing single seater mid cover to the seaters. Finally, screw and tighten the J-hook to the panel after all panels are placed. *Wing single seater mid cover attach to the mushroom from the top.
Page 30 HYBRID SOFA INSTALLATION LAYOUT 4 *1 piece rubber pad STEP 1: Set up the frame (refer to layout 1) Connect X beam to the seat support connectors. Add in 5mm rubber pad on each seat support to fill up gap in between.
Page 31 HYBRID SOFA INSTALLATION *Hook in sofa connector. STEP 3: Snap in click fix wing seater to the X-beam. *J bracket STEP 4: Add in J bracket at the bottom of the seat.
Page 32 HYBRID SOFA INSTALLATION *Mushroom *Lockplate *Screw J-hook STEP 5: Insert back panel to the seater. Hook in lockplate to the mushroom. Next, screw and tighten the J-hook to the first panel. STEP 6: Repeat step 3-4 to install the next seater.
Page 33 HYBRID SOFA INSTALLATION *Mushroom *Lockplate *Screw J-hook STEP 7: Insert the last back panel to the seater. Hook in lockplate to the mushroom. Next, screw and tighten the J-hook to the last panel. STEP 8: Repeat step 3-4 to install the last seater.
Page 34 HYBRID SOFA INSTALLATION *Middle cover STEP 9: Add in middle cover. THE INSTALLATION FOR LAYOUT 3 IS COMPLETE.
Page 35 HYBRID SOFA INSTALLATION LAYOUT 5 STEP 1: Set up the frame (refer to layout 1) Connect X beam to the seat support connectors. STEP 2: Put in the first seater on the X beam. Snap in click fix to the X beam.
Page 36 HYBRID SOFA INSTALLATION STEP 3: Repeat step 2 to install seat 2. STEP 4: Repeat step 2 to install seat 3.
Page 37 HYBRID SOFA INSTALLATION *J bracket STEP 5: Add in J bracket at the bottom of the seat. *Lockplate *Mushroom STEP 6: Insert back panel to the seat. Hook in lockplate and mushroom.
Page 38 HYBRID SOFA INSTALLATION *Lockplate *Mushroom STEP 7: Hook in POD panel. STEP 8: Add in POD table top support.
Page 39 HYBRID SOFA INSTALLATION STEP 9: Install the POD table. STEP 10: Open hole for monitor bracket.
Page 40 HYBRID SOFA INSTALLATION STEP 11: Add in 32' TV. The installation for Configuration 1 in Layout 4 is done.
Page 41 HYBRID SOFA INSTALLATION STEP 12: Repeat step 1- 10 to duplicate Configuration 1. Place it side by side. *Lockplate *Mushroom *Dimension A STEP 13: Hook in POD panel by measuring Dimension A to connect side screen to both Configuration.
Page 42 HYBRID SOFA INSTALLATION STEP 14: Add in POD table top support. STEP 15: Install the POD table.
Page 43 HYBRID SOFA INSTALLATION STEP 16: Open hole for monitor bracket. STEP 17: Add in 32' TV. THE INSTALLATION FOR LAYOUT 5 IS COMPLETE.
Page 44 HYBRID SOFA INSTALLATION LAYOUT 6 STEP 1: Take out hybrid back panel for box or biz class double high.
Page 45 HYBRID SOFA INSTALLATION STEP 2: Put a block underneath to support.
Page 46 HYBRID SOFA INSTALLATION *Push this over to pull out the seats. STEP 3: Take out the left and right seat.
Page 47 HYBRID SOFA INSTALLATION *Unit 1 *Unit 2 STEP 4: Loosen 2 set screws from Unit 1 using allen key.
Page 48 HYBRID SOFA INSTALLATION *Unit 2 *Unit 1 STEP 5: Slide out Unit 1.
Page 49 HYBRID SOFA INSTALLATION *Unit 2 *Unit 1 STEP 6: Loosen 2 set screws from Unit 2 using allen key.
Page 50 HYBRID SOFA INSTALLATION *Unit 2 *Unit 1 STEP 5: Slide out Unit 2 and turn 180° the biz box with wooden leg.
Page 51 HYBRID SOFA INSTALLATION STEP 6: Connect back both Unit 1 and Unit 2 to the biz box and lock it.
Page 52 HYBRID SOFA INSTALLATION STEP 7: Put back the left and right seat after turning to 180 deg.
Page 53 HYBRID SOFA INSTALLATION *Gently press on the fabric surface. STEP 8: Gently press on the fabric surface on the panel and feel the hole before screw in the lock plate.
Page 54 HYBRID SOFA INSTALLATION STEP 9: Put back the duo back panel.
Page 55 HYBRID SOFA INSTALLATION STEP 10: Insert in Markant logo into the duo screen.
Page 56 HYBRID SOFA INSTALLATION THE INSTALLATION FOR LAYOUT 6 IS COMPLETE.
Page 57 HYBRID SOFA INSTALLATION LAYOUT 7 STEP 1: Screw in both side of the leg and beam supporter. STEP 2: Slot in the double X-beam.
Page 58 HYBRID SOFA INSTALLATION STEP 3: Slot in the other end of double X-beam to the opposite leg. *Click this in to attach the seat. STEP 4: Snap in click first fix seater to the double X-beam.
Page 59 HYBRID SOFA INSTALLATION STEP 5: Snap in click second fix seater to the double X-beam. STEP 6: Snap in click third fix seater to the double X-beam...
Page 60 HYBRID SOFA INSTALLATION *J-bracket STEP 7: Add in J bracket a tthe bototm of the seat. *Lockplate *Mushroom STEP 8: Insert back panel to the seater. Hook in lockplate to the mushroom.
Page 61 HYBRID SOFA INSTALLATION THE INSTALLATION FOR LAYOUT 7 IS COMPLETE.
