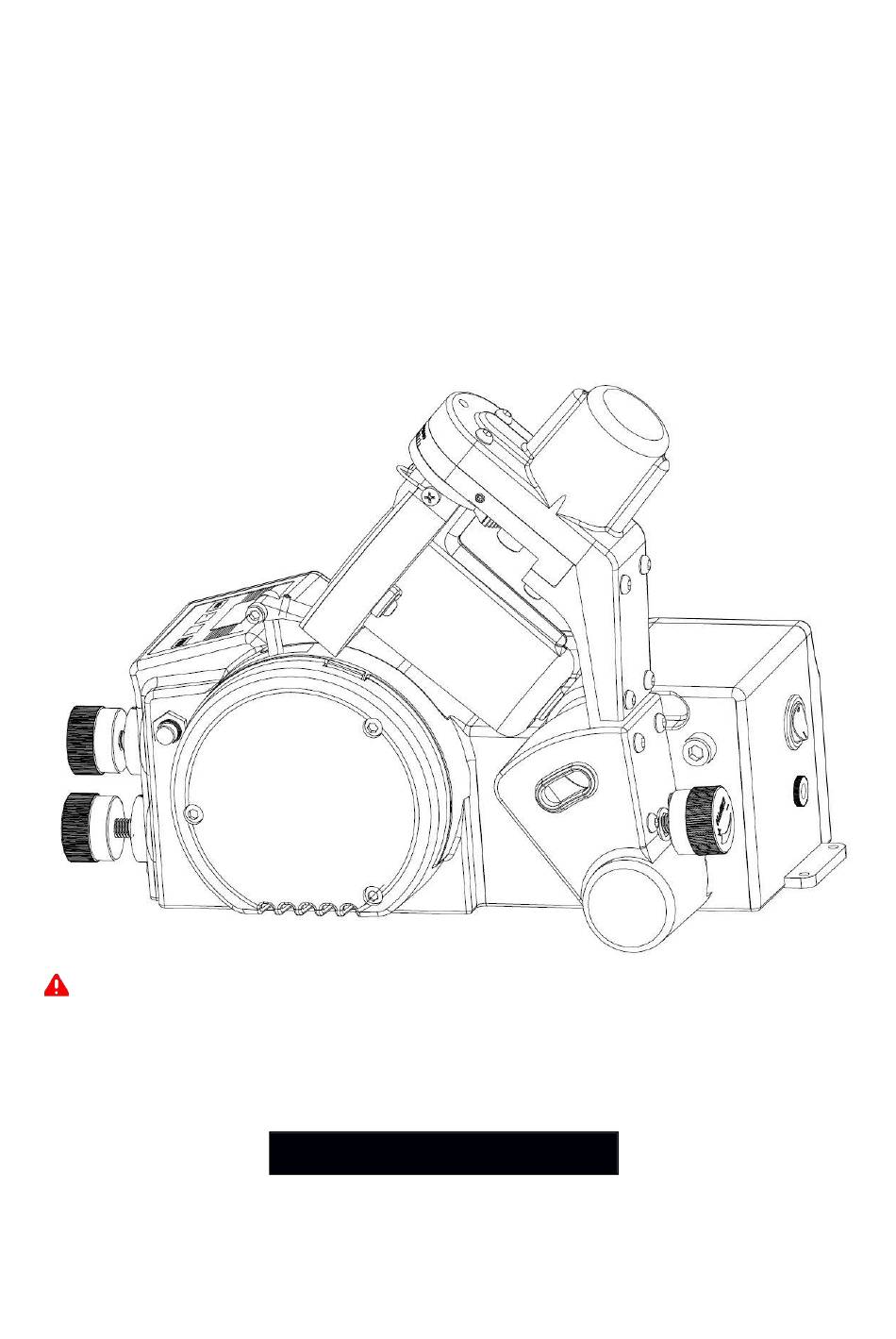

AUTOMATIC SHARPENER
FOR CHAINSAW CHAINS
ASSEMBLY & OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND
OPERATION INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Model # AS01
20180615
Thank you very much for choosing this product! For future reference, please complete the owner's
record below:
Model: AS01
Purchase Date: _______________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sumo AS01

  • Page 1 OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Model # AS01 20180615 Thank you very much for choosing this product! For future reference, please complete the owner’s...

  • Page 2: Intended Use

    Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it.  INTENDED USE This product is designed for certain applications only. The manufacturer cannot be responsible for issues arising from modification.

  • Page 3: General Safety Warnings

     SAVE THESE INSTRUCTIONS GENERAL WARNINGS  GROUNDING INSTRUCTIONS • All grounded, cord-connected tools: - This automatic sharpener is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 4 • WEAR APPROPRIATE APPAREL. Do not wear loose clothing, loose gloves, neckties, rings, bracelets or other jewelry. These may get caught in moving parts. Nonslip footwear is also recommended. Protective hair covering should be worn to contain long hair. • ALWAYS USE SAFETY GLASSES.
  • Page 5 • ONLY use a mild cleaner to clean plastic parts. • Do not use the automatic sharpener near any flammable liquids or vapors. • Protect the power cord from damage from oil or acid. • IMPORTANT: Observe all national safety regulations regarding installation, operation, and maintenance.
  • Page 6  SET-UP 1. Determine how many cutter teeth are on your chainsaw chain by counting the cutter teeth. 2. Select the number of teeth on your chain by momentarily pressing the “+” or “-“ buttons until the display shows the correct number of cutter teeth. 3.
  • Page 7 This sharpener is capable of disengaging the head’s rotation in order to take the rakers( depth gauge) down. The procedure to turn rotating functions on or off is as follows: 1. Press and hold “RESET” button for 3 seconds minimum. 2.

  • Page 8: Operation

     GRINDING WHEEL CHECK Check the wheel you are about to use for damage prior to installation. To avoid injuries and accidents only use grinding wheels that are free of defects. 1. Insert a pencil horizontally through the hole and allow the wheel to swing freely. 2.
  • Page 9 Vise Chain Pitch Gauge STIHL Depth Gauge OREGON CARLTON SANDVIK Angle 0.325" 0.050"/1.3mm 20LP 23RS 50JLG 25° 0.025"/0.63mm 0.325" 0.058"/1.5mm 21LP 25RS 58JLG 25° 0.025"/0.63mm 0.325" 0.063"/1.6mm 22LP 26RS 63JLG 25° 0.025"/0.63mm 0.325" 0.050"/1.3mm 20BP 23RM 30° 0.025"/0.63mm 0.325" 0.058"/1.5mm 21BP 25RM 30°...

  • Page 10: Maintenance

     MAINTENANCE Maintain your automatic sharpener for chainsaws. It is recommended that the general condition of the electric sharpener be examined before each use. Always disconnect the plug from the socket before carrying out any maintenance, lubrication, or cleaning operations. The automatic sharpener must be kept clean, in order to make safety instructions and plates clearly legible.
  • Page 11 If the grinding head is not centered on the chain guide, adjust the grinding head per below procedure. 1. Remove plastic guard on the back of the grinding head arm 2. Loosen set screw. See figure 3 Remove plastic guard Loosen set screw Figure 3...
  • Page 12 Grinding head is centered on the chain guide Figure 5 4. Tighten set crew and reinstall plastic guard...

  • Page 13: Diagram & Parts List

     DIAGRAM & PARTS LIST...
  • Page 14 For technical questions and/or replacement parts please call 218-943-6290.
  • Page 15 Part Part Description Model Description Model Motor Cover Advance Arm Bolt M4X20 Spring 15MM Bolt M4X15 Lock Board Angle Motor LT37GB60-3324 Bearing Lock Nut Bolt M3X8 Bearing 61900 Bolt M3X35 Soleplate M4X35 Bolt M4X12 Lock Pin Bolt M4X10 Bolt M8X5 Bolt M3X10 Socket...
