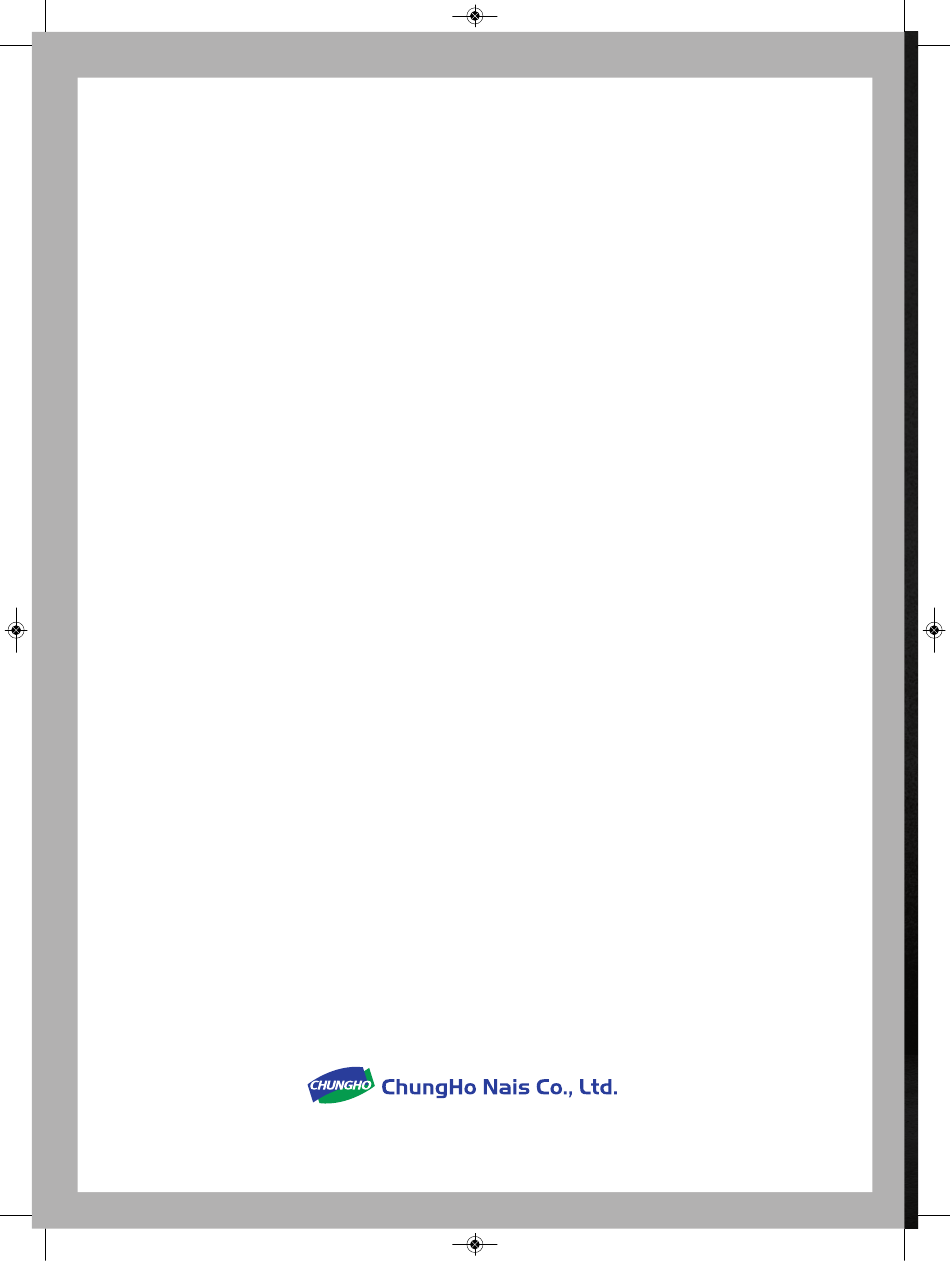

- Page 1 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 1 2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI, GYEONGGI-DO, KOREA (P.O.BOX: 420-800) TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr Rev,No.00...
- Page 2 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 2 http://eng chungho co kr The world’s first Water purifier with coffee and ice maker User's manual HP - 5230S ✽Design and color may differ from the picture. ✽Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance.
- Page 3 24 hour natural water circulation system(N.W.P.W) ChungHo Nais purification system is designed to allow water to continuously flow for 24 hours within the water purifier by adopting a natural circulation method. This mode, entitled N.W.P.W. applies the natural weight of water pressure in order to always supply clean and fresh water.
-
Page 4: Table Of Contents
Greetings 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 4 We greatly appreciate your purchase of WHI CAFFE. The unit is manufactured according to standard specification, and produced with a reliability test on all integrated components. The system is tested thoroughly on strict quality guidelines including temperature, moisture, shock, dust, vibration, drop, etc. -
Page 5: Safety Precautions
Safety precautions 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 5 Cautions are divided into 2 categories :‘Danger’and ‘Caution’ Danger Associated with the possibility for serious injury or death. When the power cord has ● been damaged, change the power cord in order to pre- Keep the cord out of heavy ●... -
Page 6: Safety Precautions 03~06
Safety precautions 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 6 Caution Associated with the possibility of injury, property damage and reduced performance of unit. While coffee is extracting, ● Do not try to extract coffee ● never try to separate or tea without cup. - Page 7 Safety precautions 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 7 Caution Associated with the possibility of injury, property damage and reduced performance of unit. When taking ice, avoid using ● When taking ice, place a a glass cup and avoid taking ●...
- Page 8 Safety precautions 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 8 Caution Associated with the possibility of injury, property damage and reduced performance of unit. To disconnect the unit, be ● After installation, arrange the ● sure to pull by the plug and power cord so that it will not not the cord.
-
Page 9: Names Of Each Part
Names of each part 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 9 Ice/Water full display ICE/LOCK setting touch button Hot water/Power saving touch button Power button for extract Espresso selection button Americano selection button Tea selection button Capsule holder Drip tray Warm water dispensing Drain switch touch button... - Page 10 Safety precautions 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 10 Do not install the product at the following places. •Near fire or heater •Near flammable material •Wet place ITALIAN CAPSULE COFFEE ITALIAN CAPSULE COFFEE WHI CAFFE WHI CAFFE •A place exposed to rain or snow •A place exposed to direct sunlight •Near chemicals(volatile material, organic solvent, etc.) 。...
-
Page 11: Installation Cautions
Installation cautions 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 11 When connecting tube, ensure that the tube is not bent or pressed down by ITALIAN CAPSULE COFFEE ITALIAN CAPSULE COFFEE WHI CAFFE WHI CAFFE heavy objects, etc. ※If tube is bent or pressed, water does not flow well and can cause problems. Adjust the tubes so that brine water and drain water may not splash around area. -
Page 12: Installation Method
Installation method 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 12 Install horizontally. ITALIAN CAPSULE COFFEE ITALIAN CAPSULE COFFEE WHI CAFFE WHI CAFFE Shut off water supply valve and separate the connector part of tap water in order to connect an adapter(source water valve). Then, connect the adapter. -
Page 13: How To Extract Coffee And Tea
How to extract coffee and tea 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 13 Display and capsule extract button Turns ON/OFF the extract Power/Warm-up button function Power/Warm-up Lights up when it is set. button LED Used to extract the Espresso extracting espresso. -
Page 14: Extracting Coffee And Tea
How to extract coffee and tea 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 14 Extracting coffee and tea Power button Press "POWER" to turn on the unit before extracting Espresso/Americano/Tea. POWER LED is blinking while heating water to extract. Espresso Press "ESPRESSO"... -
Page 15: Using Coffee And Tea Extract Method
Using coffee and tea extract method 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 15 ① Press“POWER” ※ POWER LED blinks as red for maximum 40 seconds. ※ After warm-up completion, LED lights with beep sound. (Sound : Ding-Ding-Ding) ② Pull out capsule holder. ③... -
Page 16: Descaling Coffee Outlet
Using coffee and tea extract method 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 16 ⑦ Extracting is completed with beep sound. (Sound : Ding-Ding-Ding) ⑧ Remove capsule and water in capsule holder. ※ Extracting can generate small amount of water in capsule holder under normal operation. -
Page 17: Coffee Recipe
Coffee recipe 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 17 ※ 1 shot means a cup of extracted espresso. Menu Recipe Ingredients : Espresso arabica 100(1 shot) + Ice(10 cubes) + Water(100 ml) Iced Americano ① Fill the glass with chilled filtered water and ice. ②... -
Page 18: Operation
Operation 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 18 Display and function settings (A) Detects a light density of around the unit. Light detection Hot water system is automatically ON/OFF in accordance with light density. (This func- sensor tion is valid only when "ECONO" is on.) Lights up when ice storage is full. -
Page 19: Usage
Usage 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 19 Operation beep sound ※A beep sound following operation of the Whi cafe Section BEEP Remarks/Occurrence Power ON Ding~Dong~Daeng~ Once Key input Ding~ Once ICE/LOCK setting Ding~Ding~Ding~ Once ICE releasing Ding~ Once Water dispensing start Ding~ Once... - Page 20 Usage 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 20 •HOT/ECONO function is available only when LOCK is released. Hot water operation setting 2 SECONDS ① Press "HOT/ECONO" for 2 seconds. ② Press the button until "HOT" LED(Red) is turned on. ③...
-
Page 21: Ice And Water Dispensing Method
Usage 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 21 Ice and water dispensing method Ice dispensing mode If "ICE"(ice dispenser) touch button is pressed, the door of the ice storage is opened and ice is served from the dispensing hole. ※If "LOCK"... -
Page 22: Smart Cleaning Function
Usage 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 22 Smart cleaning function It is the smart cleaning function that prevents contamination by automati- cally cleaning the tank every 15 days, when frequency of use is low. • It operates same time every 15 days, as it is set the standard time which is 12 hours later after connection of power. -
Page 23: Usage Safeguards
Usage safeguards 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 23 Refer to the voltage on the front page. Connect to the proper power source. Keep the cord out of heavy traffic areas. (This can lead overheating to outlet.) Never move the unit while in operation. (It can cause a malfunction.) Do not touch the wire condenser on the rear side of unit. -
Page 24: Cleaning
Cleaning 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 24 Ice dispensing spout ① Push both sides of spout and separate it from the body. ② Separate rubber cap from ice dispensing spout and clean them. ③ After cleaning, put the rubber cap back into ice dispensing spout and insert it by pressing both sides of spout. -
Page 25: Water Tank
Cleaning 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 25 Water tank ① Shut off the source water valve and turn the drain switch on the back of unit ON. ② Loosen screws (2ea) beneath of the lower front cover and separate the lower front cover. - Page 26 Cleaning 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 26 ⑦ Insert the lower front cover properly and then assemble in a reverse way. ⑧ Turn the drain switch on the back of unit OFF. ⑨ Open source water valve. ⑩ Plug in. ⑪...
-
Page 27: Capsule Holder
Cleaning 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 27 Capsule holder Clean up the capsule holder with soft cloth or sponge with running water every day. Coffee outlet packing Separate the capsule holder to clean up the inside of coffee outlet packing with soft cloth or clean towel frequently. -
Page 28: Maintenance
Sanitary maintenance Maintenance 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 28 Details Details Section Section Location Location - The unit can be installed at low water pressure place within water quality range. - The unit can be installed at low water pressure place within water quality range. <Do not install the unit in places below>... -
Page 29: Filters
Fliters 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 29 Filter function T-Pre-carbon filter It is made from high temperature processed carbon. it absorbs and eliminates dis- solved pollutants(such as chlorine, THMs and organic chemical contaminants), so it protects the membrane filter and helps it function work properly. T-Membrane filter It removes dissolved pollutants.(a molecular weight over 200, such as heavy met- als, bacteria and organic chemical contaminants) through RO filtration using a... -
Page 30: Replacement 28~29
Replacement 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 30 ① Shut off the source water valve and turn the drain switch on the back of unit ON. ② Loosen screws (2ea) beneath of the lower front panel and separate the lower front panel. - Page 31 Replacement 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 31 ⑨ Open source water valve. ⑩ Plug in. ⑪ Check if cold / ambient water are served after 60 minutes. ※ Check for water leakage. If it is found, turn off the unit and shut down source water valve. ※...
-
Page 32: Specification
Specification 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 32 Unit name Whi Caffe Model name CHP-5230S Rated voltage Refer to the front page External dimension 14.1W x 16.7D x 51.9H (inch) (360W x 426D x 1320H (mm)) Cold water 130 W (1A) Hot water 500 W Power... -
Page 33: Flow Diagram
Flow diagram Recommended replacement part 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 33 CHP-5230S 시스템 흐름도 Sub tank Water level sensor Coffee extract Ambi tank machine Coffee Oulet Water dispense Hole Cold tank Cold water inflow SOL V/V 3 WAY SOL V/V Ice storage Water leakage... -
Page 34: Troubleshooting
Troubleshooting 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 34 Symptoms Check points Request follow-up service When the display Is the power plug Insert the power plug into when you still have is not turned on inserted properly? problem as the power wall outlet properly. - Page 35 Troubleshooting 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 35 Symptoms Check points Set "HOT"(hot water operation) Is "HOT" Wait until the hot water by touching "HOT/ECONO" (hot water operation) is on? tank becomes hot enough. touch button. Have you taken hot water Wait until the water level of Americano is not more than 0.5G (2ℓ...
-
Page 36: Memo
Memo 커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 36...
