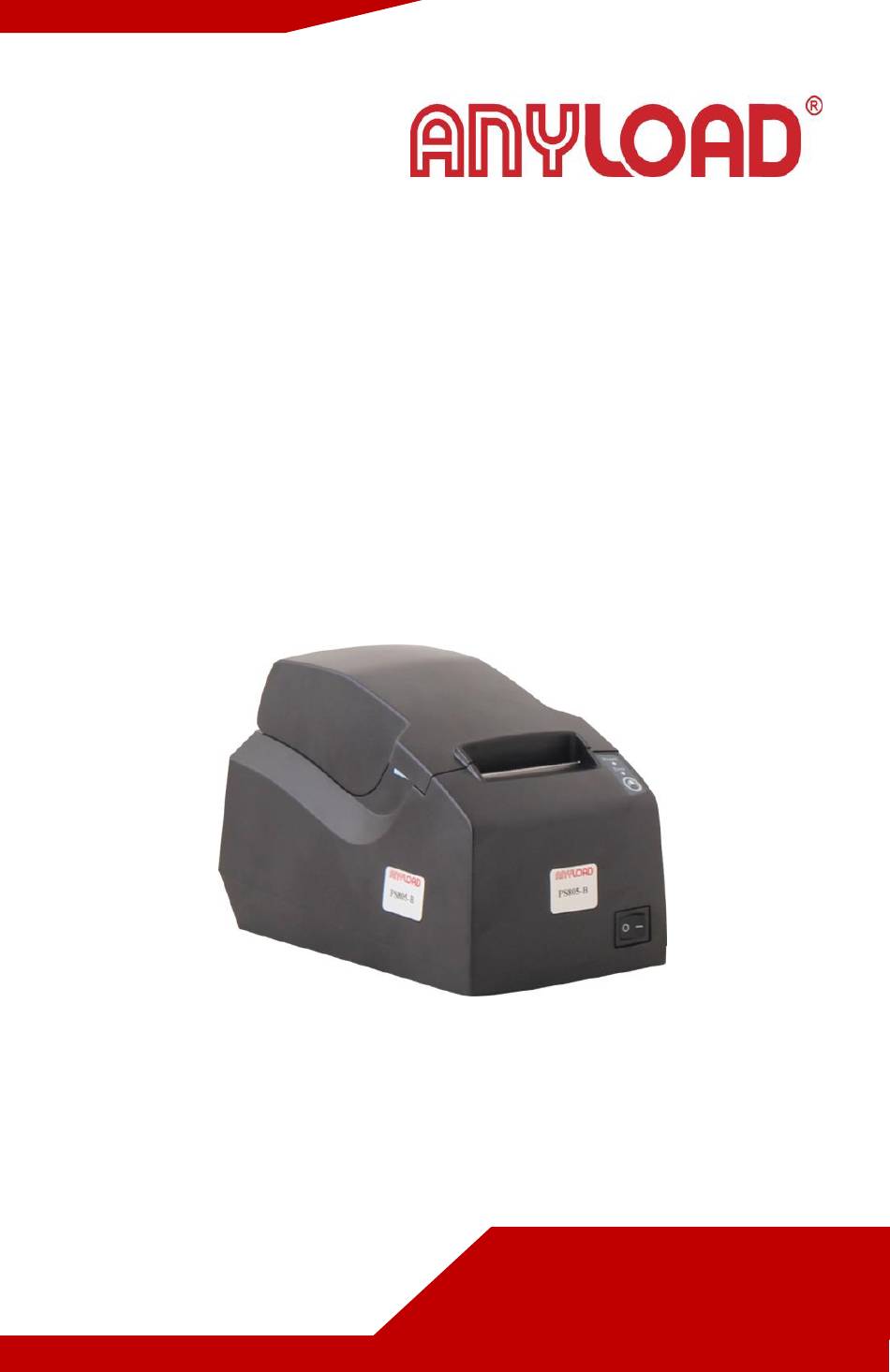

  • Page 1 PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 2: Table Of Contents

    6.2 Possible Causes the Error LED will light on 6.3 Printing & Tearing off Position 7. Specifications 8. Communication Interface 8.1 USB 8.2 Cash Drawer Ethernet 8.3 SERIAL (DB-9) 8.3.1 Connect to 805TS/805BS ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 3: Introduction

    Introduction Thank you for choosing the Anyload PS805-B Thermal Receipt Printer. This thermal printer works with Anyload 805BS and 805TS general purpose weighing indicators. A user-friendly, plug and play, low-noise thermal printing, easy roll paper installation, easy paper jam clearance and easy maintenance for tasks such as head cleaning and thermal line printing method.

  • Page 4: Main Features

    * Easy paper-roll installation. * Easy paper jam clearance. * Easy maintenance for tasks such as head cleaning * Works with Anyload 805TS and 805BS Weighing Indicators Before You Start 4.1 Checking What’s in the Box PS805 Thermal Receipt Printer...

  • Page 5: About The Printer

    4.2 About the Printer Connecting the Power Supply ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 6: Opening The Printer Cover

    4.5 Installing the Roll Paper  Open the printer cover  Remove the used roll paper, if there is one  Install the roll paper in the correct direction as shown in the figure below ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 7: Maintenance

    5. Check if the print out has improved. 6. Repeat the above steps if necessary. If the problem persists, contact your technical support. ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 8: Cleaning The Paper Scraps

    5.3 Handling the Printer Use both hand to hold the base Never lift by holding the top cover Operating the Printer 6.1 Keys & Indicators on Front Panel Power LED Error LED Feed Button ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 9: Possible Causes The Error Led Will Light On

    Print Speed: 100mm/second Printer Power Input: DC12V, 2A Working Environment: 0~40°C; 20~85% RH Storage Environment: -20~70°C; 5~95 RH% Reliability (MCBF): 100km TPH Life Dimensions: 114 (W) X 186 (D) X 128 (H) mm ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)

  • Page 10: Communication Interface

    8.3 SERIAL (DB-9) The PS805-B can also be connected directly to a PC using this DB-9 serial interface. This is the interface to be used to connect this printer to Anyload’s top of the line weighing indicators like 805TS, 805BS, 805HP and DD-KC1.

  • Page 11: Connect To 805Ts/805Bs

    The TXD signal from indicator goes to the RXD of the printer and the TXD signal from printer goes to the RXD of indicator. Use the GND to complete the connection. 10 | ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)
  • Page 12 ANYLOAD Weigh & Measure Inc. Website: www.anyload.com Email: info@anyload.com Fax: +1 866 612 9088 North America Toll Free: 1-855-ANYLOAD (269 5623) 11 | ANYLOAD PS805-B Thermal Receipt Printer User’s Manual (V1906)
