TRC 13S CCD
Operating and
Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRC 13S CCD and is the answer not in the manual?

Questions and answers

Summary of Contents for Teleco TRC 13S CCD

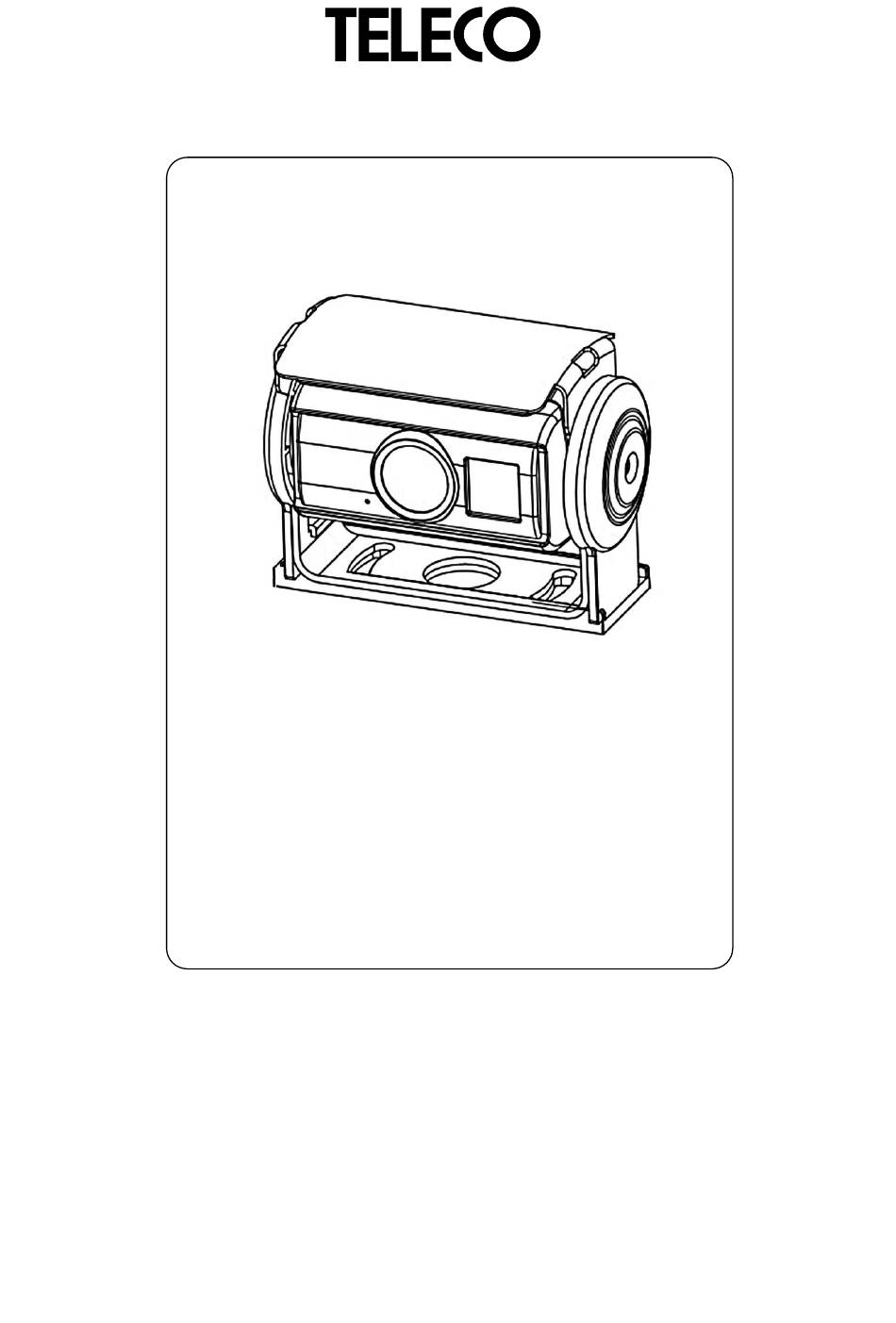

  • Page 1 TRC 13S CCD Operating and Installation Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety &Installation Instructions ................Scope of Delivery ….................... Technical Information..................Camera Installation ….....………………………………......Camera connections ................... Specifications....................... Wiring Diagram....……………..............Safety and Installation Instructions • Observe safety instructions from the vehicle manufacturer! • In the following cases no liability for damage will be accepted: –...
  • Page 3: Scope Of Delivery

    Scope of delivery (1) TRC 13S CCD Color Camera (2) Camera bracket (3) Sliding covers, at the side (4) Connection cable (5) Fastening Material * Specifications change without prior notice ( 4 ) Connection cable 20m ( 5 ) Fastening materials...
  • Page 4: Technical Information

    Technical Information • The camera is built inside aluminium housing • The camera transmits images and sounds via a connection cable to a monitor. • The camera transmits images to the monitor that are the same as the rear view in the driver’...
  • Page 5: Camera Installation

    Warning: • If installation of the camera alters the vehicle‘s height or length, the vehicle must be inspected by the appropriate authorities. • When installing the camera, it must be secured so that it cannot, under any circumstances, fall off and injure bystanders. Camera Installation •...
  • Page 6 Camera Installation Camera installation using self- tapping screws • Self-tapping screws may only used if the steel panels are of a minimum thickness of 1.5mm. • Attach the camera holder a the chosen location. • Mark at least two different points for the drill holes. •...
  • Page 7: Camera Connections

    Camera Installation Camera assembly • Push the camera into the camera bracket. • Fasten and center the camera and camera guardusing four M3x8mm screws in the slots in bracket (A). • Align the camera so that the lens is at an angle of approx. 50°to the perpendicular axis of the vehicle (B).
  • Page 8: Specifications

    Specifications • Dimensions (with bracket): approx. 106x54x68mm (WxDxH) • Power supply: approx. 1.8W with heater • Operating voltage: 11-16DC • Picture sensor: 1/3“ Sony CCD • Resolution: 300.000 pixels • Light sensitivity: 1lux or 0 lux with LED • Operating temperature: -20°...
  • Page 9: Wiring Diagram

    Wiring diagram 1 Monitor 8 6-pin Mini DIN waterproof Plug 2 13-pin socket 9 Cable (green) control input, connection to reversing lights 3 Connection Cable 10 cable (white) trigger line, side camera 4 13-pin DIN-plug 11 6-pin Mini DIN waterproof plug 5 12-V positive cable (red), connection to positive pole of voltage source 12 20m cable...
  • Page 10 Wiring diagram 1) Navigator GPS Teleco M-DVD5566 TRUCK 7) Red: positive pole (12 Vcc) 2) Rear camera connector 8) 20 m cable 3) Connection cable 9) Rear camera 4) Video connector 10) Audio (do not connect) 5) Black: negative pole 11) Blu: Connect to the reverse line of the vehicle.
  • Page 11 Certification This products has the E11 certification • DISPOSAL • Place packing material in the appropriate recycling waste bins wherever available • If you need to scrap the device, ask the local recycling centre or specialist dealer for details about how to do this in accordance with the applicable waste disposal regulations...
  • Page 12 RoHS 08_02_2016 Made in China...
