Summary of Contents for Johansson 5951
- Page 1 User Manual Remote Management Unit Ref. 5951...
-
Page 2: Table Of Contents
RMU (REF. 5951) ONTENTS 1. I ................3 NTRODUCTION Product description ..................3 Package contents .................... 3 Safety Instructions ..................4 2. I ............ 5 NSTALLATION OF THE HARDWARE Status LED (2 COLORS) ................... 5 Reset Button ....................5 Conditions to make a successful connection............5 Connecting to the RMU .................. -
Page 3: Introduction

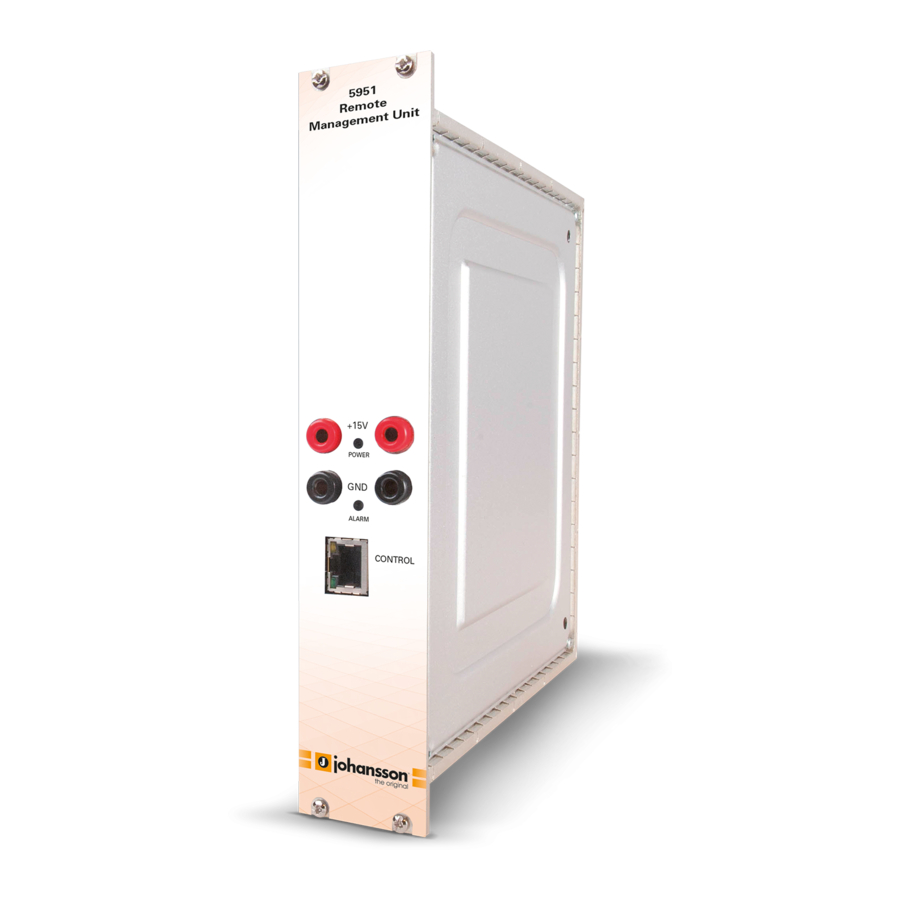

RMU (REF. 5951) 1. I NTRODUCTION Product description The Remote Management Unit (RMU) enables any authenticated user to configure or monitor a DMH headend remotely. The RMU is a very smart and powerful solution which connects with a server hosted by us (uCloud) and enables you to connect to any of your installations with any PC or Internet-connected device. -
Page 4: Safety Instructions
RMU (REF. 5951) Safety Instructions Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: • Do not expose the unit to rain or moisture. • Install the unit in a dry location without infiltration or condensation of water. -
Page 5: Installation Of The Hardware
RMU (REF. 5951) 2. I NSTALLATION OF THE HARDWARE Before mounting, install all DMH modules in the sub-rack. Place the power supply (ref. 5050) in the uppermost left slot of the rack and the RMU in the next slot. Connect LAN to the control port and both DC bridges to the RMU. -
Page 6: Configuration Of U Cloud
RMU (REF. 5951) • If you don’t have an internet connection you will need to connect both your pc and the RMU to the same network. To connect to the RMU open your web browser and go to http://rmu:8888 or the URL http://<RMUIPAddress>:8888 (change <RMUIPAddress> to the IP of your RMU). -
Page 7: Technical Specifications
RMU (REF. 5951) 4. T ECHNICAL PECIFICATIONS 5951 – RMU GENERAL Dimensions 5RU x 8TE x 180 mm Temperature (ambient) within specs °C +10 to +40 Operation °C -20 to +50 Storage °C -20 to +70 Power supply voltage 12 to 15... -
Page 8: Conditions Of Warranty
RMU (REF. 5951) 5. C ONDITIONS OF WARRANTY Unitron N.V. warrants the product as being free from defects in material and workmanship for a period of 24 months starting from the date of production indicated on it. See note below.
